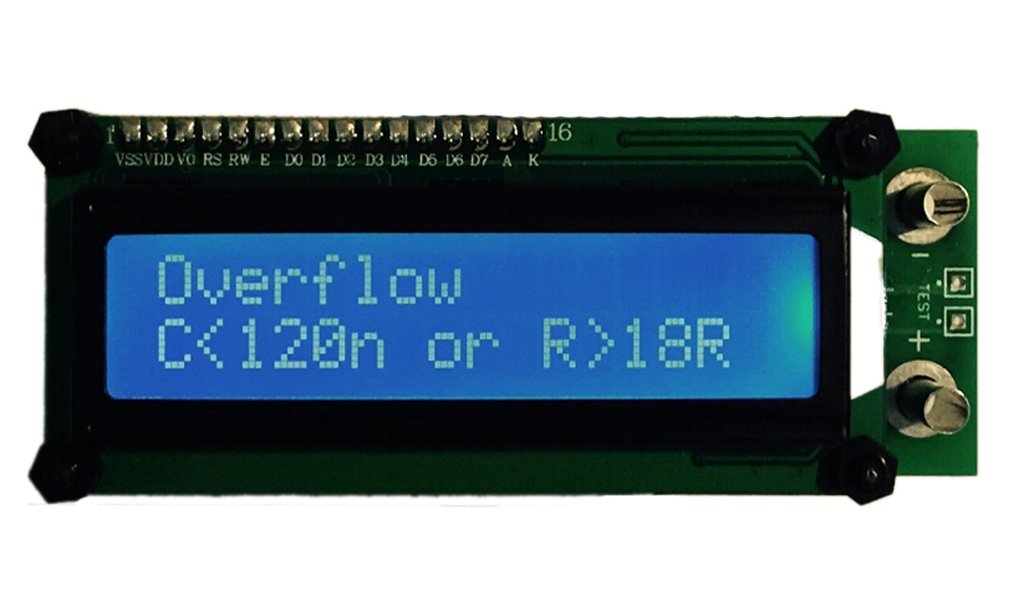

Bside ESR Capacitance Capacitor Tester Resistance Meter Inductance Multimeter USB Power Supply/DC 5V
Share Tweet
of brand new stock?
or
Need this item ASAP?
Check if this is available on Amazon
or available in other sites
Send us the link so we can buy for you
Bside ESR Capacitance Capacitor Tester Resistance Features
-
Dual Mode Power Supply: 9V/6F22 battery or USB power supply (universal DC5V power adapter)
-
Dual Mode Test Frequency: Testing the component parameters with 3K/72K Hz signals at the same time
-
Plug-in component test by the input on the main board, SMD component test by metal socket
-
Power on/off, function switch and Auto range by only one switch button, easy use, fast test speed
-
Dual dispaly angle
About Bside ESR Capacitance Capacitor Tester Resistance
Overview 1, using SCM port directly synchronous detection, single chip to generate square wave signal measurement and precision of the synchronization signal 2, using a method similar to LCR digital bridge detection.After the 90 phase synchronous detection, obtain the capacitance. Electrolytic capacitor used frequency method to measure the capacity, extends the measurement range. 3, to solve nonlinear problems of constant resistance of encouragement, the square wave response of RC series expansion, and series prior two calculation of Rs and Cs,greatly improving the measurement accuracy of 2uF following high Q CBB capacitors 4, the application of over sampling technique, use the12 bit AD converter , so just one range can achieve 0.01 to 20 ohm measurement. 5, with automatic constant zero function, zero driftreduction decimal zero, ensure the long time stable. 6, to join the temperature drift compensation circuit, which makes the detection circuit structure is close to the bridge circuit, temperature drift is very small. Measurement conversion of 7, only one button for ESR and the inductance and power switch. Specifications: Resistance: range: 0.01-20? accuracy: 0.5%+2digit Capacitance ESR: range: 0.01-20?,require for the value lager than 0.1uF accuracy: 1%+2digit capacitance: range?0.1uF-2000uF?(3uF-2000uF,test with 3K Hz signal?0.1uF-3uF,test with 72K Hz signal) accuracy: test with 72kH/3kHz signal at the same time,can get two value of capacitance, the accuracy is 2%+-10digit?depends on the range and Hz? Inductance? range: 0-60uH(72kHz), 0-1200uH(3kHz) accuracy: 2%+2digit, the resolution is 0.01uH
