HES 4500C Electric Strike Complete Pac, Accommodates Cylindrical or Mortise Locksets up to a 3/4" Throw latchbolt, Satin Stainless Steel (630), Dual Voltage (12/24 VDC/VAC)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
HES 4500C Electric Strike Complete Features
-
HES 4500C Electric strike, the low profile, heavy duty, fire rated solution.
-

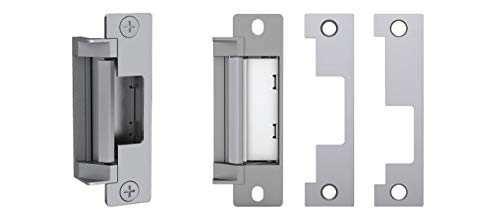

Includes two faceplates to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt
-
NOTE: Relocation of the strike prep may be required for Schlage L Series and Yale 8700 mortise locks. Consult HES customer support regarding use with Best 40 series.
-
SecuriCare five-year, no fault, no questions asked warranty. Tested & Certified.
-
PLEASE CHECK SIZES & FITTING DIMENSIONS BEFORE PURCHASING THIS STRIKE.
About HES 4500C Electric Strike Complete
The 4500C series electric strike is designed for installation in 2" UL 10C FIRE-RATED frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts). The 4500C Series is a Complete One Box Solution! FRAME APPLICATION: Metal/ Wood. ELECTRICAL (DC continuous duty/AC intermittent duty only): Dual Voltage = 12/24 VDC 450 mA at 12 VDC (.45 AMPS) /250 mA at 24 VDC (.25 AMPS). PoE friendly. STANDARD FEATURES: • Heavy Duty, Fire-Rated • Stainless steel construction • Tamper resistant • Static strength 1,500 lbs. •Dynamic strength 100 ft-lbs. • Endurance 1,000,000 cycles • Field selectable fail safe/fail secure • Non-handed • Internally mounted solenoid • Accommodates up to a 3/4" latchbolt • Strike body depth 1-3/8” •Plug-in connector •Trim enhancer •Full keeper shims for horizontal adjustment • Maintains 1/2" drywall penetration, even in a 2" UL 10C fire-rated frame • Unique keeper locking pin design • Exceeds ratings for most frames, doors and locking hardware •Convenient & Versatile COLOR: 630 Satin Stainless Steel. CERTIFICATIONS: ANSI/BHMA A156.31, Grade 1 UL 1034 burglary-resistant listed UL 294 listed UL 10C fire-rated, 3 hour (fail secure only) CAN/ULC-S104 fire door conformant NFPA-252 fire door compliant ASTM-E152 fire door compliant California Fire Marshal listed WARRANTY: SecuriCare five-year, no-fault, no questions asked.
