BETAFPV ExpressLRS Lite Receiver with Flat SMD Ceramic Antenna High Refresh Rate Long Range Performance Compatible for 65/75/85mm FPV Racing Whoop Drone
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available

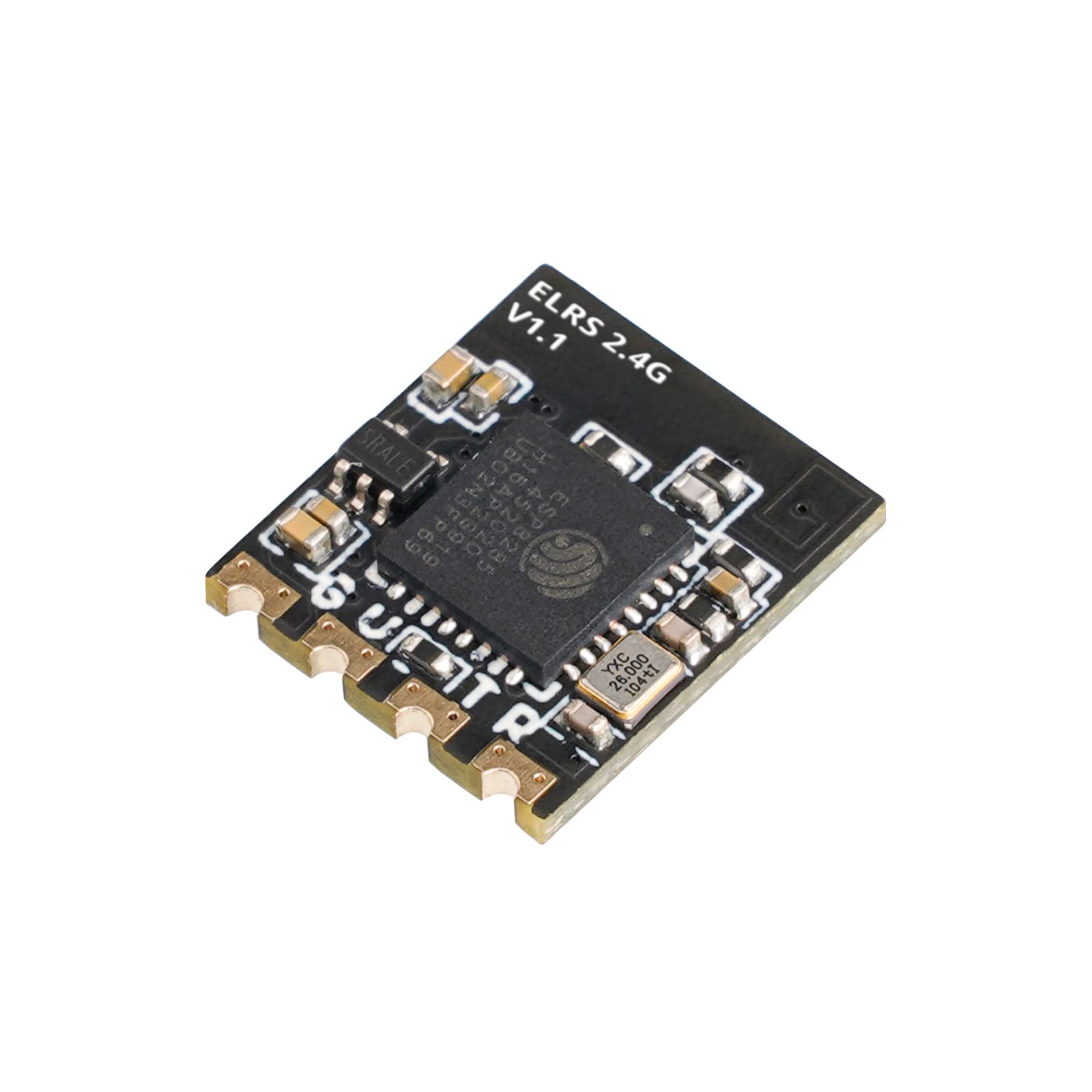

BETAFPV ExpressLRS Lite Receiver with Flat SMD Features
-
【Performance】Ultralight ELRS Lite receiver has a 2.4GHz Flat SMD ceramic antenna. A solid flat antenna without irregular parts can withstand crashes, making the receiver not so fragile. Perform well in control, range and stability, bringing a good flight experience to pilots
-
【Weight&Size】New lite receiver with a flat antenna features a 3mm extra-thin board and 0.53g lightweight, which requires less assembly space on drones with limited space
-
【ExpressLRS】 ExpressLRS is an open-source RC link for RC applications, based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance
-
【ExpressLRS Lite Receiver】BETAFPV ELRS Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications that aims to achieve the best possible link performance in both speeds, latency, and range suit for ELRS TX module, etc
-
【Configuration & Bind】The Lite receiver comes with officially major release V1.1.0 protocol and no Binding Phrase included. Lite receiver could enter binding status by power on/off three times
About BETAFPV ExpressLRS Lite Receiver With Flat SMD
Please note that the default firmware of this Lite Receiver is V3.0. So the TX module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully BETAFPV ExpressLRS 2.4G Lite Receiver with Flat SMD Ceramic Antenna High Refresh Rate Long Range Performance Compatible for 65/75/85mm FPV Racing Whoop Drone Specification Firmware version: V3.0 Weight: 0.53g (with Flat SMD ceramic antenna) Size: 11mm*10mm*3mm Gain: 3.2dBi Radio Efficiency: >80% MCU: ESP8285 Telemetry power: 17mW Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM Input voltage: 5V Package 1 * BETAFPV ELRS Lite receiver(Flat SMD ceramic antenna) 2 * Spare shrink tube 4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
