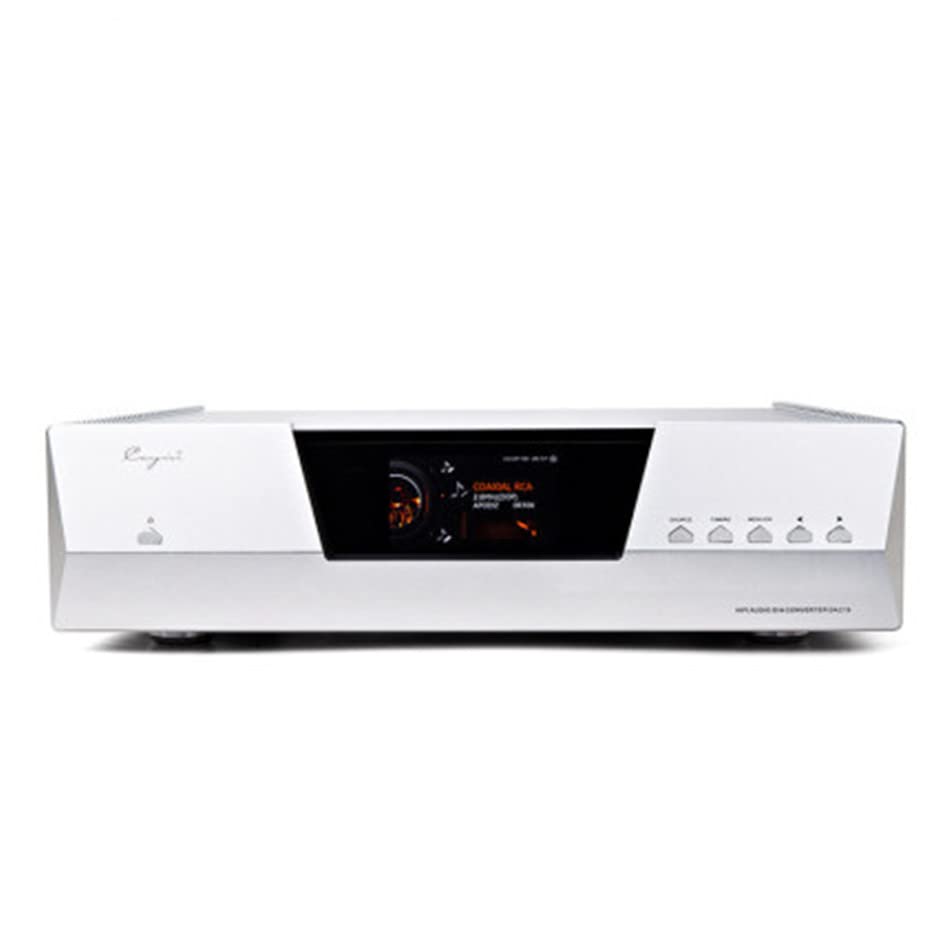

Cayin DAC19 6922EH*4 CD Player ES9038Pro*2 IIS I2S Coaxial USB Input DSD512 PCM 32bit/768khz DAC Transistor/Tube Line Preamp Out
Share Tweet
Cayin DAC19 6922EH*4 CD Player ES9038Pro*2 IIS I2S Features
-
CD Player
-
DAC Transistor
-
IIS I2S Coaxial
About Cayin DAC19 6922EH*4 CD Player ES9038Pro*2 IIS I2S
Basic Product Parameters DAC: ES9038PRO*2 Screen size: AMOLED 3.95 inch Input interface: USB, IIS/DSD, AES/EBU, COAXAIL BNC, COAXIAL RCA, OPTICAL Line Output: RCA, XLR Preamp Output: RCA, XLR Manipulation mode: Remote + Button Shape material: Aluminum Size: 440mm*392mm*126mm Weight: About 12KG Digital Audio Input Specifications Input Digital Audio Specifications USB AUDIO Audio Format PCM 16Bit-32Bit, 44.1kHz-768kHz DSD DSD64-DSD512(Native),DSD64-DSD256(DoP) Operating System Windows Support (Need Driver) MAC OSx Support (Not Need Driver) Android Support (Not Need Driver) iOS Not Support Working Mode Asynchronous USB Audio 2.0 Class Other DSD Support Native, Dop and D2P IIS/DSD Audio Format PCM 16Bit-32Bit,44.1kHz-768kHz DSD DSD64-DSD512 AES/EBU Audio Format PCM 16Bit-24Bit,44.1kHz-384kHz DSD DSD64-DSD128 (DoP) COAXIAL Audio Format PCM 16Bit-24Bit,44.1kHz-384kHz DSD DSD64-DSD128 (DoP) OPTICAL Audio Format PCM 16Bit-24Bit,44.1kHz-192kHz DSD DSD64 Analog Audio Output Specifications Output mode Analog Audio Specifications LINE OUT RCA Transistor mode Rated output level 2.3V+2.3V (47KΩ loading) Frequency Response 20-50kHz (±0.5dB, Fs=192kHz) Total harmonic distortion + noise 0.0008% (Fs=192kHz,20-20kHz,A-Weighting) Dynamic range ≥115dB (Fs=192kHz,20-20kHz,A-Weighting) Signal-to-noise ratio ≥115dB (Fs=192kHz,20-20kHz,A-Weighting) Channel isolation ≥92dB Output impedance 10Ω Vacuum tube mode Rated output level 2.2V+2.2V (47KΩ loading) Frequency Response 20-50kHz (±0.5dB, Fs=192kHz) Total harmonic distortion + noise ≤1.8% (Fs=192kHz,20-20kHz,A-Weighting) Dynamic range ≥99dB (Fs=192kHz,20-20kHz,A-Weighting) Signal-to-noise ratio ≥99dB (Fs=192kHz,20-20kHz,A-Weighting) Channel isolation ≥92dB Output impedance 100Ω XLR Transistor mode Rated output level 4.6V+4.6V (47KΩ loading) Frequency Response 20-35kHz (±0.5dB, Fs=192kHz) Total harmonic distortion + noise
