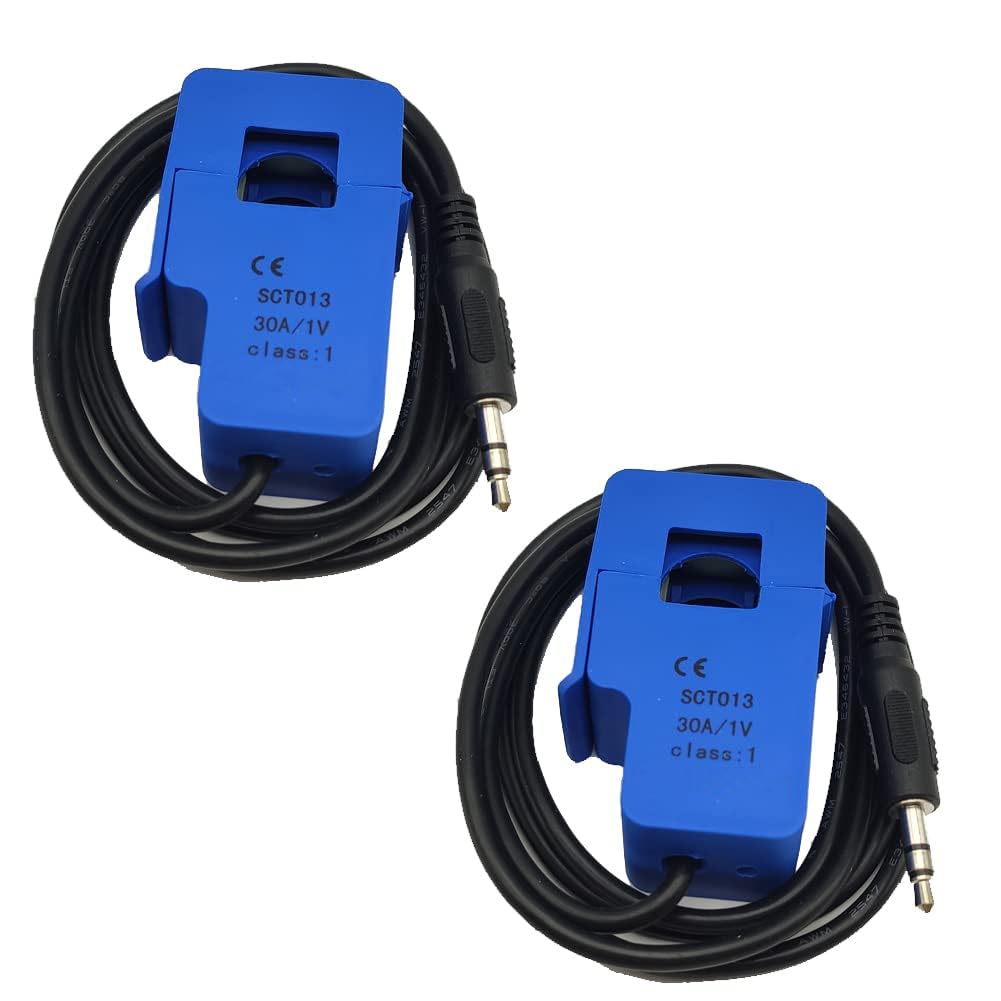

SYUAB 2Pcs 30A/1V SCT013000 Non-invasive Split Transformer Sensor SCT-013-000 Core Current
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
SYUAB 2Pcs 30A/1V SCT013000 Non-invasive Split Features
-
Non-linearity ± 3% (10% ~ 120% rated input current) two output forms of current and voltage (voltage output type built-in sampling resistor)
-
【Applications】Suitable for current measuring, monitoring and protection of AC motors, lighting equipment, air compressors, etc
-
【Reliability】Fully compatible with most similar products; the number of opening and closing times is not less than 1000 (tested at 20℃); this split core current transformer is particularly suitable which can use for a long time for DIY use and it works well with arduino and raspberry pi
-
【Specification】Opening size: 13mm × 13mm; frequency: 50HZ-150KHZ; working temperature: -25℃～+70℃; lead length: 1.5 meters, standard Φ3.5 three-pin plug outpu
-
Package Include 2Pcs x SCT-013-000 Split Core Current Transformer Sensor
About SYUAB 2Pcs 30A/1V SCT013000 Non-invasive Split
Model: SCT-013-000 Type: Non-invasive current transformer Core Material: Ferrite Input Current: 0~100A AC Output Mode: 0~50mA Leading Wire in Length: 1m Turns Ratio: 1: 1800 Work Voltage: 660 v Resistance Grade: Grade B Max Sampling Resistance: 10 Ω Linearity: ±3% Accurancy: ±1% Work Frequency: 50-1 KHz Work Temperature: -25˚C ~ 70˚C Reference project: Open Energy Monitor Dielectric Strength: 6000V AC/1min Opening Size: 0.51 * 0.51inch / 13 x 13mm Two Form of Output: current output or voltage output (a burden resistor needed to add); Mechanical strength: opening and closing times, no less than 1000 times (20 ℃) High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0) Package include: 2 PCS Split Core Current Transformer SCT-013-000
