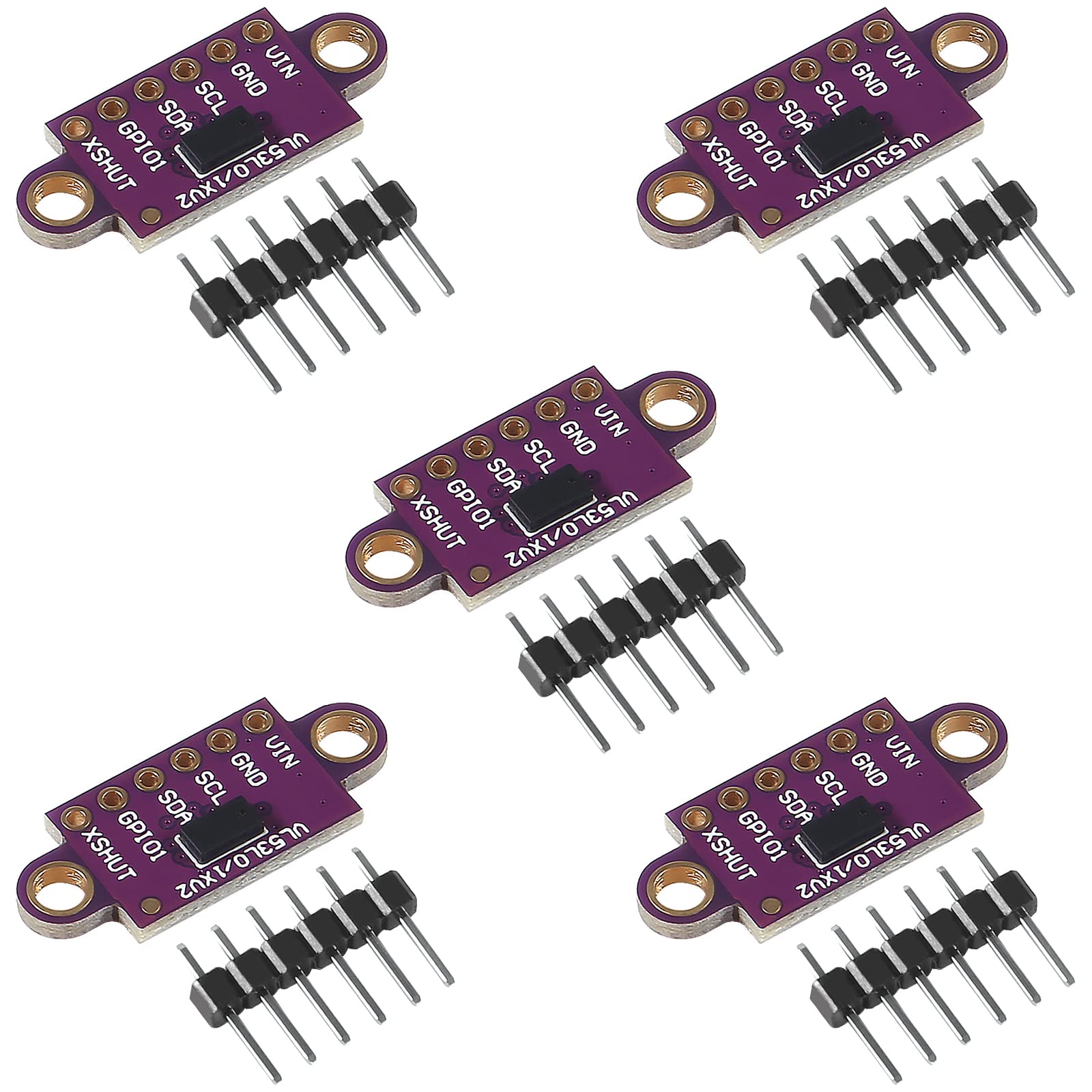

5pcs VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Flight Distance Measurement Module I2C IIC
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
5pcs VL53L0X Time-of-Flight (ToF) Laser Ranging Features
-
The VL53L0X time-of-flight ranging sensor is new--generation laser ranging module, with a fully integrated sensor and built-in embedded infrared, eye-safe laser
-
Ranging measurements are available through the sensor's I2C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output
-
Range from ±3% at best to over ±10% in less optimal conditions
-
Working Voltage: 2.6V - 5.5V; Max Sensoring Distance: 2m
-
Package Included: 5pcs VL53L0X time-of-flight (ToF) laser ranging sensor breakout
About 5pcs VL53L0X Time-of-Flight (ToF) Laser Ranging
VL53L0X time-of-flight ranging sensor is a new generation of laser ranging module, VL53L0X is a fully integrated sensor, equipped with embedded infrared, eye safety laser, advanced filters and high-speed photon detection array, measurement distance is longer, speed and accuracy higher. Parameter: 1. ToF ranging length: ≤2M 2. Accuracy: up to ±3% (affected by environmental conditions and target characteristics) 3. Ranging time: ≤30ms 4. Power consumption: 20mW 5. Standby power consumption: 5μA Note: 1. The VL53L0X is a great IC, but its small, LGA package makes it difficult for the typical student or hobbyist to use. 2. VL53L0X is operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible. Package includes: 5* VL53L0XV2 Time-of-Flight (ToF) Laser Ranging Sensor
