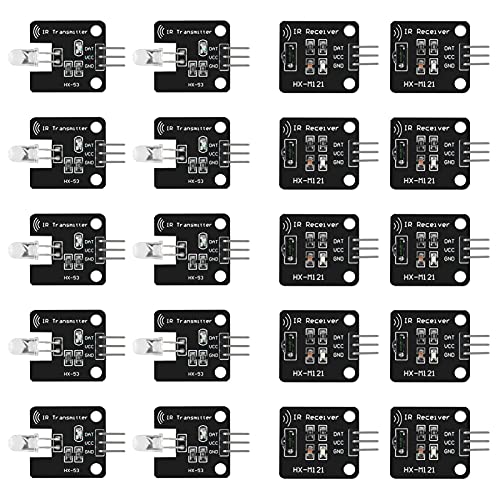

Dorhea 10Pcs Digital 38khz Ir Receiver Sensor Module + 10Pcs 38khz Ir Transmitter Sensor Module Kit for Electronic Building Block
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Dorhea 10Pcs Digital 38khz Ir Receiver Sensor Features
-
The infrared transmitter module is directly transmitted by a single tube, and the waveform needs to be modulated by the program.
-
Adopt 1838 remote control receiver with high sensitivity.
-
With the emission signal indicator LED, easy to observe and debug.
-
Can be used for remoter control,Can be compatible with wrobot digital 38KHz IR transmitter sensor.
-
Widely used in infrared communication, infrared remote control, apply to a variety of platforms including for Raspberry pi/51/AVR/ARM.
About Dorhea 10Pcs Digital 38khz Ir Receiver Sensor
Transmitter module specifications: Supply voltage: 5V Signal type: digital signal Infrared center wave length: about 850nm-940nm Infrared emission distance: about 1.3 meters (5V 38Khz) Infrared emission angle: about 20 degrees Working environment: -25 ~ + 85 ℃ Storage temperature: -30 ~ + 100 ℃ Modulation: direct transmission without modulation Wavelength: 940nm There are 2 fixing holes for easy installation. Aperture: 3mm IR Receiver module specifications: Working voltage: 5V Output form: digital output With data indicator There are 2 fixing holes for easy installation. Aperture: 3mm Wiring Instructions: DAT: digital output interface VCC: 5V DC power supply positive GND: 5V DC power supply negative Package Included: 10 X Infrared transmitter module 10 X Infrared receiver module
