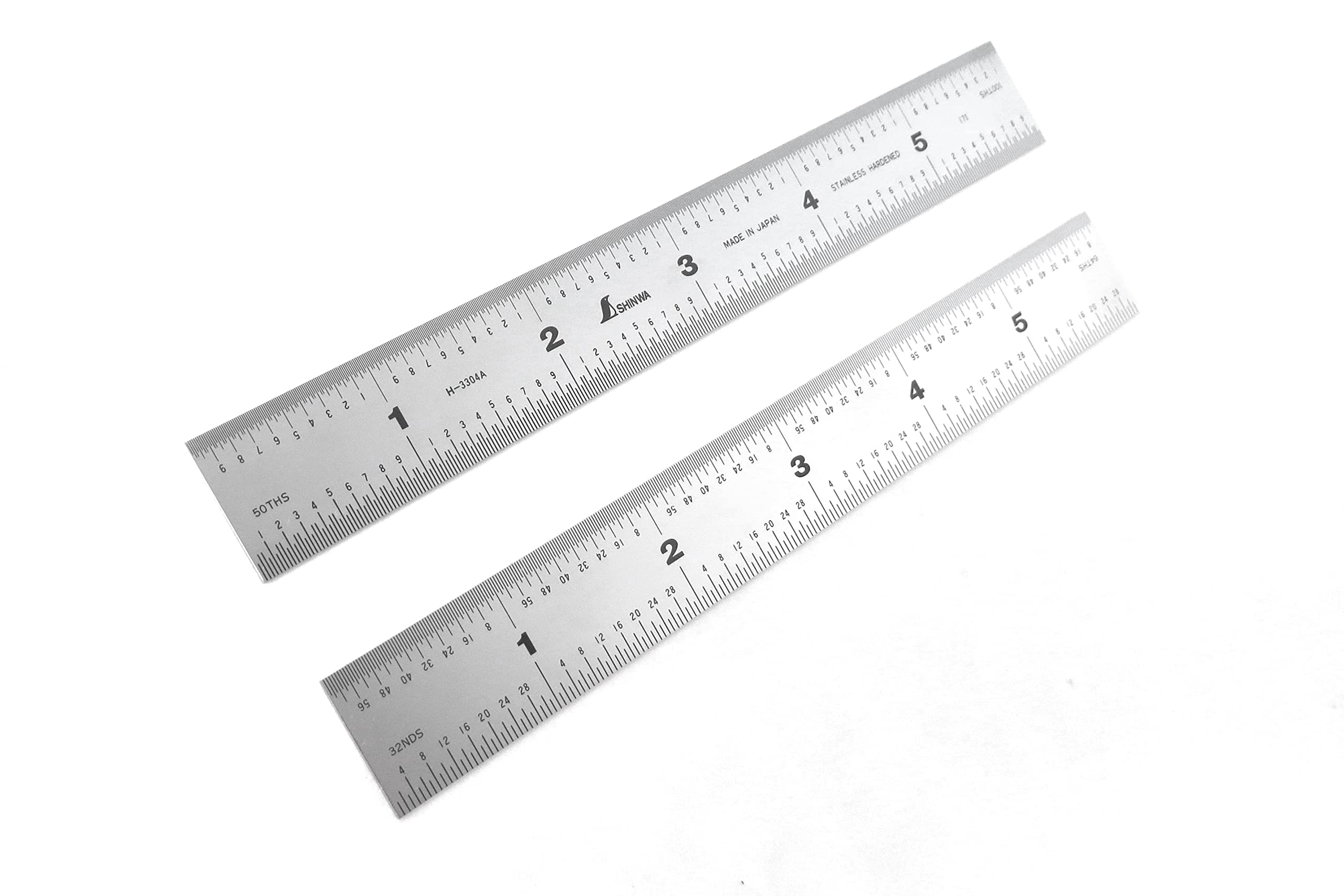

Shinwa Rigid Stainless Steel Machinist Ruler 16R Graduations (1/64, 1/32, 1/50, 1/100) Satin Chrome Finish (6 inch)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Shinwa Rigid Stainless Steel Machinist Ruler 16R Features
-
These machinist rulers are made in Japan by Shinwa. Shinwa is the leading manufacturer of measuring tools in Japan and is quickly becoming the benchmark worldwide. All their rulers are made to strict Japanese Industrial Standards (JIS B7516 Grade 1) for material consistency, hardness, length, thickness, end squareness, finish, flatness and straightness.
-
These rulers have 16R markings with 1/32nd and 1/64th graduations on one side and 1/50th and 100th marks on the reverse. The super-fine graduation marks have been precision photo-etched and then black-filled for easy readability. These markings will not wear off even after years of abuse.
-
These rulers are made from SUS420J2 stainless steel hardened to HRC-40 and then coated with a smooth, hard, non-glare chrome. This hard chrome makes the rule resistant to scratches and corrosion, but also eliminates glare greatly enhancing readability in bright-light conditions.
-
The edges are ground straight and then smoothed so when scribing along the edge with a pencil or marking knife not even the slightest resistance is encountered. The ends are ground square to within 0.001”.
-
Sizes are as follows: 6 inch is 3/4 inch wide by 0.032 inch thick, 12 inch is 1.25 inch x 0.040 inch thick, 24 inch is 1.25 inch wide by 0.040 inch thick, 36 inch is 1.25 inch wide by 0.040 inch thick. Rule comes with a vinyl sleeve for protection when not in use.
About Shinwa Rigid Stainless Steel Machinist Ruler 16R
These machinist rulers are made in Japan by Shinwa. Shinwa is the leading manufacturer of measuring tools in Japan and is quickly becoming the benchmark worldwide. All their rulers are made to strict Japanese Industrial Standards (JIS B7516 Grade 1) for material consistency, hardness, length, thickness, end squareness, finish, flatness and straightness. These rulers have 16R markings with 1/32nd and 1/64th graduations on one side and 1/50th and 100th marks on the reverse. The super-fine graduation marks have been precision photo-etched and then black-filled for easy readability. These markings will not wear off even after years of abuse. These rulers are made from SUS420J2 stainless steel hardened to HRC-40 and then coated with a smooth, hard, non-glare chrome. This hard chrome makes the rule resistant to scratches and corrosion, but also eliminates glare greatly enhancing readability in bright-light conditions. The edges are ground straight and then smoothed so when scribing along the edge with a pencil or marking knife not even the slightest resistance is encountered. The ends are ground square to within 0.001”. Sizes are as follows: 6 inch is 3/4 inch wide by 0.032 inch thick, 12 inch is 1.25 inch x 0.040 inch thick, 24 inch is 1.25 inch wide by 0.040 inch thick, 36 inch is 1.25 inch wide by 0.040 inch thick. Rule comes with a vinyl sleeve for protection when not in use.
