FLYPIG 11210‑40B01 82cc Engine Piston Cylinder Gasket Head Kit for Suzuki Quadsport LT80 1987-2006 for Kawasaki KFX80 2003-2006 11111-40B00
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
FLYPIG 11210‑40B01 82cc Engine Piston Cylinder Features
-
Replaces Part Numbers: 11210-40B01, 11111-40B00,12110-40B01-0F0, 12140-40B30,12151-35400, 09263-12023, 09263-12020,09381-12001, 11141-07910, 11241-40B10,11241-40B00 ,01421-0695A
-
This Cylinder has a 50.00mm Bore and 42.00 mm Stroke Cylinder Displacement: 82cc.
-
Constructed with heavy-duty metal, this kit is tested for reliability and performance, offering a great solution for top-end engine rebuilds.Made of aluminum material, this top end kit improves heat dissipation, pressure resistance, high-temperature performance, and corrosion resistance, Easy to use and install.
-
Make sure the arrow on the piston points to the exhaust port of the LT80, not the intake port If the piston is installed backwards, it will affect the opening and closing angles of the valves and the gas counterweight ratio, which in turn will cause the engine to make a murmur when running, and may even result in pulling and crashing the cylinder and other serious consequences
-

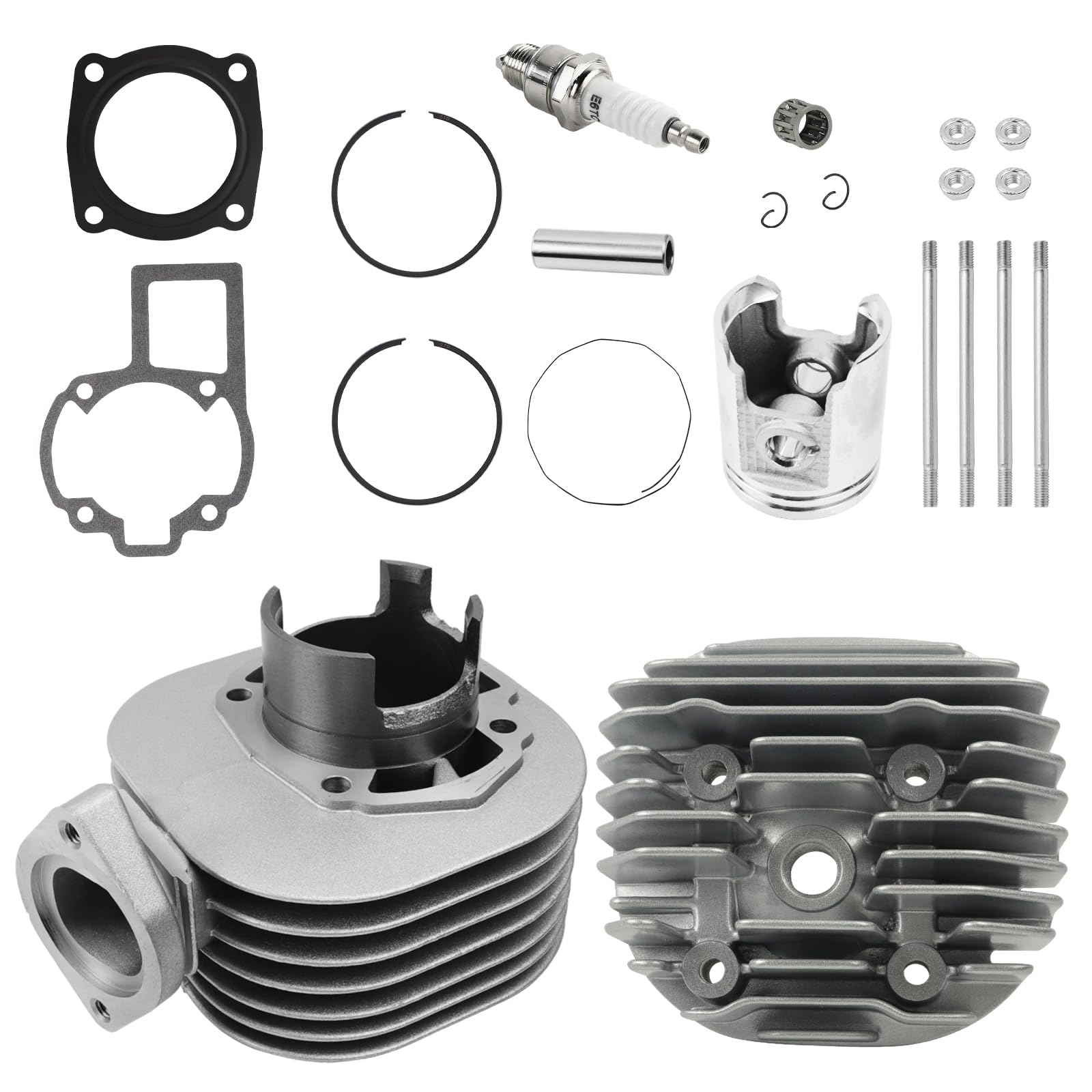

Package Included: 1 x Cylinder Block, 1x Cylinder Head, 1 x Piston, 1 x Piston Pin, 1 x Bearing, 2 x Circlips, 1 x Piston Ring Set, 1 x Head Gasket, 1 x Base Gasket, 4 x Cylinder Bolts, 4 x Bolt Nuts, 1 x Spark Plug.
About FLYPIG 11210‑40B01 82cc Engine Piston Cylinder
Specifications: Type: Cylinder Piston Gasket Kit This Standard Cylinder has a 50.00mm Bore and 42.00 mm Stroke Cylinder Displacement: 82cc Cylinder Material: Aluminum Cylinder Sleeve Coating: None Compatible with the following models: KW KFX80, Quadsport 80 Replaces : 11210-40B01, 11111-40B00,12110-40B01-0F0, 12140-40B30,12151-35400, 09263-12023, 09263-12020,09381-12001, 11141-07910, 11241-40B10,11241-40B00 ,01421-0695A Features: Constructed with heavy-duty metal, this kit is tested for reliability and performance, offering a great solution for top-end engine rebuilds. Made of high-strength aluminium material,can effectively improve heat,pressure,high temperature and corrosion resistance. Direct installation, no modification, easy to use and install. Fitment: for Suzuki Quadsport LT80 1987-2006 for Kawasaki KFX80 ATV's 2003-2006 Package Included: 1 x Cylinder Block 1x Cylinder Head 1 x Piston 1 x Piston Pin 1 x Bearing 2 x Circlips 1 x Piston Ring Set 1 x Head Gasket 1 x Base Gasket 4 x Cylinder Bolts 4 x Bolt Nuts 1 x Spark Plug Note: FLYPIG brand products, High quality, Non-original, Direct replacement Please check carefully the item pictures, model and size before purchasing. Or leave us messages for assistance if you are not sure about the fitment.
