JRready M22520/1-01 Crimper Tool Kit M22520/1-01 Solid Contacts Crimper NEW-AS1 with M22520/1 Series Positioners PH102(TH1A)/PH103/PH104/UF6-UF2-5 for 12-26 AWG Wire of Electrical Connectors Contacts

Pay with

JRready M22520/1-01 Crimper Tool Kit M22520/1-01 Features

• [CRIMPER CRIMPING RANGE]:12-26 AWG(0.128-3.33mm²)

• [CRIMPER CRIMP STYLE]:4-indent 8-impression

• [APPLICATION]:Suitable for crimping round contacts of MIL standard connector

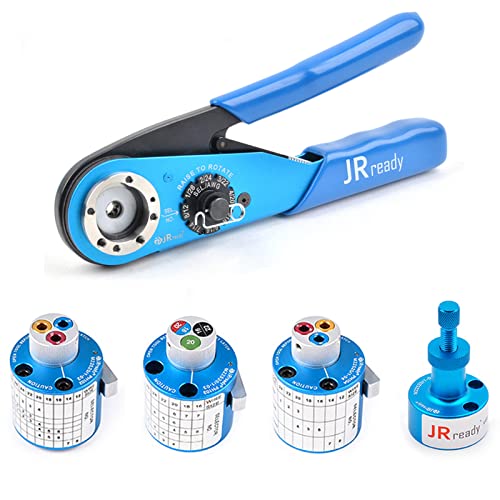

• [PACKAGE INCLUDE]:NEW-AS1 crimp tool + PH102(M22520/1-02) turret Head + PH103(M22520/1-03) turret head +PH104(M22520/1-04) turret head +UF6-UF2-5 adjustable positioner

• It gives a perfect crimping with high accuracy and easy operation

About JRready M22520/1-01 Crimper Tool Kit M22520/1-01

YJQ-W2A Hand Crimp Tool Has limitless application within the specified wire range of 12-26 AWG Positioners adapt the tool frame to specific military or proprietary contact combination The YJQ-W2A gives an 8 impression crimp, which assures maximum tensile strength Crimp depth can be adjusted by an 8 position selector knob conveniently located on the tool frame Often used in military institutions, aviation companies and electronic connector companies, for example: Deutsch, Amphenol, Lemo and so on The precision ratchet controls cycling of the tool in both directions of handle movement which assures the same accurate crimp every time TH1A/TH163 Turret Head Weight: 0.25 lb Adjustable turret crimper positioner Gives a standardized and accurate crimp every time A dataplate affixed to turret head lists specific contact part numbers, the corresponding position color code, and suggested selector depth settings for the wire size being used Can be adjusted to match the diameter of the connectors and the wires desired UH2-5 Adjustable Positioner Weight: 0.15 lb Can be easily mated to the crimping tool frame Adapt the tool frame to specific military or proprietary contact combination The screw can be secured with the locknut provided The selected contact is inserted through the entry hole on the opposite side of the tool frame from the head The height adjusting screw is rotated until the contact is in the proper position for crimping G125 Go-NoGo Gauge GO: 0.039 inch NO-GO: 0.044 inch Set the tool selector knob to position4, and check indenter closure with the gage Periodic gaging is recommended to insure accurate calibration.
