JRready TH285 Turret Head M22520/1-13 Used With JRD-FT8 Crimping Tool for Coaxial Connectors contacts
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
JRready TH285 Turret Head M22520/1-13 Used With Features
-
Equivalent to M22520/1-13.
-
There is no need to change the positioning device for crimping different standard contacts, just rotate the positioning core.
-
Adjustable for a wide range of wire and connector sizes.
-
Gives a standardized and accurate crimp every time.
-
Works with M22520/1-01: NEW-ASF1,JRD-ASF1,NEW-AS1,ACT-AS1,YJQ-W2Q
About JRready TH285 Turret Head M22520/1-13 Used With

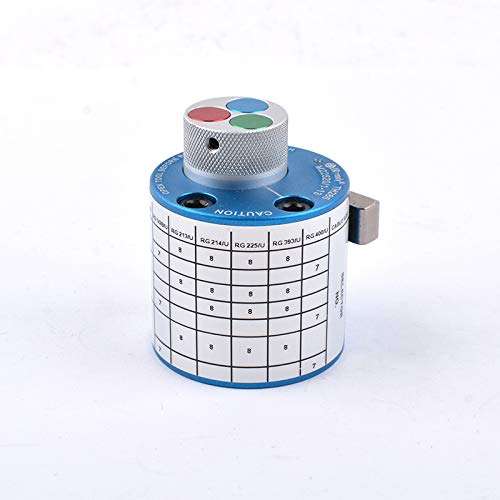

TH285 Turret Positioner TH285 turret positioner is designed referred to MIL-C-22520/1-13. It contains three different specifications of the positioning core. Each core is corresponding to the different positioning turret colors, rotate to the right color according to the different terminal specifications. Suitable terminal model: M39012/01-0501,M39012/01-0502,M39012/01-0503, M39012/02-0511,M39012/02-0512,M39012/02-0503, M39012/05-0501,M39012/05-0502,M39012/05-0503, M39012/39-0501,M39012/39-0503, M39012/02-0511,M39012/02-0512,M39012/02-0513 Turret Head/Positioner Installation 1.Keep the crimp tool in open position,press turret trigger latch which releases turret to indexing position. 2.Place selected turret head assembly onto retainer ring with socket head screws lined up with tapped holes. 3.After turret head is seated against retainer ring, tighten socket head screws. 4.Turret head & positioner installation is completed. Guarantee JRready specializes in designing and manufacturing hand/ pneumatic indents crimping tools, open frame die crimper, positioners, turret heads for wire crimpers. We make every effort to provide our customers with tool selection services, product customization services, great after-sales services and product maintenance services.
