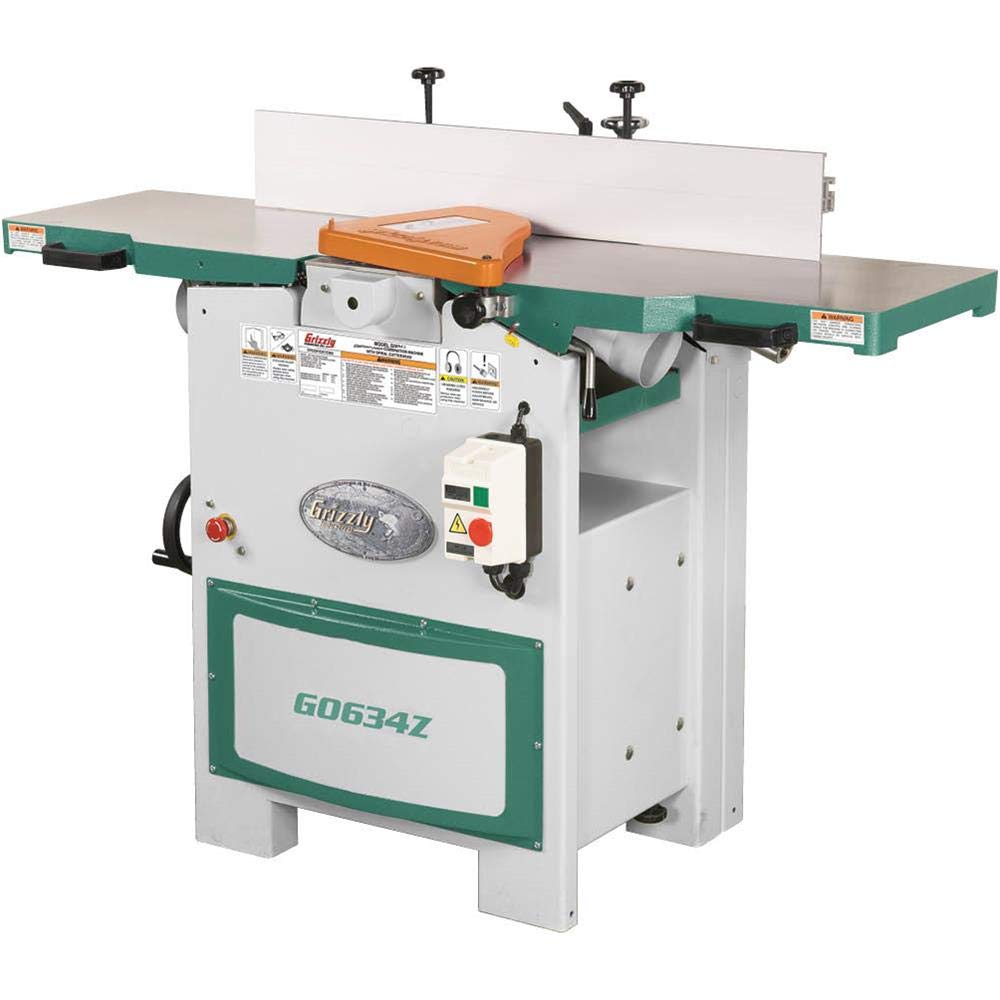

Grizzly G0634Z Planer/Jointer with Spiral Cutter head, 12"

Pay with

Grizzly G0634Z Planer/Jointer with Spiral Cutter Features

• This heavy-duty combination machine joints and planes using the same 12-inch cutter head

• Jointer table size: 14-inch x 59-1/2-inch; fence: 5-7/8-Inch x 39-3/8-Inch

• Carbide insert spiral cutter head; cutter head diameter: 3-1/8-Inch; cutter head speed: 5034 RPM

• Maximum jointer depth of cut: 1/8; maximum Width of cut: 12-inch; cuts per minute: 20 136

About Grizzly G0634Z Planer/Jointer With Spiral Cutter

This heavy-duty combination machine joints and planes using the same 12-inch cutter head saving money and the space required for two individual machines. Conversion from the jointer to the planer is easy. Just remove the quick-release fence and flip up the jointer tables. The tables are precision-ground to a mirror-like finish and the fence can be positioned at any angle between 45Degree and 90degree-as well as raised lowered canted and adjusted along the table. The planer features 2 feed rollers anti-kickback fingers and thickness scale. This machine is a very high quality unit that is built to last! specifications: • motor: 5 hip 220V single-phase 25a • jointer table size: 14-inch x 59-1/2-inch • cutter head: spiral 32 inserts • cutter head diameter: 3-1/8-Inch • cutter head speed: 5034 RPM • maximum jointer depth of cut: 1/8-Inch • maximum width of cut: 12-inchfence: 5-7/8-Inch x 39-3/8-Inch • bevel jointing: 0Degree - 45Degree • switch: magnetic with thermal protection • power transfer: twin v-belts • floor to table height: 35-1/2-inch • bearings: shielded and lubricated • overall width (side-to-side): 59-5/8-Inch • overall size: 59-1/4-inch W x 42-inch D x 45-inchh • dust port size: 4-inch • planer feed rate: 22 FPM • maximum planer depth of cut: 1/8-Inch • maximum planer cutting height: 8-Inch • planer table size: 12-1/4-inch x 23-1/8-Inch • approximate shipping weight: 734 lbs.
