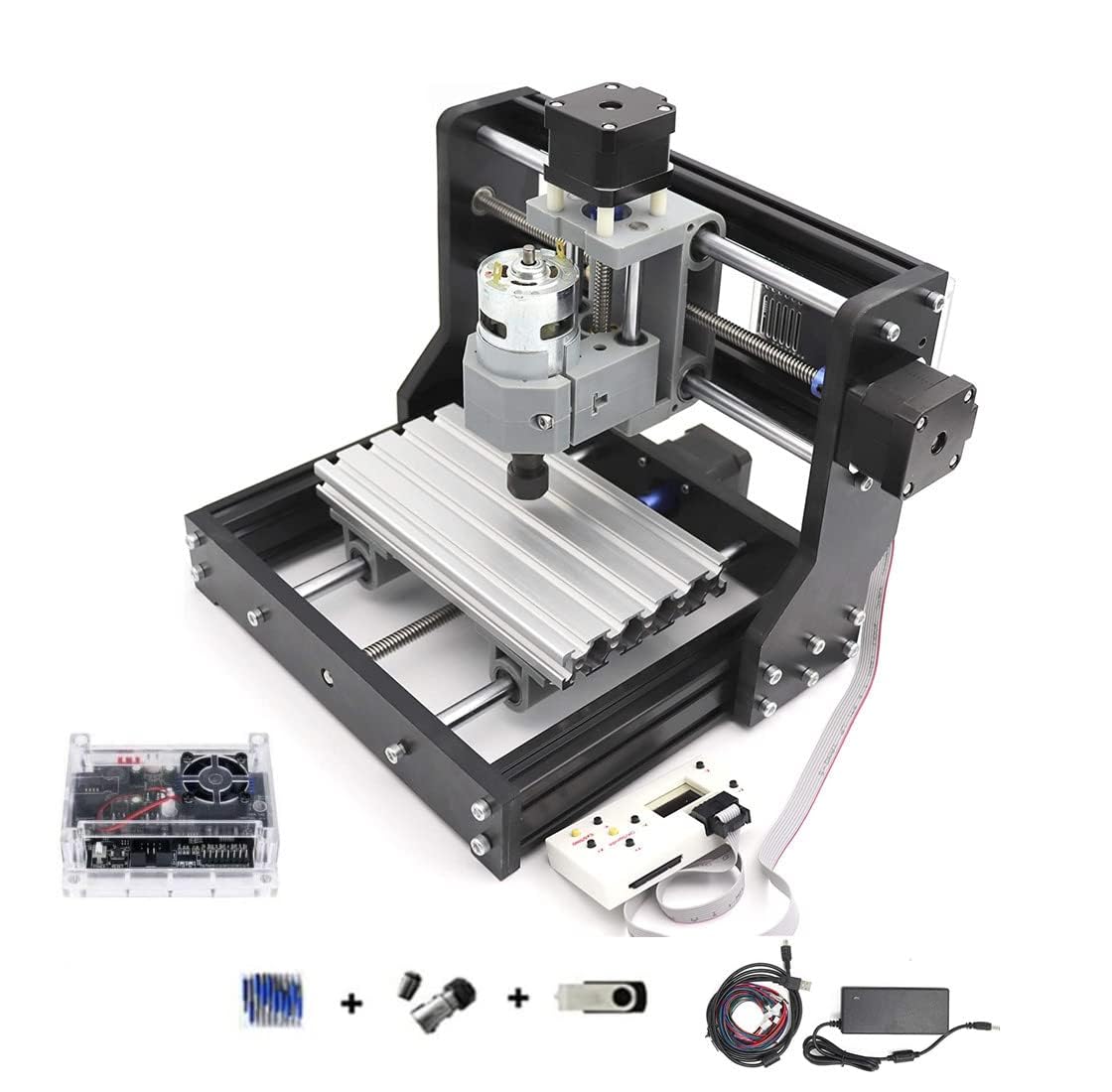

CNCTOPBAOS 1610 PRO CNC Milling Machine,with GRBL Offline Controller,3 Axis Desktop DIY Mini CNC Router Kit Engrave Carving PVC,PCB,Acrylic,Wood Cutting Engraving Machine CNC1610 Pro
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
CNCTOPBAOS 1610 PRO CNC Milling Machine,with GRBL Features
-
Model: Upgrade Version 1610 Pro; With White Offline Controller,you can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle
-
Working area: 7.08x3.93x1.77 inches/18x10x4.5cm ; Frame size: 11.81x10.23x9.84 inches/30x26x25cm; Type:USB port Desktop cnc router; Spindle: Dia 45mm 10000rpm max power 120W; ER11-3.175mm can be replaced 0-7mm collet; Nema17 42 stepper motor 1.3A/0.3N.m/42x42x34 mm
-
Upgraded GRBL1.1f Control Board: Added the outer casing,emergency stop button port,tool setting/probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module
-
Supporting files:G-code nc/txt/tape/gcode; Main application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,and soft metal like copper and aluminum and other materials etc
-
GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10 32/64 can be and Linux
About CNCTOPBAOS 1610 PRO CNC Milling Machine,with GRBL
Parcel include: 1 set 1610 Pro CNC Router with ER11 collet 1x GRBL 1.1 Control Board 1x Offline hand controller 1x Power Supply 10x 20°0.1mm Drill Bits 1Set Allen Wrench 1x 4G USB flash drive include english user manual & GRBL software Specification: Max Working area: 18*10*4.5cm Frame size:30*26*25cm Material: Aluminum Alloy Control software: Grbl Controller(candle) Interface: USB Stepper motor: 42 stepper motor 1.3A/0.3N.m Spindle:Diameter 45mm 10000 rpm maximum power 120W Power: 24V 5.6A power adapter (input voltage 110-240V) System requirements: windows XP, win7,win8,win10 (32/64 can be) Main application:Can be engraved plastic, wood, acrylic, pvc, pcb,carbon fiber, wood,density board and the like material. Software: GRBL controller, UniversalGcodeSender Spindle PWM speed: Support Supporting file:G-code (.nc/.txt/.tape/.gcode) Processing accuracy:About 0.2mm Support 12V 3 pin Ls, support P W M / T T L signal control,power 0-100% adjustable The spindle supports 0-100% adjustable PWM power. offline control: 1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan 2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to connect PC computer 3. Save file: after the off-line controller connect PC, it will be recognized as USB,large capacity storage device, can access engraving file directly. SD shows it is SD card condition,turn on power supply after insert SD card, otherwise,it won't work.SD card capacity 4G could be recognized.&n
