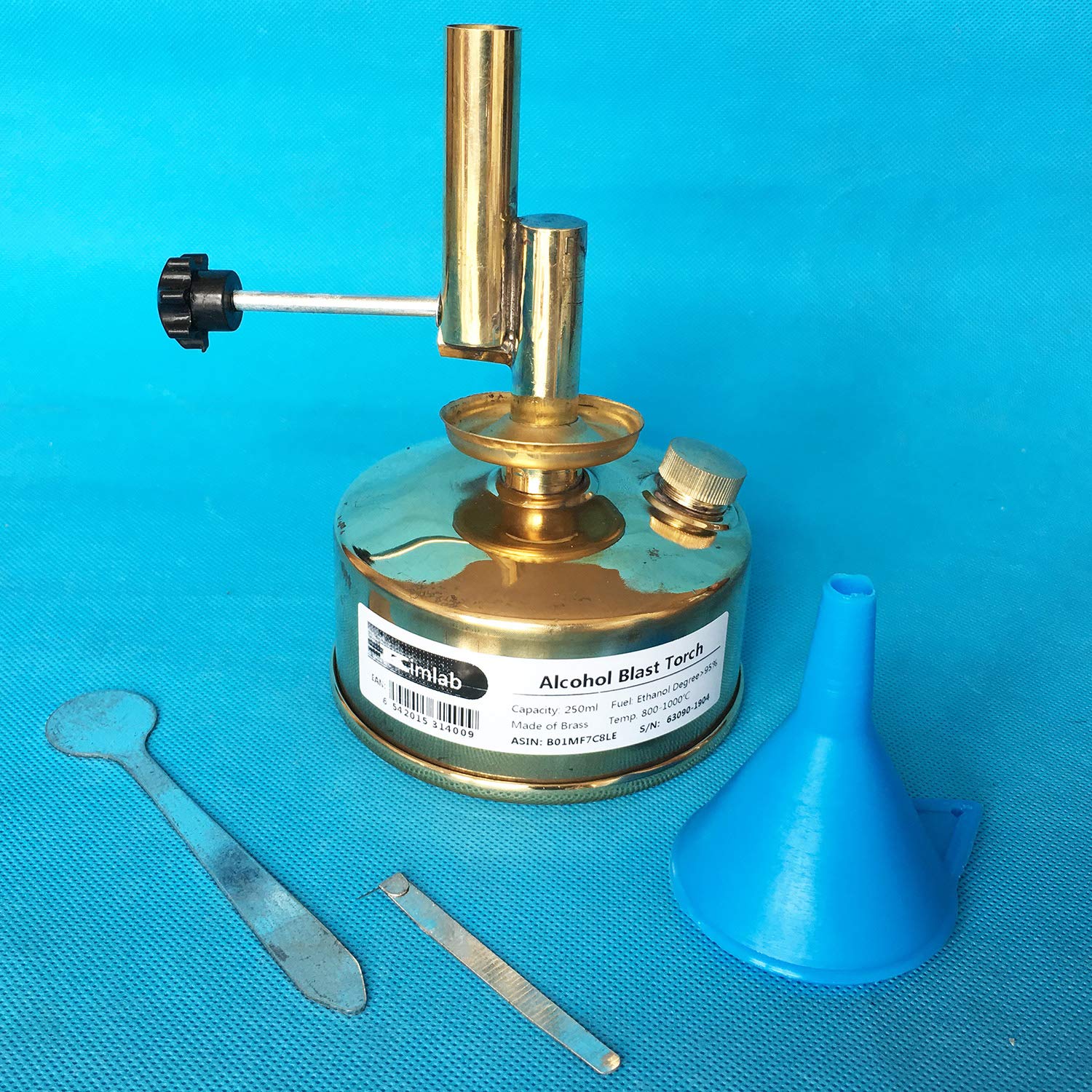

Generally used for heating,bending,welding borosilicate glass tube and rod in lab,Max temperature 800℃-1000℃. Fuel:ETHANOL DEGREE > 95%. if under, it will not work.
99% users don't need remove the heating head in the equipment overall lifetime.For the fevered handman, the heating head is really detachable.It is sealed by PTFE sealing strip,the same material used on tap water pipe.A man can screw off it by hand.But the pre-heating edge is sharp,wear a glove is safe.Once detached,it need to be sealed by new PTFE strip again.
The whole tank is made of brass, sealed by punching and welding.The screw is sealed by PTFE strip.If find leak, don't use it.
Other small parts not must have: pin for clear the hole,metal board for off the fire,plastic funnel for pouring alcohol.
The equipment is generally used in lab for heating and belding glass tube, also used in other hand made field. The product is safe in the right operation. How to use: 1. Pouring in about 250ml 95% ethanol,screw up the cap. 2. If the first time using,headstand some time to soak the wick, avoiding charring the wick.Then put the adjusting rod to the bottom. 3. Fill up ethanol in the pre-heating plate. If not enough, the fire may not breaking out. 4. Igniting the ethanol in the plate, the flame will break out when the ethanol almost burning out. If not, try the 2nd,3rd times. The unsuccess reason is the head temperature not high enough. 5. when the job done,using the metal board, covering the head to turn off the fire . Each equipment with the only SN number, and provide free return and replacement in 6 months if leak.
