INTSUPERMAI Portable Line Boring Machine Hole Drilling Connecting Rod Boring Machine XDT40 Processing Hole Ф45mm-Ф180mm with Handle Control for Engineering Machinery Repairing 110V

Pay with

INTSUPERMAI Portable Line Boring Machine Hole Features

• 𝐄𝐱𝐜𝐞𝐥𝐥𝐞𝐧𝐭 𝐏𝐞𝐫𝐟𝐨𝐫𝐦𝐚𝐧𝐜𝐞: Our portable line boring machine features a 110V continuous current motor, the power is 1500W/2HP, with low-speed revolution and high torque, ensuring exceptional stationary machining results

• 𝐕𝐢𝐛𝐫𝐚𝐭𝐢𝐨𝐧-𝐅𝐫𝐞𝐞 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐨𝐧: Equipped with an electric motor controller and dynamic delay brake program, our bore machine eliminates vibrations during both travel and cutting processes, ensuring precise and smooth operations

• 𝐅𝐥𝐞𝐱𝐢𝐛𝐥𝐞 𝐒𝐩𝐞𝐞𝐝 𝐑𝐞𝐠𝐮𝐥𝐚𝐭𝐢𝐨𝐧: Enjoy electrodeless speed regulation for feeding and processing. This hole drilling machine can tet the feeding process according to your requirements, and the processing will automatically stop after reaching the limit switch

• 𝐑𝐞𝐥𝐢𝐚𝐛𝐥𝐞 𝐁𝐨𝐫𝐢𝐧𝐠 𝐁𝐚𝐫: Boring bar size: 40×1500mm/1.57×59in. The high-strength alloy and structural steel construction of our boring bar ensures high hardness, accuracy, tenacity, and abrasion resistance. The bar can be easily disassembled for convenient installation

• 𝐒𝐚𝐟𝐞𝐭𝐲 𝐚𝐧𝐝 𝐂𝐨𝐧𝐯𝐞𝐧𝐢𝐞𝐧𝐜𝐞: With a tool rest that can be fixed at any position on the boring bar and a control cabinet installed below the main engine, the engineering mechanical hole drilling tool prioritizes safety and user-friendly operation

About INTSUPERMAI Portable Line Boring Machine Hole

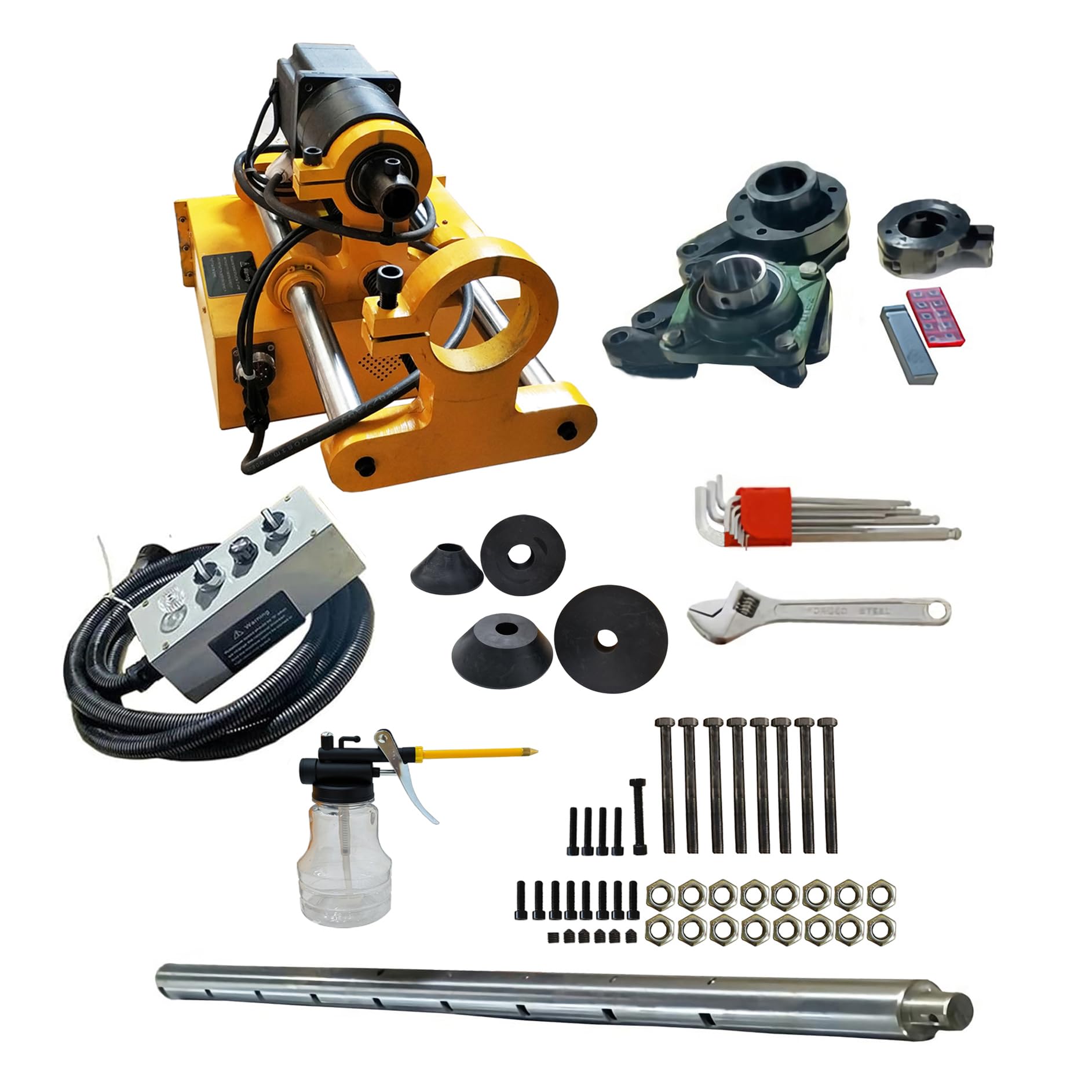

Notice: Our machine is constantly improving, the actual received accessories and web images will be slightly different. Please take the actual parts as the standard when you receive the parts, but the parts we send can guarantee the normal use of boring. Attention: Machine is installed by fixed clamp and uses different tool rest according to different dia ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest. Slushing oil should be painted to boring bar and feed screw which are not used very often. Appropriate grease oil should be added to the feed box every half a year. Spindle box and feed box should be stored by sealing if these parts are not used for a long time. Appropriate grease oil should be added to guide post and screw before processing. Parameter: Type: XDT40 Portable Line Boring Machine Maximum processing hole diameter: Ф180mm Minimum processing hole diameter: Ф45mm Maximum processing travel: 380mm Maximum feed depth: 2mm on one side (A3 steel) Surface roughness: Ra3.2 Deviation from circular form≤0.02mm Rotate speed: 0-83RPM Boring bar: 40*1500MM Control Type: Handle Control Box Package Content #022087 1 x Line Boring Machine XDT40 1 x Boring bar 1 x Necessary accessories 2 x Wooden Package
