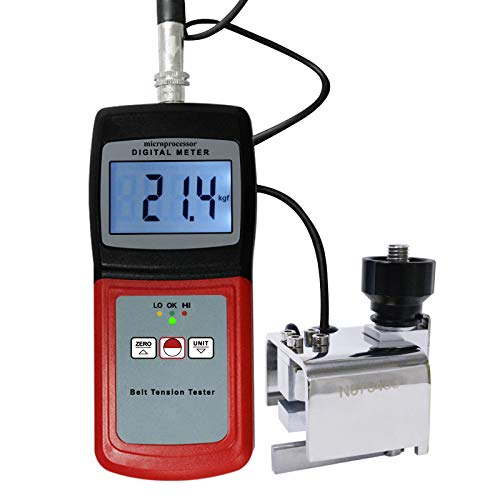

4 MEASUREMENT UNITS IN 1 : Measures 0~750N (Newtons) ; 0~120 lb (Pounds) ; 0~77 kg (Kilograms) ; and 0~114 Seems for belts with width up to 36mm. Helps to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.
HIGH TECHNOLOGY : To enhance measurement accuracy, this belt tension meter is built with exclusive Micro-computer LSI circuit and crystal time base
AUDIBLE ALARM : Tension limit is adjustable (preset at 750N), this meter will visually and audibly indicate when the tension overload. Users do not need to keep reading the display when adjusting the belt.
DATA OUTPUT : Data can be output for further analysis with Optional Accessories USB/ Bluetooth & Software (Not included in the set)
APPLICATIONS : After belt replacement, adjustment or wheel service, this belt tension tester allows you to quickly, easily, and accurately measure the belt tension, so you can be sure you adjust tension correctly for your vehicle or machine and won't shorten belt life. Applicable to automotive, motorcycle, manufacturing, machinery industry.
Features: Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement Used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines Tension can be displayed in a variety of standard and manufacturers' units Tension limits can be set into the instrument, either manually or automatically The selected tension limits, measurement units and calibration parameters are stored in the memory of the tester even the instrument is switched off Use USB data output to connect with PC (Cable & Software is not included in the set), analyzed and print Provide Bluetooth data output choice (Adapter and software is not included in the set) Auto power off when not in use for 10min Low battery indication Specifications: Display: 4 digits, 10mm LCD Tension Indicator: Colored LED Indication of High, Low and OK Measurement Range: 0~750 N (Newtons) 0~120 lb (Pounds) 0~77 kg (Kilograms) 0~114 Seems Belt Width: Up to 36 mm Overload Alarm: 750N (Adjustable) Maximum Load: 850N Resolution: ±1(Least Significant Digit of Units) Accuracy: ±5% of full-scale Data Output: USB, RS-232, Bluetooth (Software, cable and adapter are not included in the set) Audible Warning: Piezoelectric Sounder Power Supply: 4 x 1.5V AAA(UM-4) Battery Battery life Approximately 100 hours continuous operation Dimensions: 135 x 62 x 33mm Weight: 335g (not including batteries) Set Includes: 1 x Belt Tension Tester (Main Unit) 1 x Measuring Head English Operation Manual Carrying Case
