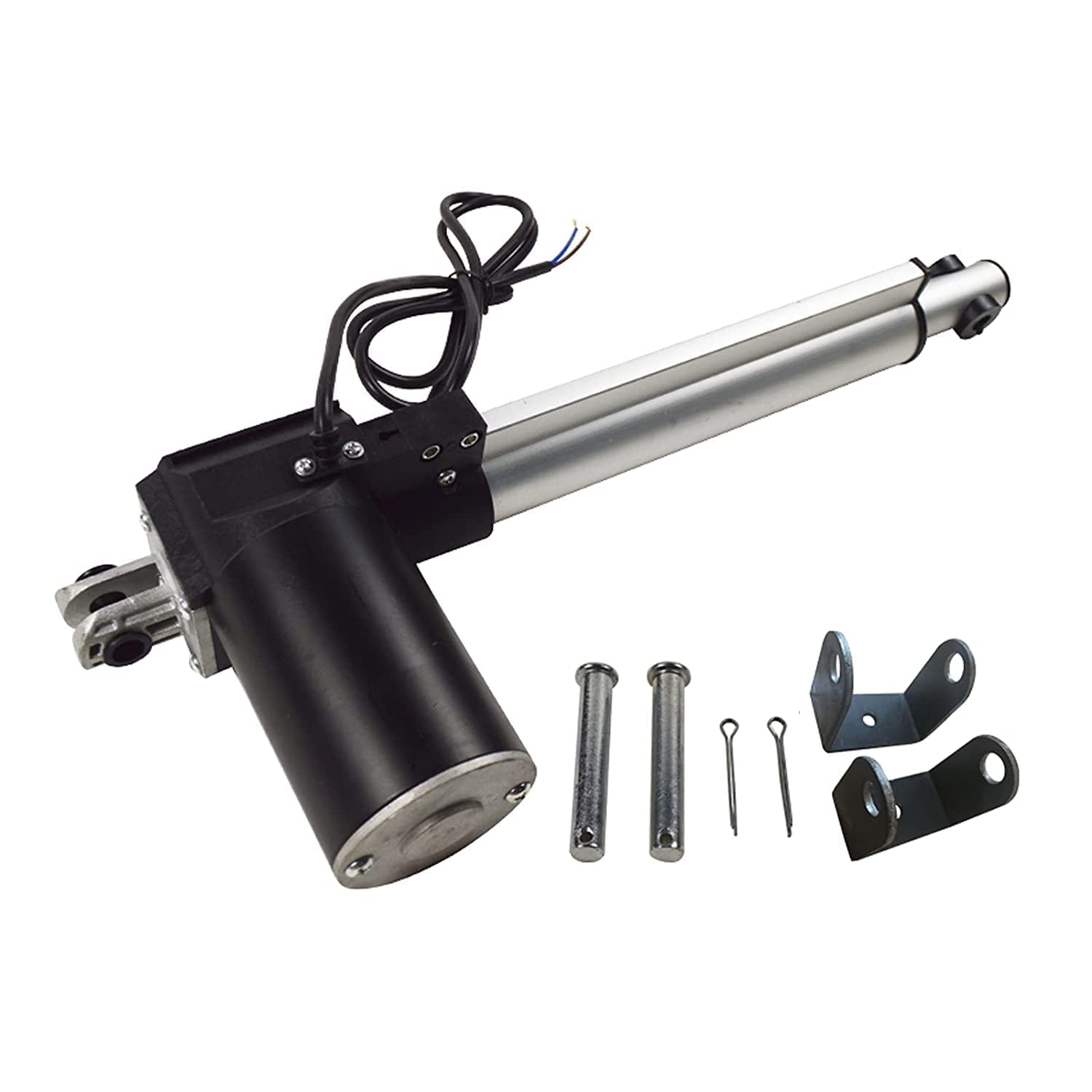

PreAsion 24V DC Linear Actuator 150mm（5.9"）with Mounting Bracket Linear Telescopic Rod Linear Motion Heavy Duty Actuators 1320LBS(6000N) Controller IP54 Grade Protection
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
PreAsion 24V DC Linear Actuator 150mm（5.9"）with Features
-
Parameter: Input Voltage: 24V DC; Stroke Length: 5.9"(15 cm); Min Installation Dimension:L=S+175 mm; Max Installation Dimension: A= 2S+17 5mm;Max Push Load: 6000 N (132 0lbs);Max Pull Load: 4500 N (990 lbs); Speed : 5~7 mm/s; Operating frequency: Max 25%; Duty Cycle: 25%; Protective Class: IP54; Operation Temperature: -26~85℃
-
Wide application: The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on
-
Premium quality: Made of aluminum alloy, IP54 protection, is a power unit. Designed with IP54 level protection, with built-in limit switch. High quality metal material, high performance motor, built-in stroke switch. Plastic gear: smooth transmission, wear - resistant, high transmission torque.Pure copper core: low heating, long service life and more stable performance
-
Quiet work: This linear actuator works with Max. 48 db sound, quiet on working, not to create annoying sound. Built-in limit switch, stop at any position in the stroke. The design adopts IP54 grade protection, with certain waterproof and dustproof function
-
Easy assembly: Easy to install, all accessories included.Screw washer design, specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safety
