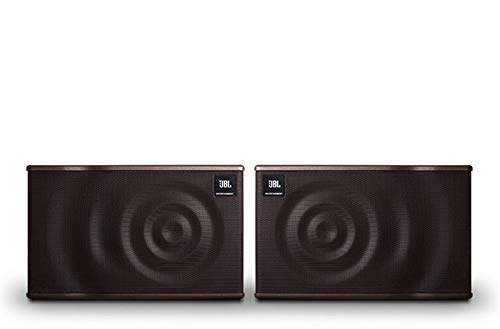

JBL Professional Mk Series Passive 2-Way Full-Range Loudspeaker System (12 Inch (MK12) 250 W/500 W/1000 W)

Pay with

JBL Professional Mk Series Passive 2-Way Full-Range Features

• MK12 is a 2-way full-range loudspeaker designed by JBL for KTV boxes. It uses a 12" woofer and two 3" tweeters to realize exceptional acoustic performance - high power, low distortion, and remarkable electro-acoustic conversion efficiency.

• Specially designed 12" woofer fitted with demodulating aluminum ring for high power handling, low distortion and minimum power compression. The system has a Peak power of 2000W (1000W each), program power of 1000W (500W each) and Continuous power of 500W (250W each)

• High-efficiency 3" paper cone tweeters provides excellent high-frequency response. They are able to reproduce high notes bright, smooth and with excellent dispersion. Frequency Range (-10 dB) 45 Hz - 17 kHz, Frequency Response (±3 dB) 60 Hz - 14 kHz.

• V-shape cabinet to support the tweeters further improves the coverage and sensitivity. PSL (Passive Sound Lighting) Technology illuminates JBL ENTERTAINMENT logo and showcases JBL's devotion to innovation.

About JBL Professional Mk Series Passive 2-Way Full-Range

FEATURES1. A true 3-way full range loudspeaker designed for KTV application2. Linear suspension and vented yoke design for 10” woofer effectively reduce distortion and power compression3. Optimized 5” paper cone squawker realizes better midrange vocal reproduction4. 1” aluminum dome tweeter delivers optimal high frequency response5. Precision engineered crossover for accurate and optimal frequency response6. Built-in protection circuit protects high frequency driver from excess power without interrupting performance7. Venting port is designed to the side for versatile installations8. PSL (Passive Sound-Lighting) Technology indicates JBL devotion to scientific advancement APPLICATIONSKaraoke sound reinforcementClub live sound reinforcementHigh-performance satellite speaker for use with subwoofers SPECIFICATIONSSystem Type: 12′′, 2-way, bass-reflexFrequency Range (-10 dB) *1 45 Hz - 17 kHzFrequency Response (±3 dB) *1 60 Hz - 14 kHzSystem Sensitivity (1w / 1m)*1 91 dBNominal Impedance 8 OhmsMaximum SPL 115 dB (121 dB peak)Power Rating*2 (Continuous/Program/Peak) 250 W / 500 W / 1000 WCoverage Pattern 100° x 90° (H x V)Dimensions (H x W x D) 350 mm x 575 mm x 355 mm (12.2 in x 20 in x 13.4 in)Net Weight 24.8 Kg (54.7 lbs)LF Driver 1 x 12″ wooferHF Driver 2 x 3&Prime aluminum dome tweeterInput Connectors Binding postEnclosure Construction Vinyl covered 15 mm MDF
