Automotive Tester PCE-at 5 to Measures Revolutions in Two and Four Stroke Engines from PCE Instruments

Pay with

Automotive Tester PCE-at 5 to Measures Revolutions Features

• Measures revolutions in all common combustion engines with electric ignition starters

• Compatible with one-cylinder two-stroke engines as well as eight-cylinder four-stroke engines

• 1.1 m / .04 in cable with inductive clip to be placed on ignition cable

• 6-digit backlit LCD display and flashlight functionality for low-light applications

• Durable ABS plastic housing ensures longevity

About Automotive Tester PCE-at 5 To Measures Revolutions

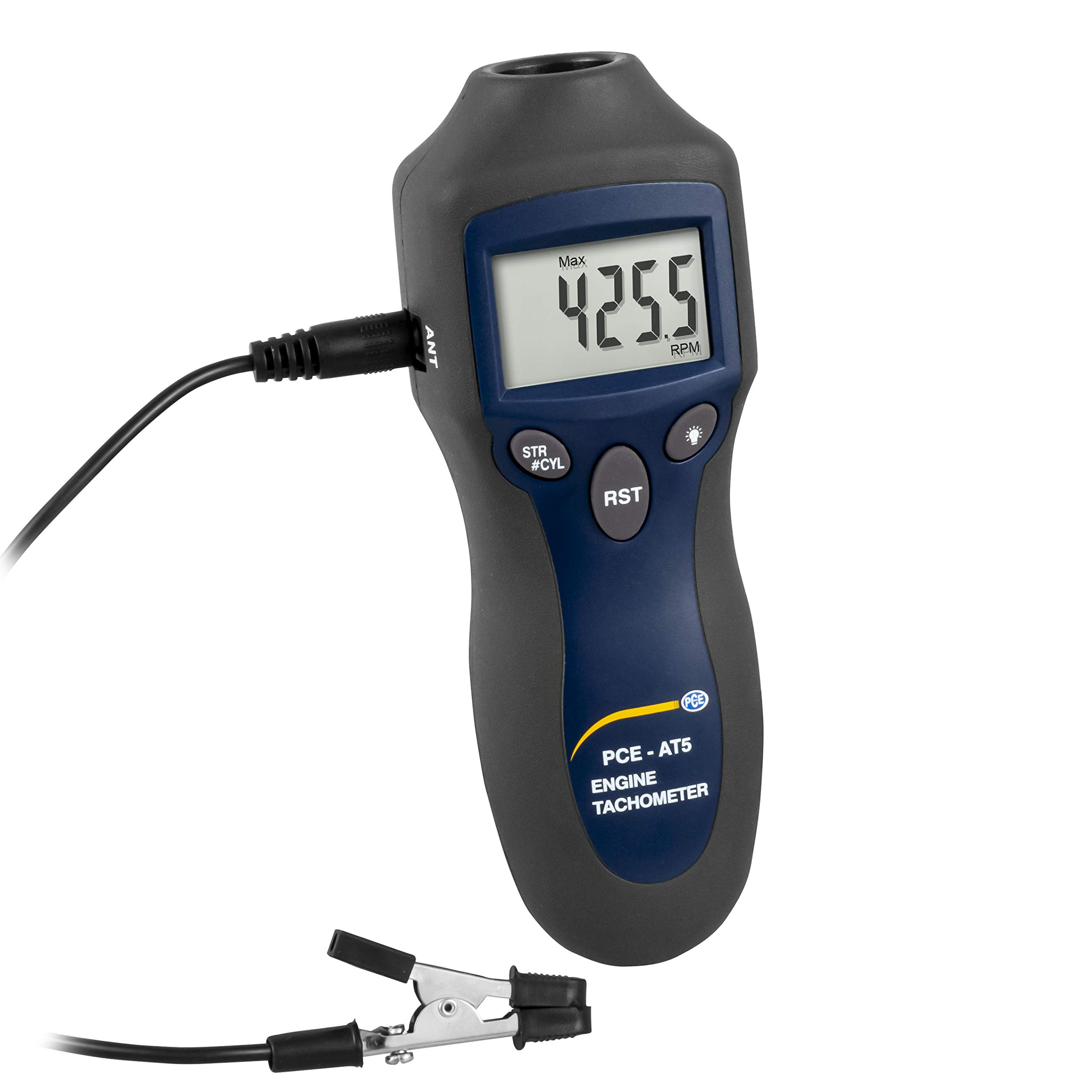

The PCE-AT 5 Car Measuring Device is a mobile and handheld device to measure revolutions in combustion engines with electric starting. In The PCE-AT 5 Car Measuring Device big digital display the readings of diverse settings (frequency/cylinders) and revolutions are quickly and clearly displayed. With the inductive clip on the ignition cable revolutions are tested in a few seconds. Thanks to its compact size, the PCE-AT 5 Digital Car Measuring Device is a versatile tool which can be used in other places besides workshops. The Car Measuring Device for combustion engines can be used for two stroke engines with a cylinder (motorbike, etc..) as well as for four stroke engines with eight cylinders. This Car Measuring Device can be used for professional engineers as well as for first-time engineers thanks to its versatility. You will be able to choose between display illumination or using the lantern unit to work in low illumination places. The PCE-AT 5 is delivered with a battery. Technical Specifications Measurement range 100 ... 20000 r.p.m. Resolution 1 r.p.m. Accuracy ± 10 R.P.M. Measurement interval 0,5 s Power 1 x 9 V battery Operating temperature 0 ... +50 ºC Case ABS plastic Display 22 mm LCD display with 6 digits Dimensions 160 x 58 x 39 mm Weight 177 g Delivery contents 1 x PCE-AT 5 car measuring device for engines, 1 x battery, cable with an inductive clip, user's manual
