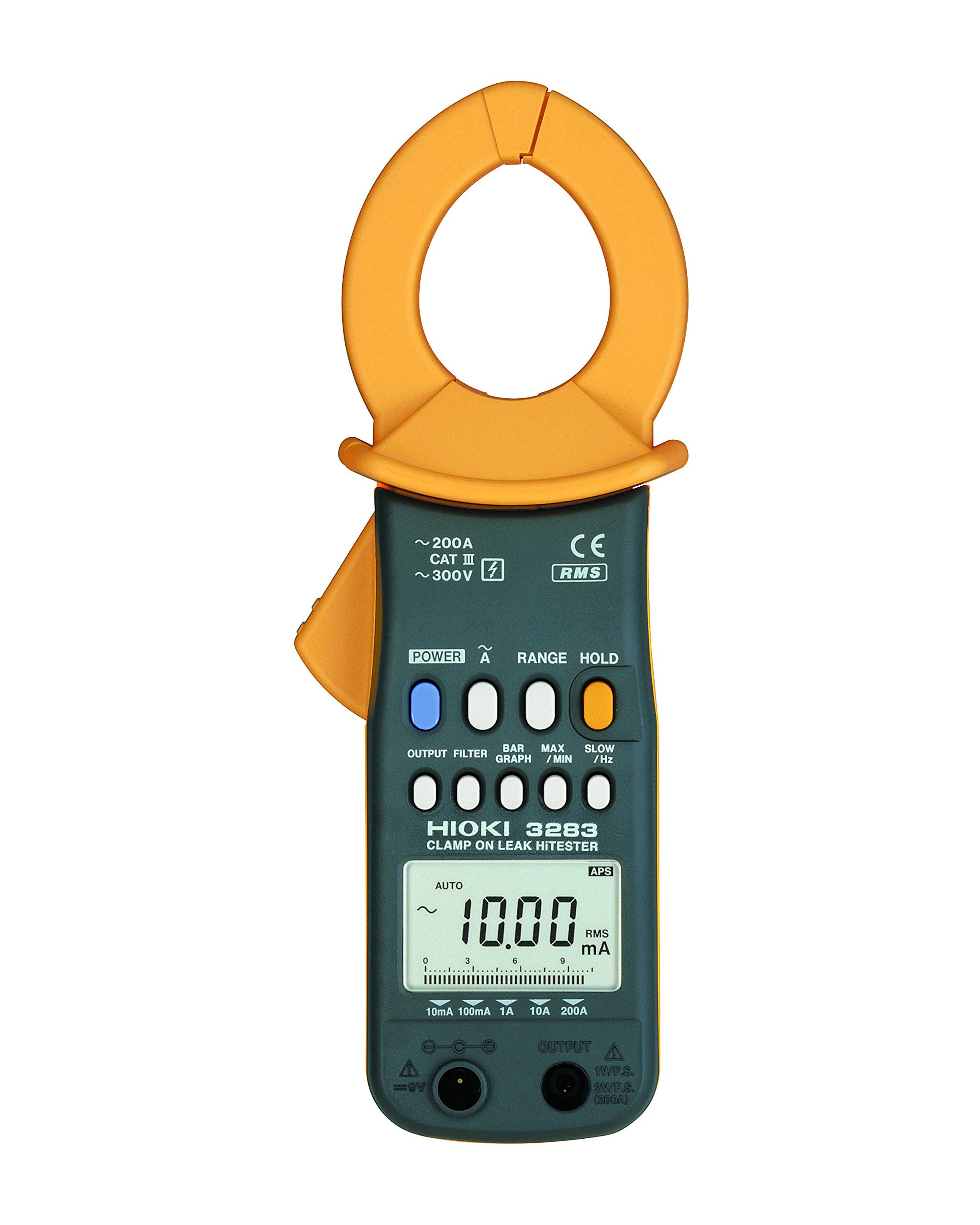

Hioki HiTester 3283 True RMS Clamp-Meter, 10mA to 200A AC Leakage Current, Conductors to 40mm, Frequency Measurement
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Hioki HiTester 3283 True RMS Clamp-Meter, 10mA to Features
-
Digital clamp-meter measures leakage AC from 10mA to 200A and frequency to 1,000Hz
-
True RMS sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveform
-
Clamp with 40mm (1.57 inches) jaw opening measures current without touching or interrupting the circuit
-
Low-pass filter reduces high-frequency interference to allow accurate measurements of complex waveforms
-
Meets EN safety standards 61010-1 and 61010-2-032, and is rated for CAT III installations to 300V
About Hioki HiTester 3283 True RMS Clamp-Meter, 10mA To
The Hioki 3283 digital clamp-meter is a true RMS sensing, manual- and auto-ranging multimeter for measuring leakage AC (alternating current) and frequency to check the condition of conductor insulation in electrical testing applications. It has a clamp that measures AC from 10mA (milliamperes) to 200A and frequency to 1,000Hz (hertz). The clamp has two jaws that can close around an electrical conductor up to 40mm (1.57 inches) in diameter to measure current without touching or interrupting the circuit. The meter has a 2,000-count LCD that shows the reading numerically and in a 35-segment bar graph. It features a low-pass filter that reduces high-frequency interference to allow accurate measurement of complex waveforms. To enable readings of rapidly fluctuating current, the slow function reduces the display update rate from four times per second to once every three seconds. The record function displays the maximum, minimum, and average readings for a property after the function is engaged. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the most recent reading on the display after disconnecting from the circuit. An output jack allows connection to a compatible level recorder for monitoring leakage current over time. The Hioki 9094 output cord (sold separately) is required to connect the meter to the level recorder. The unit operates on a single 9V 6F22 battery or an AC adapter (sold separately), and turns off automatically after 10 minutes of non-use to conserve battery life. It has a low-battery indicator that signals when the battery needs to be replaced. This true RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of the waveform. It has two ranging modes: manual, which allows the user to select the operating range, and auto, which automatically selects the appropriate operating range. Accuracy and resolution specifications vary according to the range being measured. The meter meets EN (European Standards) safety standards 61010-1 and 61010-2-032, and is rated for CAT (category) III installations to 300V, which covers equipment in fixed installations, such as switches in the fixed installation and some industrial equipment that is permanently connected to the fixed installation. It has CE (European Conformity) marking. The unit comes with a carrying case. Specifications Maximum AC (alternating current) input200AMaximum frequency detected1,000HzInstallation ratingCAT III, 300VStandards metEN safety standard 61010-1 and 61010-2-032; CE markingPower supply 9V 6F22 batteryWeight400g/14.1oz.Dimensions (H x W x D)225 x 62 x 39mm/8.86 x 2.44 x 1.54 inches H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Clamp-meters, also called clamp-on meters, have two jaws that fit around a conductor to measure electrical current without cutting through wires, or touching or interrupting the electrical circuit. Available in handheld or benchtop models, clamp-meters diagnose problems in electrical equipment, wiring, and power supplies. All clamp-meters test for current. Some come with test leads and inputs for measuring voltage, capacitance, and resistance. They display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating. Hioki manufactures memory recorders, automatic test equipment, and electronic testing and
