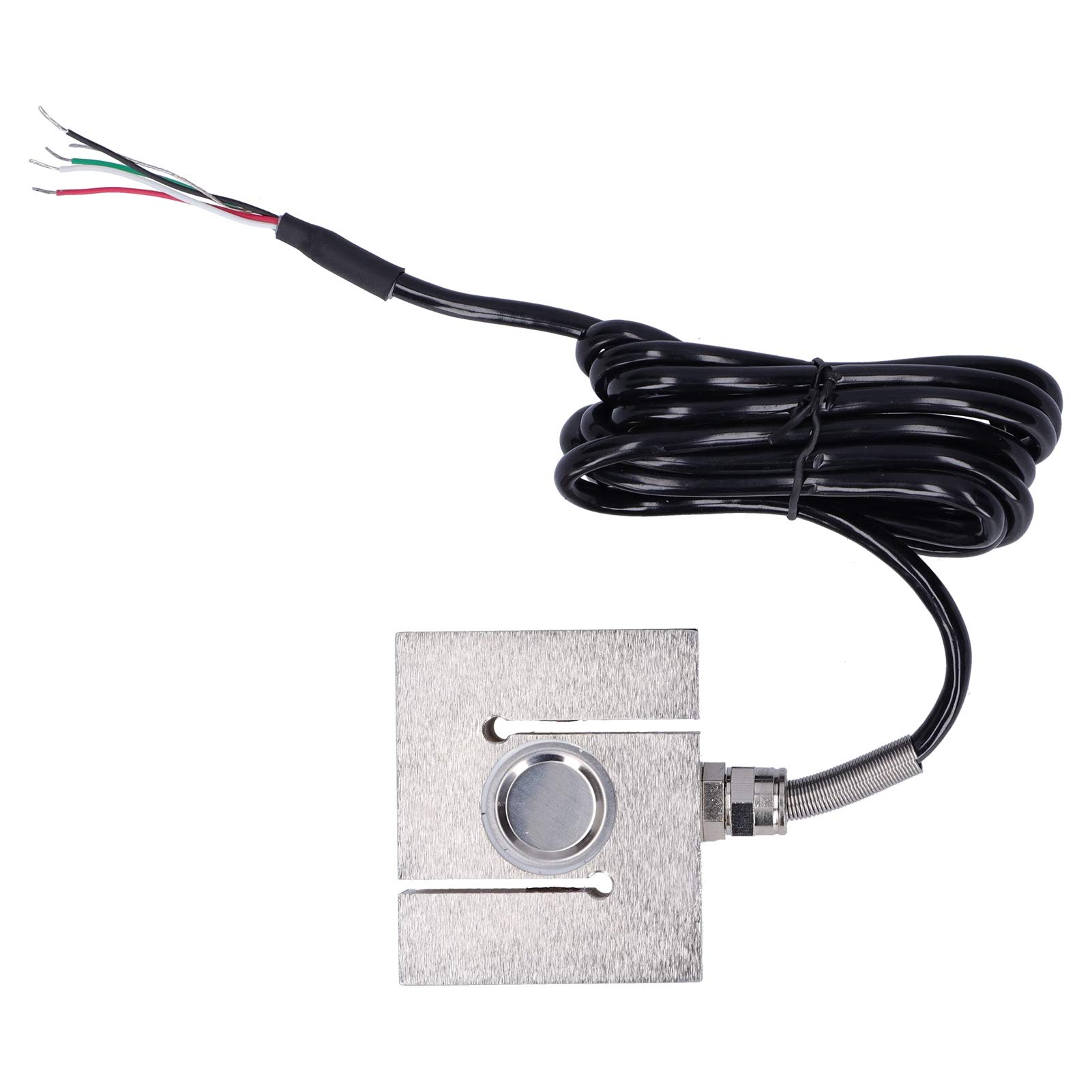

Hilitand S Type Load Cell Scale Sensor DYLY-104 DC 5-15V High Precision Pull Pressure force Sensor for Tension Weighing(200KG)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Hilitand S Type Load Cell Scale Sensor DYLY-104 DC Features
-
40cr alloy steel: The pull and pressure sensors are made of high quality 40Cr alloy steel, with powerful mechanical fatigue, high stability.
-
Detail: Input : 350 ¡À 20¦¸, output : 350 ¡À 5¦¸, insulation : ¡Ý 5000mq (50VDC). Zero temperature coefficient: ¡À 0.05% F ¡¤ S / 10 ¡ã C, sensitivity temperature coefficient: ¡À 0.05% F ¡¤ S / 10 ¡ã C.
-
Can be used for a long time: The strain sensor has excellent performance, after aging test, long-term stability.
-
Performance: The DYLY-104 sensor has high , bidirectional tension and compression force measurement of low temperature drift, waterproof connector with spring buffer.
-
Applications: Widely used in power measurements in industrial systems, mainly for industrial automation measurements and control systems, used to measure tension and pressure measurement
About Hilitand S Type Load Cell Scale Sensor DYLY-104 DC
Specification: Item Type: Pull Pressure Force Sensor Material: 40Cr alloy steel Model: DYLY-104 Pressure Type: Strain sensor Power Supply Voltage: DC5-15V Output Sensitivity: 2.0mv/v Non-Linearity: ±0.05%F·S Lag: ±0.05%F·S Repeatability: ±0.03%F·S Creep: ±0.05%F·S/30min Zero Output: ±1%F·S Zero Temperature Coefficient: ±0.05%F·S/10℃ Sensitivity Temperature Coefficient: ±0.05%F·S/10℃ Working Temperature Range: -20℃~+80℃ Input : 350±20Ω Output : 350±5Ω Overload: 150%F·S Insulation : ≥2000MQ (100VDC) Package List: 1 x Pull Pressure Force Sensor
