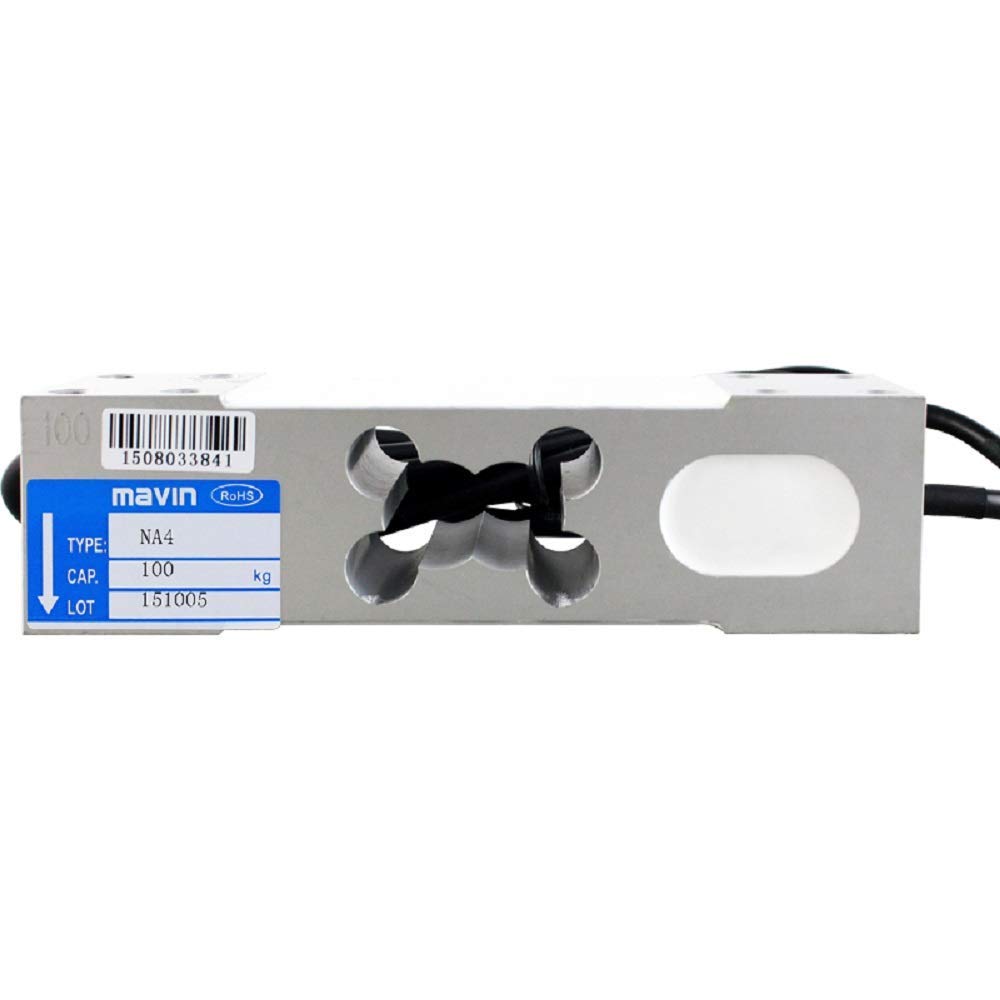

Single Point Beam Load Cell Compression Force Testing Platform Scale Sensor NA4-100KG

Product ID : 46189887

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 46189887

UPC / ISBN 742089517733

Shipping Weight 1.57 lbs
I think this is wrong?

Model NA4-100KG

Manufacturer CALT

Shipping Dimension 7.2 x 4.06 x 2.76 inches
I think this is wrong?

See more product information!

-

₱ 3,111

Price Tracker

+ ₱ 735
International Shipping

via AIR

Get it between 2024-05-16 to 2024-05-23. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

Single Point Beam Load Cell Compression Force Features

• Maxi weighting capacity is 100KG

• 150mm*45mm*40mm size

• 5~12Vdc excitation volage, 2mV/V Rated output

• IP66/IP67 protective grade

• Widely used in size small computing scales

About Single Point Beam Load Cell Compression Force

Characteristics & Usage 1. Seal, wide range, high precision, stable and reliable; 2. High strength, easy to install and use, applicable to a variety of measuring force; 3. Weighing industrial automation measurement and control system. Technical Parameter Sensitivity: 2.0mV/V±5%  Nonlinear:≤±0.02%F.S  Hysteresis: ≤±0.02%F.S  Repeatability: ≤±0.02%F.S  Creep: ≤±0.02%F.S/3min  Temperature coefficient of sensitivity: ±0.002%F.S/℃  Operating temperature range:-20℃～+60℃  Input resistance: 410±15Ω Output Resistance: 350±5Ω Safe Overload: ≤150% F.S  Insulation resistance: ≥5000MΩ(50VDC)  Excitation voltage: 5V-12V  Protection grade: IP66/IP67
