WIKA 50372475 General Purpose Pressure
WIKA 50372475 General Purpose Pressure

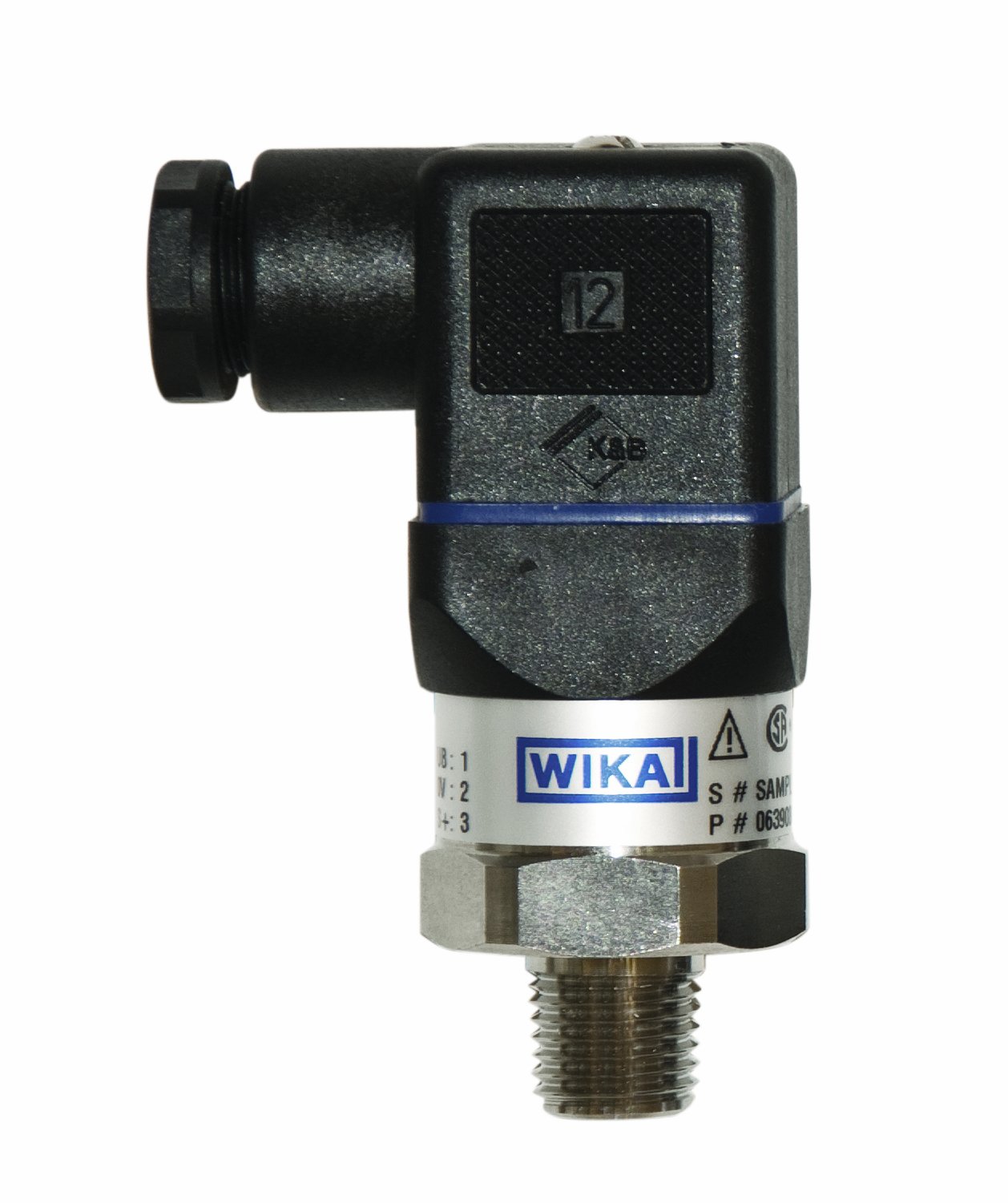

WIKA 50372475 General Purpose Pressure Transmitter, 4 - 20mA 2-Wire Signal Output, Stainless Steel 316L Wetted Parts, 0-100 psi Range, +/-0.5% Accuracy, 1/4" Male NPT Connection

Product ID : 5320550


Galleon Product ID 5320550
Shipping Weight 0.4 lbs
I think this is wrong?
Model 50372475
Manufacturer WIKA
Shipping Dimension 6.61 x 3.5 x 2.01 inches
I think this is wrong?
Brand WIKA
Package Quantity 1
Size 0-100 PSI
-
15,322

*Price and Stocks may change without prior notice
  • 3 Day Return Policy
  • All products are genuine and original
  • Cash On Delivery/Cash Upon Pickup Available

Pay with

WIKA 50372475 General Purpose Pressure Features

  • Fatigue life: 10 million load cycles maximum

  • 316 L case and wetted parts

  • Internal transmission fluid: silicone oil

  • Applicable for mechanical engineering, machine tools, process control and automation, hydraulics and pneumatics, pumps and compressors

  • UL, CSA, GOST Approvals; 200 psi over pressure safety and 500 psi burst pressure


About WIKA 50372475 General Purpose Pressure

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications. Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The stateof- the-art manufacturing and assembly process increases the long term reliability of the A-10. Primary applications include process control and automation, hydraulics, pneumatics and machine controls. Pressure ranges: from 0 - 15 psi up to 0 - 10,000 psi. Non-linearity: +/- 0.5% BFSL ( +/- 0.25% available). RoHS-conformity. CE-conformity: Pressure equipment directive - 97/23/EC; EMC directive - 2004/108/EEC (Group 1, Class B) and immunity according to EN 61 326. Shock resistance: 500g according to IEC 60068-2-27 (mechanical shock). Vibration resistance: 10g according to IEC 60068-2-6 (vibration under resonance). Wiring protection: Overvoltage protection: 32 VDC, 36 VDC with 4-20 mA; Short-circuit protection - Sig+ to UB-; Reverse polarity protection - UB+ to UB-. Test pereference conditions according to IEC 61298-1: Relative humidity: 45-75%; Temperature - 59-77 degree F (15-25 degree C); Atmospheric Pressure - 86-106KPa (25.4…31.3 inhg). Weight: Approx. 2.8 oz. (80 g). Supply voltage: 8-30 DC (14-30 VDC). Process connection: 1/4 NPT Male. Electrical connection: DIN EN 175301-803 (DIN 43 650) with plug connector. 200 psi Over pressure safety and 500 psi burst pressure.
