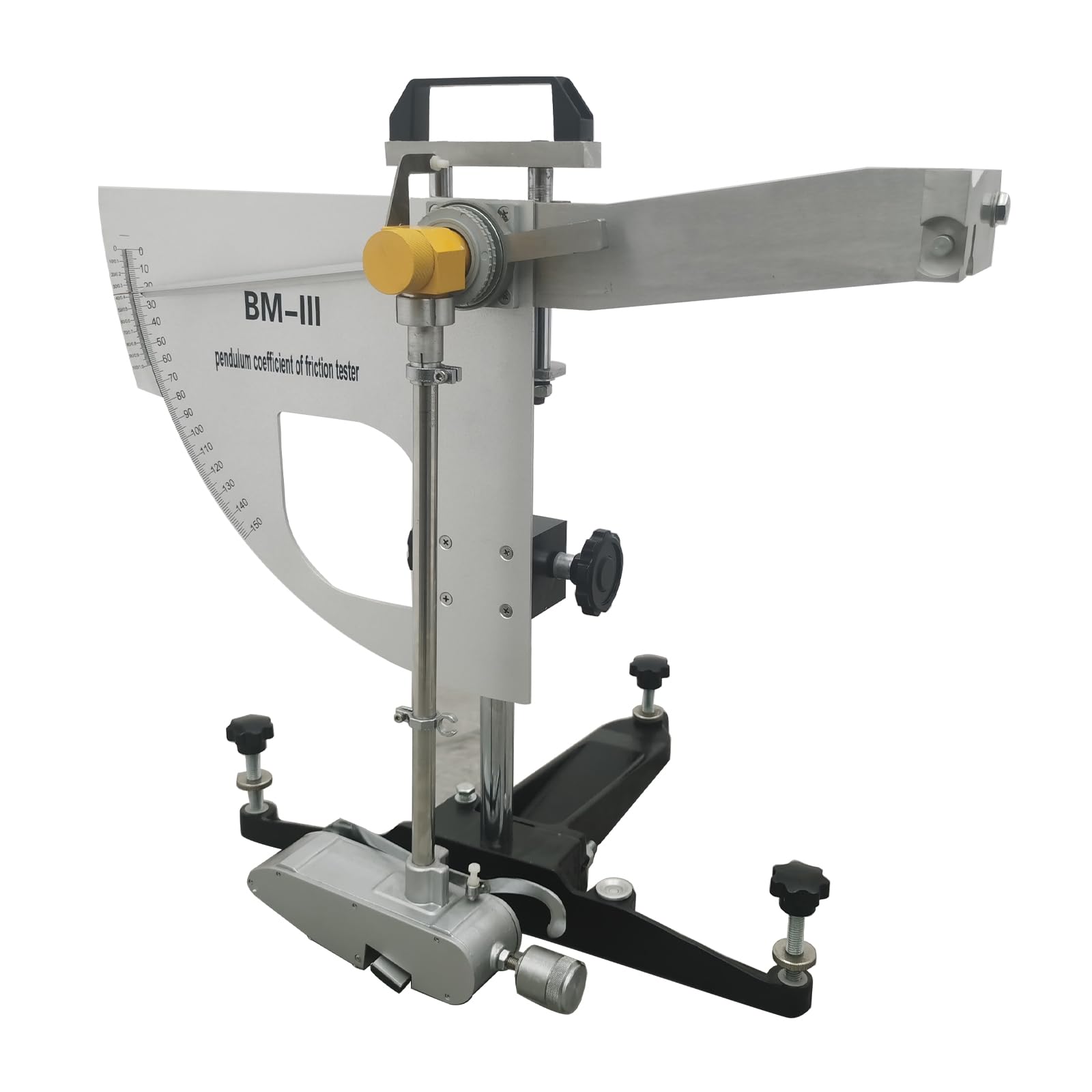

Maisutseb Pendulum Friction Coefficient Tester,Portable Skid Resistance Measuring Instrument,Abrasion Skid Resistance Test for Highway Pavement Road with Scale Distance: 508mm
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Maisutseb Pendulum Friction Coefficient Features
-
Parameter: Rocking torque:615000g.mm；Weight of the pendulum: 1500g(3.3lb)；Gravity moment of the pendulum: 410mm(16.1inch); Scale distance: 508mm;Forward static pressure from rubber sheet to pavement:2263g(5lb);Distance between rocking center to rubber sheet outer edge:508mm(20inch);Net weight:14kg(30.9lb)
-
The pendulum friction tester is characterized by convenient debugging, simple operation, less impact on traffic during measuring, more stable data, and usage in both indoor and outdoor circumstances.
-
High precision, durable material: alloy cast iron base, more corrosion resistant, durable; The pendulum testing tool has high precision, and the pendulum can be dropped freely from the tilt of 5 degrees to the swing stop at least 70 times
-
Pendulum head: comprised of upper lower connector, pendulum rod, spring, lever, lifting handle, hammer shell, slider, rubber piece(76mm*25.4mm*6.35mm), it has specific torque to the swing center, also specific pressure to the pavement.
-
Application of Skid Resistance Tester: 1.Road surface testing2.Testing of new road surface materials under development3.Testing of aggregates in the PSV (polished stone value) test4.Testing of floors and pedestrian walkways5.Flooring materials product development
About Maisutseb Pendulum Friction Coefficient
measuring instrument for the Pendulum Friction Coefficient Meter The pendulum skid resistance tester used for measuring road surface frictional properties. This apparatus come with an adjustable pendulum arm and a spring loaded rubber slider mounted on the end of the arm. The pendulum skid resistance tester is raised and allowed to swing freely during operation, allowing the edge of the rubber slider to skid across the surface of specimen. The pendulum skid resistance tester is released from a horizontal position so that it strikes the sample surface with a constantvelocity. The distance traveled by the head after striking the sample is determined by the friction of the sample surface. A reading of Skid Resistance is obtained.
