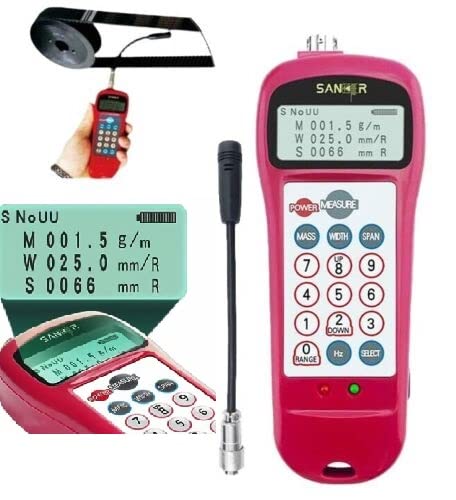

Ultrasonic Belt Tension Meter Measurable Frequency Range 10Hz-5000Hz U-508

Pay with

Ultrasonic Belt Tension Meter Measurable Frequency Features

• 1. It can store 500 groups of measurement data, which is equivalent to a microcomputer;

• 2. Automatically eliminate the interference of noise and noise; With 48 sets of belt data, direct selection;

• 3. With background light design, whether to use background light can be determined according to the place of use;

• 4. The microphone probe has strong sensitivity to low frequency, which can be used for the measurement of large conveyor belt;

• 5. Applicable to the measurement of narrow space;Light and easy to carry;

About Ultrasonic Belt Tension Meter Measurable Frequency

▲Introduction: Through the analog signal processing, the vibration waveform under different conditions can be measured, and the period of the waveform can be read out, and the tension value is converted by the processing of the frequency of the cycle. ▲Calculation formula: Tension value : To = 4 *M *W *S 2 *f 2 *10 -9 N M : Unit mass (when the belt is: g / 1m length * 1mm width per copper wire: g / per 1m length) W : Width (when the belt is: if the belt width is placed in mm units: ‘1 ‘ indicates “1” input) S : Determination of the span length ( mm) f : Number of natural vibrations of the belt according to the sensor being measured ( Hz) ▲Parameters: ▲Display Type: Digital ▲Model Number: U-508 ▲Test Tension Value: 0.01~99900N ▲Frequency Range: 10-5000Hz ▲Data Storage: 500 Groups ▲Power Supply: 2*AAA Batteries (not included) ▲Net Weight (Main Unit): 120g ▲Size: 59*26*160mm ▲Data Interface: Micro USB ▲Probe Size: 12.5*170mm (dia*Length) ▲Application: Test tension force of belt, steel wire, steel band, etc.
