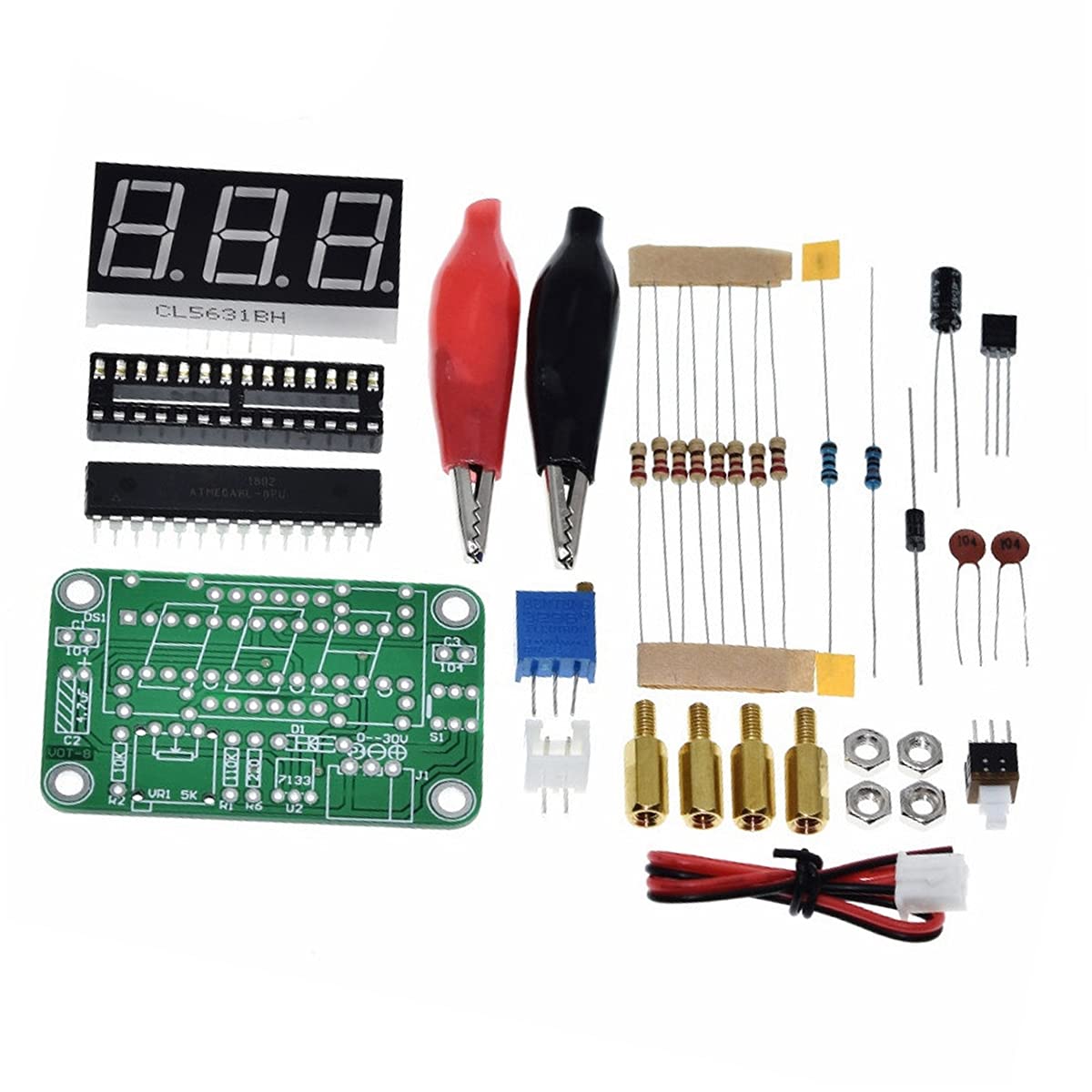

HiLetgo VOT-8 Voltmeter Kit Voltage Meter Electronic Production Suite DIY Kit for Student Electronic Exercise
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
HiLetgo VOT-8 Voltmeter Kit Voltage Meter Features
-
Portable Electrical DIY Set
-
A good exercise for students in electronic production
-
VOT-8 voltmeter kit by the key switch control in two-wire system or in the three-wire state work.
-
Two-wire system (measured voltage is VOT-8 power supply), the measurement range of 3.5 to 25.
-
Three-wire system (a set of 3.5 ~ 25V voltage for the VOT-8 power supply), the measurement range of 0 ~ 30V.
About HiLetgo VOT-8 Voltmeter Kit Voltage Meter
Specification Kit Model : VOT-8 Operating voltage : 3.5 ~ 25V PCB Size : 33 * 52mm Measuring range : 0 ~ 30V Accuracy : 0.1V VOT-8 voltmeter kit consists button switch control can work in two-wire or three- wire system in the state . ( Terminals shipped configured for two-wire ) Two-wire ( measured by the voltage of VOT-8 -powered ) , the measurement range of 3.5 to 25. Three-wire ( from 3.5 ~ 25V voltage of a group of VOT-8 -powered ) , the measurement range is 0 ~ 30V. 2 Then solder capacitors, diodes, potentiometers, etc. Production steps: 1 . The first resistance welding 10 (front three , red back welded box 7 ) . 2 Then solder capacitors, diodes, potentiometers, etc. . 3 button switch welding ( note direction ) . 4 IC socket weld , install from the back of the board. Then weld the front of the board ( cut off the excess pin IC holder to prevent the pin to withstand digital . ) 5 . Install digital 6 Install microcontroller and pillars ( note SCM direction ) 7 production line clip 8 Finally calibrated voltmeter : Voltage profile with a multimeter or a known voltage of the voltage source , adjust the calibration potentiometer VR1 . Note: Please contact us if you need the Schematic. Package Included： 1* HiLetgo VOT-8 Voltage Meter Electronic Production Suite DIY Kit
