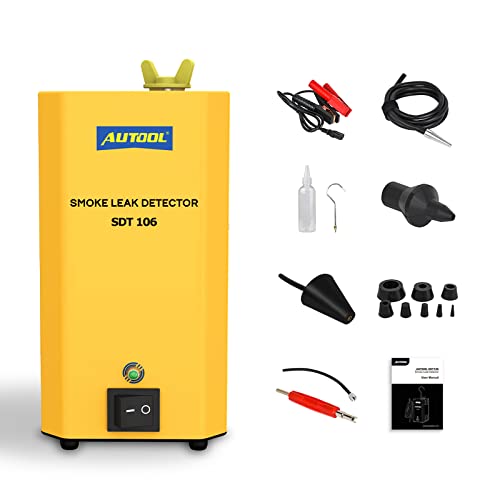

AUTOOL Automotive Smoke Leak Detector Evap Car Pipe Leakage Tester Fuel Leak Locator Universal for Motorcycle/Car/Truck

Pay with

AUTOOL Automotive Smoke Leak Detector Evap Car Pipe Features

• 【Why Need It】For example: 1. The rupture of the vacuum hose will cause the mixture to be too thick, the idle speed will increase, the hot car will not start well, the engine will surge during acceleration, the fuel consumption will increase significantly, and the exhaust pipe will emit black smoke. 2. Blocking will cause the idle speed to drift, and the idle speed is easy to stall. 3. Air leakage in the vacuum tube will cause the engine to run weakly

• 【Wide Testing Range】The smoke leak detector can do smoke testing of multiple systems, such as EVAP systems, Intake Systems, Cooling / EGR /Exhaust Systems, Crankcase Systems, Engine Airtightness, Vacuum Leaks, Low Pressure Turbo leaks.Applicable cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.

• 【Built-in Air Pump】Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money

• 【EVAP Detection】American cars that began production in 1996 are equipped with EVAP service ports; in most American cars, the EVAP service port is usually located in the engine compartment, but the EVAP service port of some special models may be located in other locations. Open the plastic cover of the EVAP service port, then use the spool wrench to remove the check valve clockwise, then install the EVAP service port adapter, and introduce smoke from the port into the EVAP leak detection system.

• 【Stable and efficient】Fill the car pipes with smoke, wait for about 2 minutes, and use inspection lights to assist in lighting, and start to check the system leakage fault points, which is very efficient.

About AUTOOL Automotive Smoke Leak Detector Evap Car Pipe

How to use: 1. Open the engine cover, and hang the detector in the cover. 2. Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple. 3. Secure this side with proper taper stopple/pipe, and connect it with smoke output tube. 4. Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way. 5. Turn on the power switch, and detector starts to work. 6. In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary. 7. After leak detection, please connect well the wires and pipe. 8. Notes: * Please do leak detection away from smoke-sensitive parts. * Do not run the detector over 8 minutes. It needs interval rest. * The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later. * The round parts of this detector is with temperature, be careful to avoid scalding injury. Maintenance With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly. 1. Before filling new oil, please pour out the remaining oil in the detector. 2. When the smoke output has water drops, please replace with new oil. 3. Liquid paraffin and baby oil are OK. 4. Please fill new oil with equipped oil bottle 5. When you use this detector the first time, please fill 20-30ml oil, not beyond this range. Packing List: 1. Main Unit 2. Hook 3. Rubber stopples 4. Taper stopple 5. Taper pipe 6. 30ml oil bottle 7. User manual
