SCULPFUN S30 Pro Max 20W Laser Engraver with Sculpfun TS1 Touch Screen, CNC Laser Cutter with Automatic Air Assist, for Wood Leather Acrylic, Extendable Engraving Area up to 935x905mm
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
SCULPFUN S30 Pro Max 20W Laser Engraver with Features
-

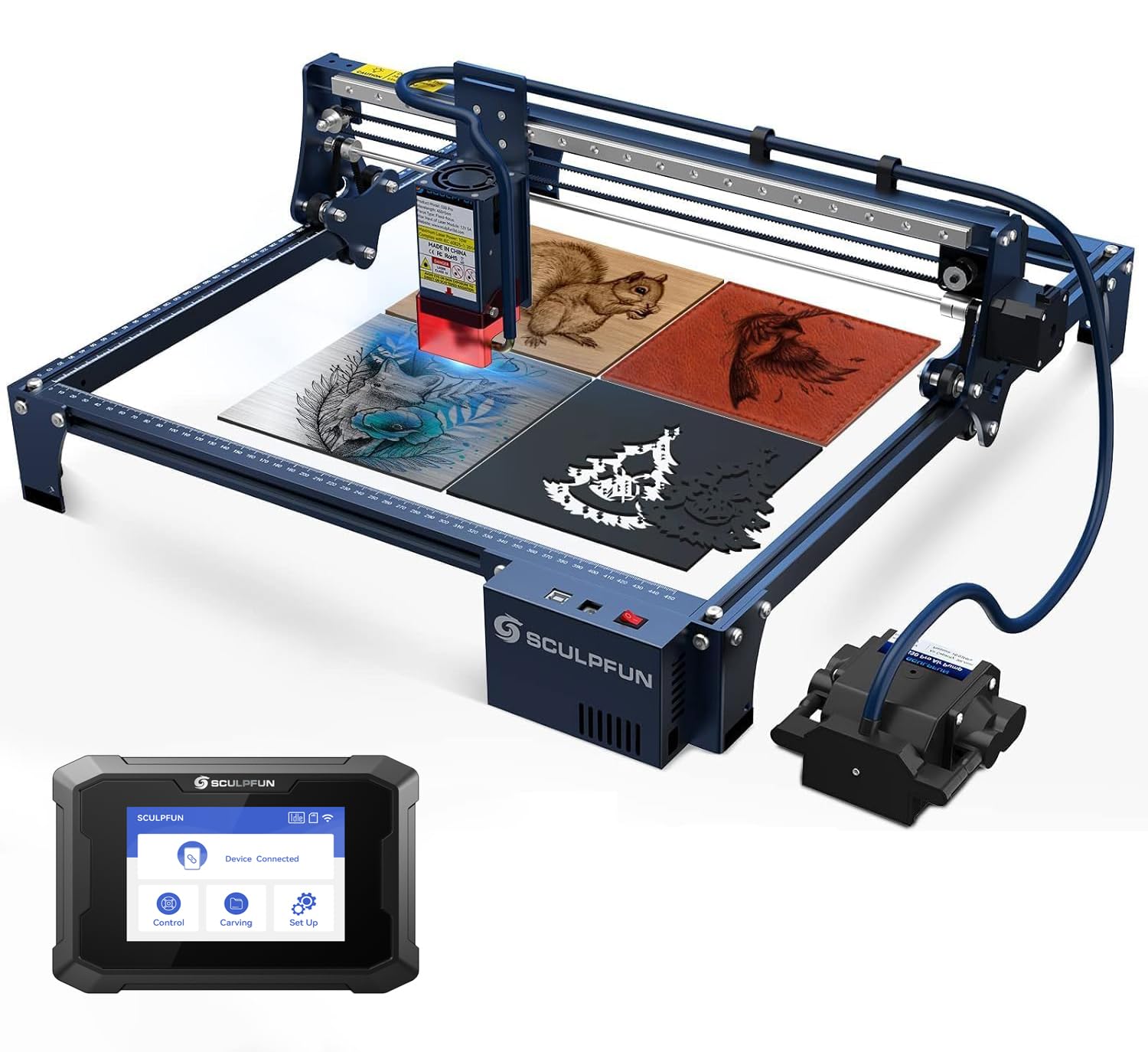

【What You Will Receive】You will receive SCULPFUN S30 Pro Max 20W laser engraver*1 + SCULPFUN TS1 touch screen for laser engraving machine. With the S30 Pro Max laser cutter, you can engrave beautiful patterns and cut on wood, acrylic and other materials, and S30 Pro Max is perfect compatible with this sculpfun TS1 touch screen. The use of the two together can realize the offline completion of the carving work, with SCULPFUN cell phone APP use, but also to achieve without a computer to complete the real-time slicing function, very convenient and fast.
-
【20W High Performance Laser Power】The S30 Pro Max laser engraver equipped with 4 integrated diode lasers with an output power of 20000mW and a laser focus of only 0.08 x 0.10mm, which results in higher energy density, higher cutting penetration and better engraving accuracy. Therefore, it can meet both engraving and cutting needs, making it suitable for professionals, stores or factories.(Laser class: IV, laser output: 20000mW)
-
【Intelligent Automatic Air Assistance】S30 Pro Max is equipped with an automatically controlled air pump and a high pressure metal nozzle which can produce a high pressure air flow of 30 l/min under the air pump. The speed of S30 Pro Max laser engraving machine is 4000mm/min, which is more than 5 times faster than cutting without gas. During engraving, it can intelligently control the air assist switch through the M8 button of Lightburn software to control the pneumatic assist switch to turn off the air assist during engraving and turn it on during cutting, no need to operate it repeatedly.
-
【Expandable Engraving Area】SCULPFUN S30 Pro Max uses innovative expandable XY axis design, although the original area of S30 series laser engraver is 400mm*400mm, so it can extend the area to 935mm*905mm when the original area can not satisfy your creation, such as big paintings on the walls, large size material. This machine can satisfy your requirement of larger working area, making your creation limitless, maximum utilization of laser engraver.
-
【Information about TS1】The SCULPFUN TS1 touch screen offers offline engraving and WiFi connectivity. Simply copy the engraving to the SD card on the touch screen and then complete the engraving job offline through this touch screen. It also gives the laser engraver WiFi capability, which, when used with the SCULPFUN mobile app, enables real-time cutting without the need for a computer. And it can be compatible with S30 laser engraving machine, just connect the USB cable from the engraving machine to the touch screen, then you can use it, which is convenient and fast.
-
【Laser class: IV, laser output: 20000mW】
About SCULPFUN S30 Pro Max 20W Laser Engraver With
Specification: Product model: SCULPFUN S30 Pro Max+SCULPFUN TS1 Information of SCULPFUN S30 Pro Max laser engraving machine Laser Information: Diode laser output power: 20W (note that this is light energy not electrical energy) Laser focus: 0.08x0.1mm Laser wavelength: 455±5nm Focusing method: Fixed focus column + sliding device Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. Power supply: Power Input: 100-240V AC, 50/60Hz Output: 24V 5A Package weight: 7.53kg Packing size: 62.3*24*22.5cm Certification: CE, FCC, RoHS, FDA, ICE certification Machine Information: Engraving accuracy: 0.005mm Engraving area size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm Machine electric power: about 60W Air pump: Type: Mainboard-controlled air pump, voltage 12V, flow 30L/min Air hose inner diameter: 7.5mm Mainboard: 32-bit air-assisted mainboard, reserved for offline control function of Bluetooth and SD card (upgrade package sold separately). Engraving/cutting materials: Engraving material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone. Cutting material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo sheets, leather, some plastic boards, PCB boards. Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support for Windows system, support for MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection. Notes: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding! Packing List: 1 x S30 Pro Max laser 1 x Laser repair kit 1 x 12V Automatic air pump 3 x A4 size 3mm wood board 2 x Limit switches 1 x 12V 5A Power adapter 1 x Power cord 1 x USB cable 1 x Air pipe 1 x Installation toolkit 1 x Laser goggles 1 x A4 Metal backing plate Step 1-6 Installation package 1 x Manual 1 x X-axis assembly 2 x X Profiles 2 x Y Profiles 1 x Control box assembly 3 x Support feet 1×Touch screen 1×Power cord 1×SD card 1×Card reader 1×Manual
