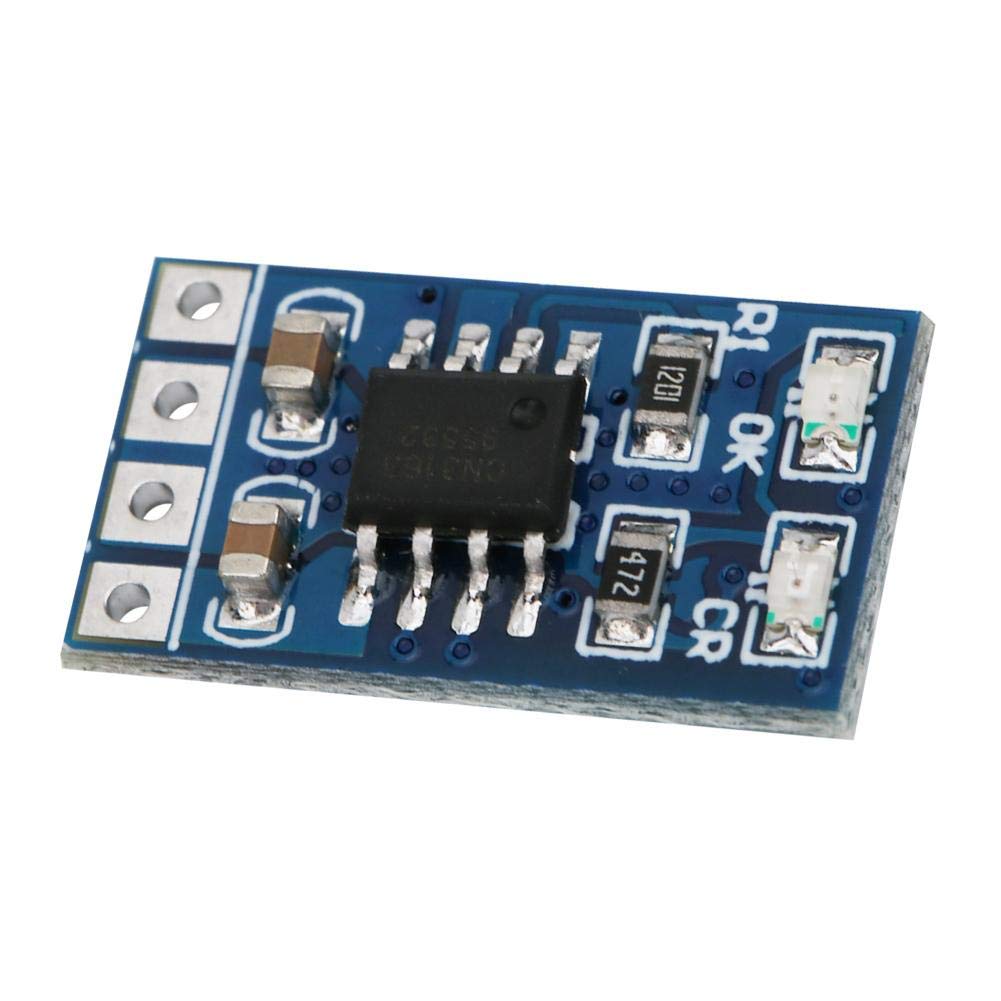

SD05CRMA 4.4-6.5V Input Solar Panel Dedicated Charging Module LiPo Li-ion Lithium Battery Controller Module(without Pin)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
SD05CRMA 4.4-6.5V Input Solar Panel Dedicated Features
-
Lithium battery charger for solar powered system has 4.4-6V power supply voltage and charging output voltage is 4.2V.
-
The solar charger module charger can automatically adjust the charging current according to the output capacity of the input power supply and the maximum charging current/output current is 1A, but you can change the current by changing the value of the R1 resistor.
-
To activate a deep discharge battery and reduce power consumption, use a low current precharge mode when the battery voltage is low to deep discharge batteries and minimize heat dissipation at the initial charging stage.
-
It has constant current/constant voltage with thermal regulation maximizes charging rate without overheating risk.
-
strive to provide you with the highest quality product and the best customer experience, if you're not entirely satisfied, please just feel to us at any time.
About SD05CRMA 4.4-6.5V Input Solar Panel Dedicated
Feature: 1. Lithium battery charger for solar powered system. 2. Power supply voltage 4.4-6V, charging output voltage 4.2V. 3. Maximum charging current/output current is 1A, but you can change the current by changing the value of the R1 resistor. 4. Automatically adjust the charging current according to the output capacity of the input power supply. 5. Precharge adjustment for restoring deep discharge batteries and minimize heat dissipation at the initial charging stage. 6. Constant current/constant voltage with thermal regulation maximizes charging rate without overheating risk. 7. Automatic low power sleep mode when the input power voltage is removed. 8. C/10 termination. 9. Automatic recharge. 10. Battery overvoltage . Specification: Item Type: Lithium Battery Solar Module LED Indicator: ''CR'' LED is status indicator; ''OK'' LED is fully charged OR constant voltage mode Dimension: 18x10.16x2.7mm Options: with Pin, without Pin Weight: 0.9g(with Pin), 0.6g(without Pin) Instruction: The adaptive unit on the module can adjust charging current automatically based on the output capability of input power supply, so it is ideal for the solar-powered systems, or the applications that need to lithium-ion battery or lithium polymer battery with an input power supply whose output capability is limited. If your solar panel is 5V, then you can use it directly. Of course, the module can also be powered by a 5V power supply. Package List: 1 x Solar Module
