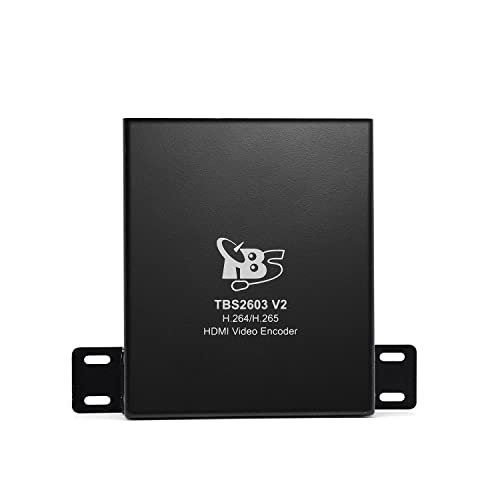

HD HDMI Encoder, TBS2603V2 NDI|HX H.264 / H.265 Video Encoder Support RTSP RTP RTMP HTTP UDP SRT HLS(m3u8) Protocol for IPTV Video Conference
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
HD HDMI Encoder, TBS2603V2 NDI|HX H.264 / H.265 Features
-
NDI|HX: Use a high efficiency, low bandwidth form of NDI, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices
-
H.265/H.264 HDMI ENCODER: supported H.264/H.265 HDMI video Encoder, It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format
-
PROTOCAL: Compliant with HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT protocols
-
WIDELY PERFORMANCE: Can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries
About HD HDMI Encoder, TBS2603V2 NDI|HX H.264 / H.265
Features: Visual input (Preview) HDMI video input, H.264/H.265 Encode NDI|HX streams output HDMI-embedded & Line-in Audio input AAC-HE, AAC-LC, MP3, g.711 audio encoding Bitrate of output video stream is adjustable from 500kbps to 20Mbps Support HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT Support NDI | HX2 ROI (Regin of Interest) Support Video Rotate, Video Crop Support inserting Logo, Text/Scrolling and Time Code Display to the video Support Input Preview Support HDCP and HD blue-ray Flexible and friendly webpage control Stable and effective, support 7 x 24h working time Video Video Input: 1x HDMI 1.4 Input Resolution: 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576; 640x480, etc. Ouput Resolution: 1920x1080; 1280x720; 1024x768; 960x540; 850x480; 720x576; 720x480; 640x480; 640x320; 320x180. Codec: H264 Baseline/H264 Main/H264 High Level 4.2; H265 Main Level 4.1 Frame Rate: 5 ~ 60 fps Key Frame: 5 ~ 200fps BitRate: 0.5Mbps ~ 20Mbps BitRate Control: CBR, VBR Protocol: HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast/Multicast, RTMP/RTMPS, SRT, NDI|HX Audio Audio Input: HDMI embeded, Line in Encode: AAC(AAC-LC, AAC-HE), MP3, G.711 Sampling precision: 16 bit BitRate: 24Kb/s ~ 320Kb/s System Ethernet / RJ45: 1000 Base-T Ethernet interface Supported System: Windows XP/VISTA/SERVER/WIN7/WIN10; Linux; MAC OS Control: Web UI. Recommended Browser: Google Chrome, Firefox
