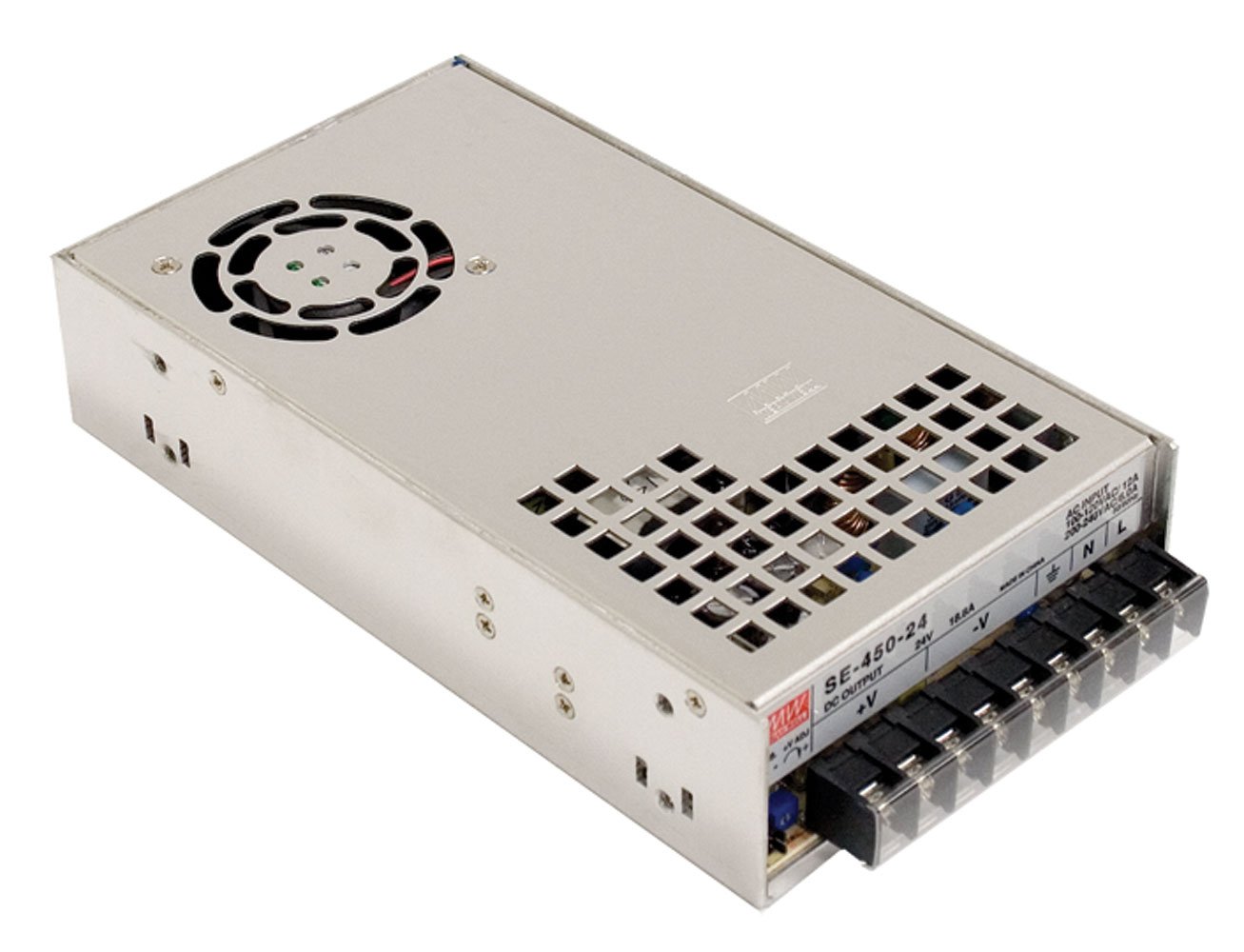

MEAN WELL SE-450-24 AC-DC Power Supply Single Output 24V 18.8 Amp 451.2W

Pay with

MEAN WELL SE-450-24 AC-DC Power Supply Single Features

• Primary output voltage (vdc): 24

• Output current (a): 18.8

• Maximum output power (w): 451.2

• Family: se-450

• Input voltage (vac): 90 to 264

About MEAN WELL SE-450-24 AC-DC Power Supply Single

451.2W AC/DC enclosed switching power supply 24Volts 18.8Amps specifications: size (L x W x H) (inches): 8.9 x 4.9 x 2.0 ripple and noise (mV p-p): 200 load regulation: 0.5 percent line regulation: 0.2 percent input: 90-264vac 47-63hz universal AC input protections: short circuit/overvoltage/over temperature/overload 2-year warranty certifications: UL detailed specifications: primary output voltage (VDC): 24 output current (a): 18.8 maximum output power (W): 451.2 family: se-450 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 10 output connector Type: screw terminal block number of outputs: 1 product Type: AC to DC power supply efficiency ( percent ): 86 minimum isolation voltage: 3000V operating temperature-min (CEL): -10 operating temperature-max (CEL): 60 Length (inch): 8.9 width (inch): 4.9 height (inch): 2 agency approvals: UL color: silver Type: switch selectable style: enclosed.
