Atlona 1X3 Component with Audio Distrib

Pay with

Atlona 1X3 Component with Audio Distrib Features

• ATLONA 1X3 COMPONENT WITH AUDIO DISTRIBUTION AMPLIFIER

About Atlona 1X3 Component With Audio Distrib

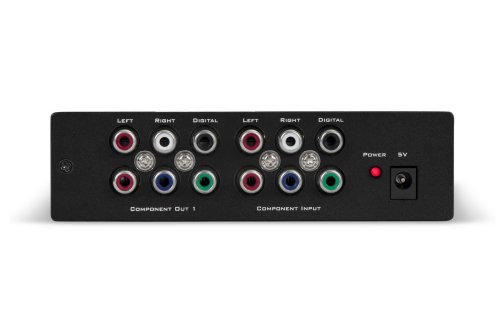

AT-COMP-13AD Features: -Plug and play.-6 Foot component cable.-Accepts one component with audio input and splits.-Supports SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal.-Video system: NTSC or pal compatible.-Differential gain: 005pct.-Differential phase: 005 Degree.-Audio input: Coaxial (S/PDIF) x 1 + R/L x 1.-Audio output: Coaxial (S/PDIF) x 3 + R/L x 3.-Video output: YPbPr x3, or RGsB(or RGBHV) x3, or composite 3x3.-Input to 3 identical and buffered outputs.-Resolutions supported: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Specifications: -1x3 Component with audio splitter.-480MHz high bandwidth performance.-Analog audio input/output: Audio 2 Vrms maximum 47k ohm.-Video input: YPbPr x1 or RGsB x1 (or RGBHV), or composite x3 1 Vp-p@ 75 ohm.-5 Volts universal power supply: 110 and 220 Volts.-Horizontal/Vertical sync 5Vp-p max and H frequency 10KHz 100KHz, V frequency 20Hz 200Hz. Dimensions: -Video bandwidth: 480MHz (-3dB). Collection: -Professional collection. Warranty: -Manufacturer provide 3 year warranty for parts and labor.
