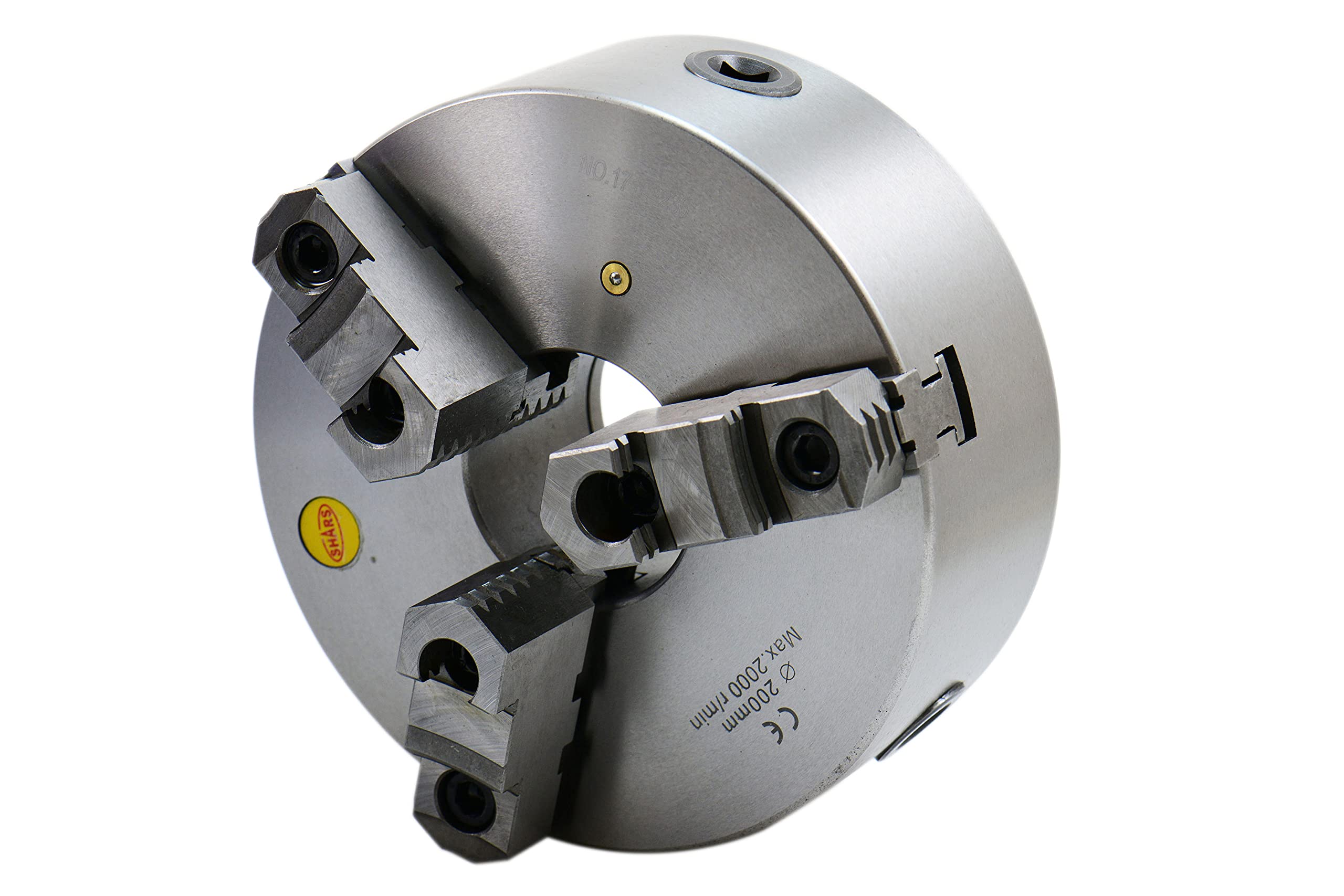

Shars 8 Inch 3 jaw Self Centering Scroll Lathe Chucks 2 Piece Reversible Jaws 202-5434 R[
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Shars 8 Inch 3 jaw Self Centering Scroll Lathe Features
-
Part# 202-5434
-
A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck. For detailed information, please look for the Shars back plate machining guide.
-
CHUCK DIAMETER: 8"
-
Two piece jaw configuration with a master jaw and a top reversible jaw in American Standard tongue and groove
-
Before assembling the jaw to its designated chuck the jaw's finishing machining operation are done on closed tolerance CNC machine
-
Scroll plate's thread flank are ground on both sides to achieve tighter contact with the master jaw
About Shars 8 Inch 3 Jaw Self Centering Scroll Lathe
To achieve the .0005" radial runout and repeatability, it's required to use the 4 micro adjustment set screws to true the designated ground bar stock, not the chuck body. Do not attempt to put the indicator on the outside diameter of the chuck body to dial it to zero first as this would create more runout on the bar stock. The adjustable chuck is intended to give high repeatability clamping on a particular bar stock size after the set screw adjustment. After the adjustment is made on a particular bar stock rod, for example 1/2", it's required to true the bar stock again when clamping a different size diameter, for example 1".
