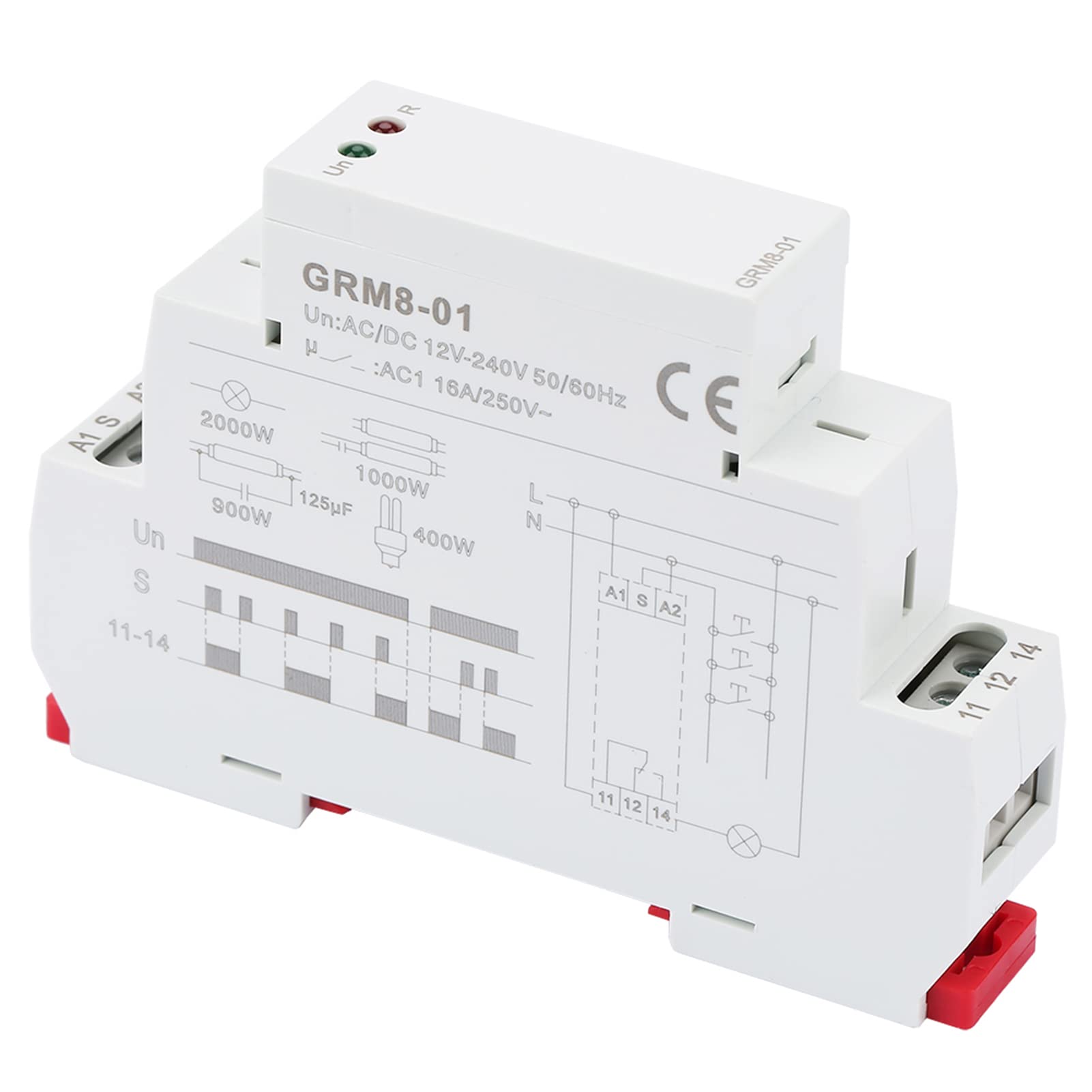

Multi Point Control Impulse Relay, AC/DC 12-240V Features
-
Relay working status is indicated by LED indicators.
-
Simple structure, easy to wire and mount.
-
With small volume, only 18mm width, 35mm DIN rail mount.
-
Stable performance, long service life.
-
This impulse relay can achieve multi point control by impulse commands.
-
-
-
-
-
About Multi Point Control Impulse Relay, AC/DC 12-240V
Features: 1. This impulse relay can achieve multi point control by impulse commands. 2. Relay working status is indicated by LED indicators. 3. With small volume, only 18mm width, 35mm DIN rail mount. 4. Simple structure, easy to wire and mount. 5. Stable performance, long service life. Specification: Model: GRM8-01 Power terminal: A1-A2 Rated power supply voltage: AC/DC 12-240V (50-60Hz) Power consumption: AC0.09-3VA/DC0.05-1.2W Supply voltage tolerance: -15%; +10% Power indicator: Green LED Control terminal: A1-S Control width: Min. 25mm Output 1 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: 200ms Working temperature: -20?~55? Mounting method: 35mm DIN rail Mounting altitude: ?2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Weight: Approx. 73g/2.6oz Package List: 1 * Electronic Impulse Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
