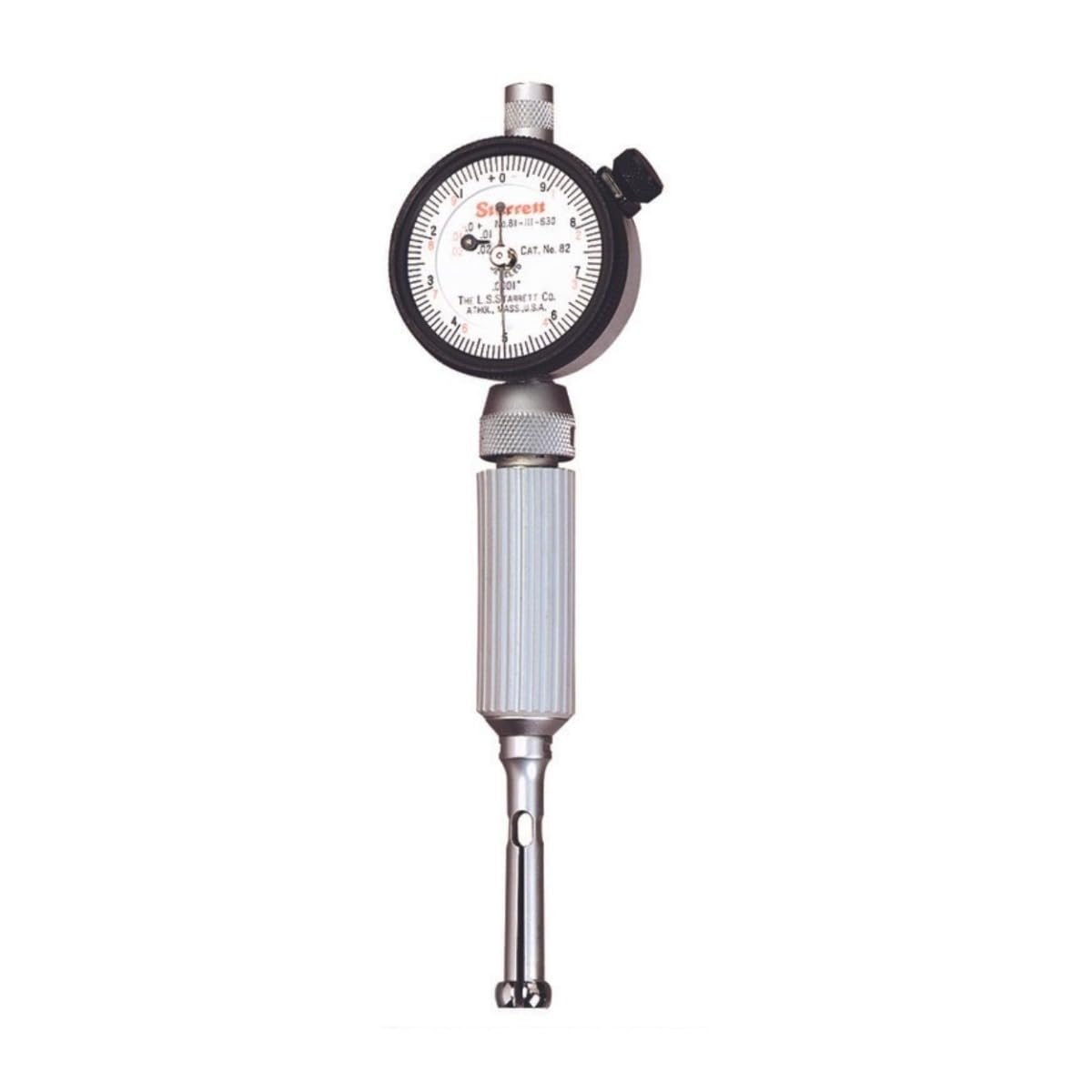

Starrett 82 Dial Bore Gage with Vinyl - Steel Case and Split Ball Contacts - .217-.594" Range, .0001" Graduations - 82BZ

Pay with

Starrett 82 Dial Bore Gage with Vinyl - Steel Case Features

• Ergonomic Design - These dial bore gages are designed with your comfort in mind. The non-slip grip and light weight make it easy to use for long periods of time.

• Durable Construction - Our dial bore gages are built to last, withstanding even the most rigorous use. They're perfect for industrial or commercial applications.

• Wide Range Of Selection - It offers a variety of each of the major classes; mechanical dial, electronic display, lever style test, and back plunger. Each type has its own unique strengths.

• Made For You - It offers everything you need, including a broad line of each indicator type, an extensive range of accessories to configure and position the gauge, and as needed, an indicator-based, custom-engineered solution.

• The Finest Quality Available - Starrett indicators and gages have been the go-to choice for precision measurement for over a century. Our tools are carefully crafted to provide the most accurate readings possible.

About Starrett 82 Dial Bore Gage With Vinyl - Steel Case

The Starrett 82BZ bore gage set includes dial indicator, body, actuating rod, two adjusting wrenches, six probes, and protective case. The bore gage range is 0.217 to 0.594”, with maximum bore depth of 1-1/2” on probes up to 0.405” and 1-3/4 on probes up to 0.594”, with indicator graduations of 0.0001”. The two-point contact measurement system is suitable for detecting hole geometry problems like taper, bell-mouth, and ovality. The split-ball contact is self-centering, and the interchangeable probes are hard chrome-plated and polished, for precision and durability. This bore gage can be used for testing tolerance without removing the workpiece from a machine. Bore gages measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gages are typically calibrated with a setting ring. Bore gages come in two types, one simple, and the other direct-measuring. Simple bore gages are used with a caliper to transfer the hole measurement, while the more complex gages take the measurement directly, and display the measurement through a vernier, dial, or digital display. Bore gages have a two- or three-point contact, which indicates how many points on the gage head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point systems are used to measure lobing, or triangular form error. Pistol-grip bore gages are used for fast, single-handed operation with good repeatability from one operator to another. Bore gages, regardless of type, can be used in some special applications, such as measuring threads, spline pitch diameters, and deep bores. The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA. What’s in the Box? Starrett dial indicator Body Actuating rod Two adjusting wrenches 0.217 to 0.281” probe, 1-1/2” maximum bore depth 0.279 to 0.344” probe, 1-1/2” maximum bore depth 0.342 to 0.405” probe, 1-1/2” maximum bore depth 0.403 to 0.469” probe, 1-3/4” maximum bore depth 0.467 to 0.532” probe, 1-3/4” maximum bore depth 0.530 to 0.594” probe, 1-3/4” maximum bore depth Protective case
