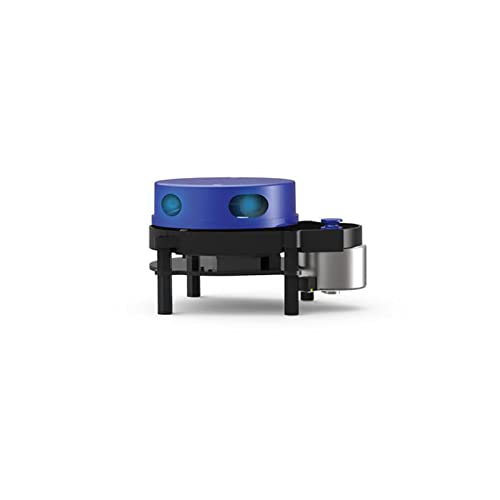

EAI YDLIDAR X4 360 Degree 2D LIDAR Lidar Range 10M Finder Sensor Module with UART Communication Interface
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
EAI YDLIDAR X4 360 Degree 2D LIDAR Lidar Range 10M Features
-
[High Accurracy] Scan Frequency 6-12Hz,Range Frequency：5000Hz,Range Distance：0.12-10m based on the Based on reflectivity of objects
-
[360-degree two-dimensional rangefinder] The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging
-
[Safety Standard] X4 is compliant with FDA Class 1 lidar safety standard, which is safe to human eyes, thus guarantees the safety of children or pets
-
[Widly Application] Robot navigation and obstacle avoidance, Robot ROS teaching and research , Regional security, Environmental scanning and 3D reconstruction Commercial robot /Robot vacuum cleaner
-
[Wiki] You can find more docs by click"WayPonDEV" and ask a question
About EAI YDLIDAR X4 360 Degree 2D LIDAR Lidar Range 10M
-Overview- To evaluate and develop the YDLIDAR under Windows, you need to install the serial port driver of the USB adapter board. Note: The drive current of the USB interface of some development platforms or PCs is weak, and the Lidar needs to access the +5V auxiliary power supply, otherwise it will work abnormally. -Performance characteristics- Application field: Indoor Light source: Infrared (785nm) angle:360° Accuracy: Full range＜2% Noise:＜35db Range finder frequency:5000 times/S Scanning frequency:7Hz(Adjustable) Angular resolution:0.63° Measuring distance:0.12m - 10m Lidar grade:class 1 Interface UART:LVTTL Level standard Support scan frequency adjustable:yes Support low power:yesMechanical / electronic parameters Electrical connection: 8 pin PH2.5 Connector working voltage:5V500MA Power waste:1.5W (Start peak2.5W) Shell color:black and blue weight:193g size:102mm*66mm*52mm -Environmental parameters- Working environment temperature:0~40° Storage temperature range:0~70 Development support Linux drive:yes drive:yes -Package Content- 1x YDLIDAR X4 1x USB Micro Cable 1x USB Adapter board 1x PH2.0-8P Pin Cable -Techical Support- Tech-Team: [email protected] Skype: monica_9122 Product Customization: [email protected]
