Hantek 300MHz Oscilloscope Probe, Passive Probe High Impedance Probes for Oscilloscopes with 1 Mohm BNC Input, HT300B

Pay with

Hantek 300MHz Oscilloscope Probe, Passive Probe Features

• The 300MHz HT300B are high impedance probes with switchable attenuation ratio (1:1 and 10:1).

• This oscilloscope probes are compatible with hantek digital storage oscilloscopes or similar oscilloscopes with 1 M ohm BNC input.

• These passive probes have been designed and calibrated for use with instruments having an input impedance of 1M Ω paralleled by 20pF. However, these may be recalibrated for use with instruments having an input capacitance of 15 to 40pF.

• NOTE: The BNC connector of these probes has a pin hole without a pin. This is as per the design and does not indicate any damage or fault in the probe.

About Hantek 300MHz Oscilloscope Probe, Passive Probe

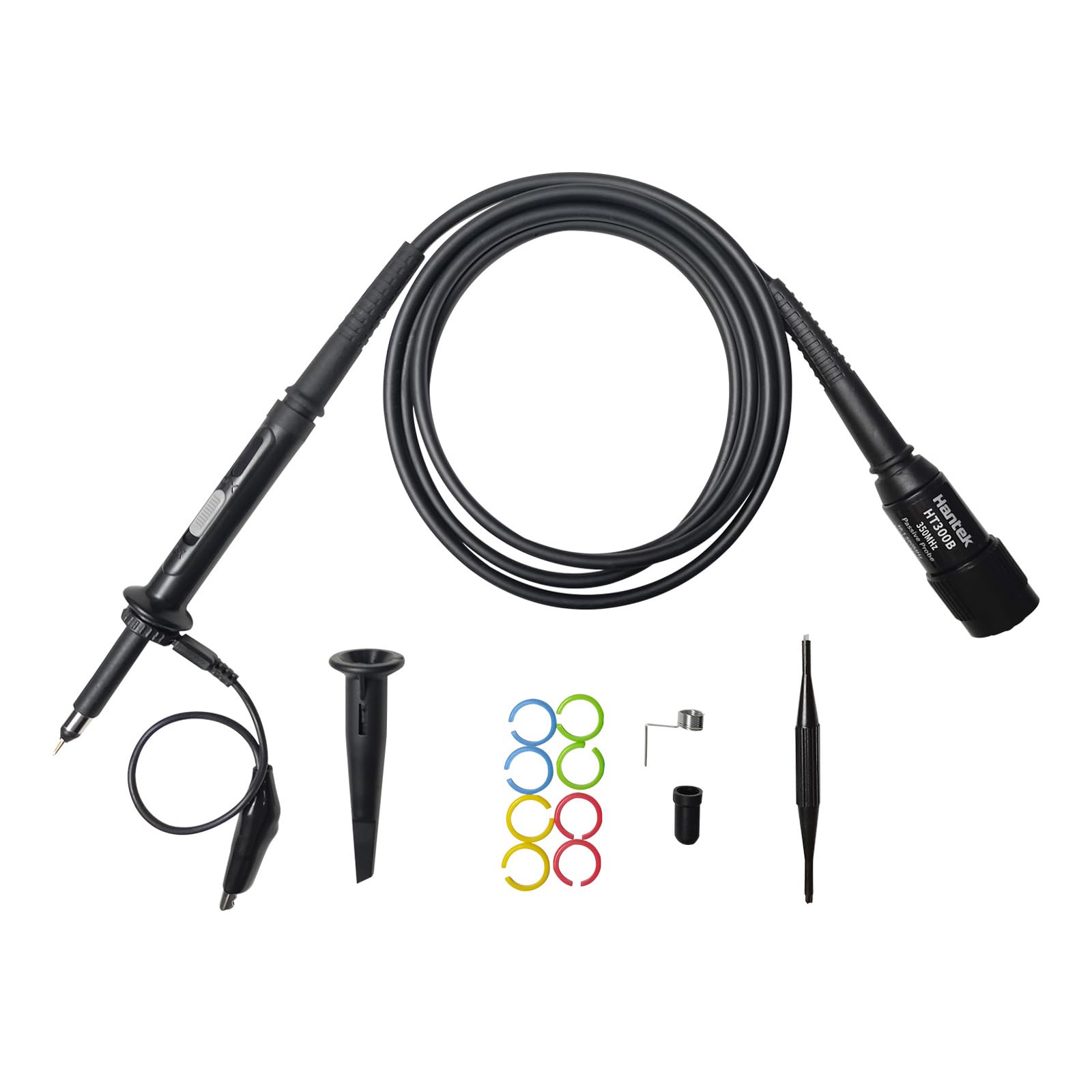

Electrical Characteristics : Motel: HT300B Attenuation Ratio: 1:1 / 10:1 Input Capacitance: 1:1 - 100pf; 10:1 - 15pf Compensation range(when terminated into 1 Mohm): 15pf - 40pf Input Resistance: 1:1 - 1MΩ, 10:1 - 10MΩ Maximum Input Voltage: 1:1 - 150V rms CAT II; 10:1 - 300V rms CAT II Bandwidth: 1:1 - 6 MHz; 10:1 - 350 MHz Probe Body: 95mm Cable Length: 1200mm Weight: 55g Temperature: -10 °C to +55 °C (Operating); -40 °C to +70 °C (Non-operating) Altitude: 3000 m (9,842 ft) (Operating); 12200 m (40,026 ft) (Non-operating) Humidity: 5% to 95% RH up to 30 °C (Operating); 5% to 65% RH above 30 °C up to 55 °C Probe and its Supplied Accessories: Passive probe × 1 Ground Spring × 1 Ground Lead × 1 Adjustment Tool × 1 Hook Tip × 1 Protective Cap × 1 Channel Identification rings: each color with two rings
