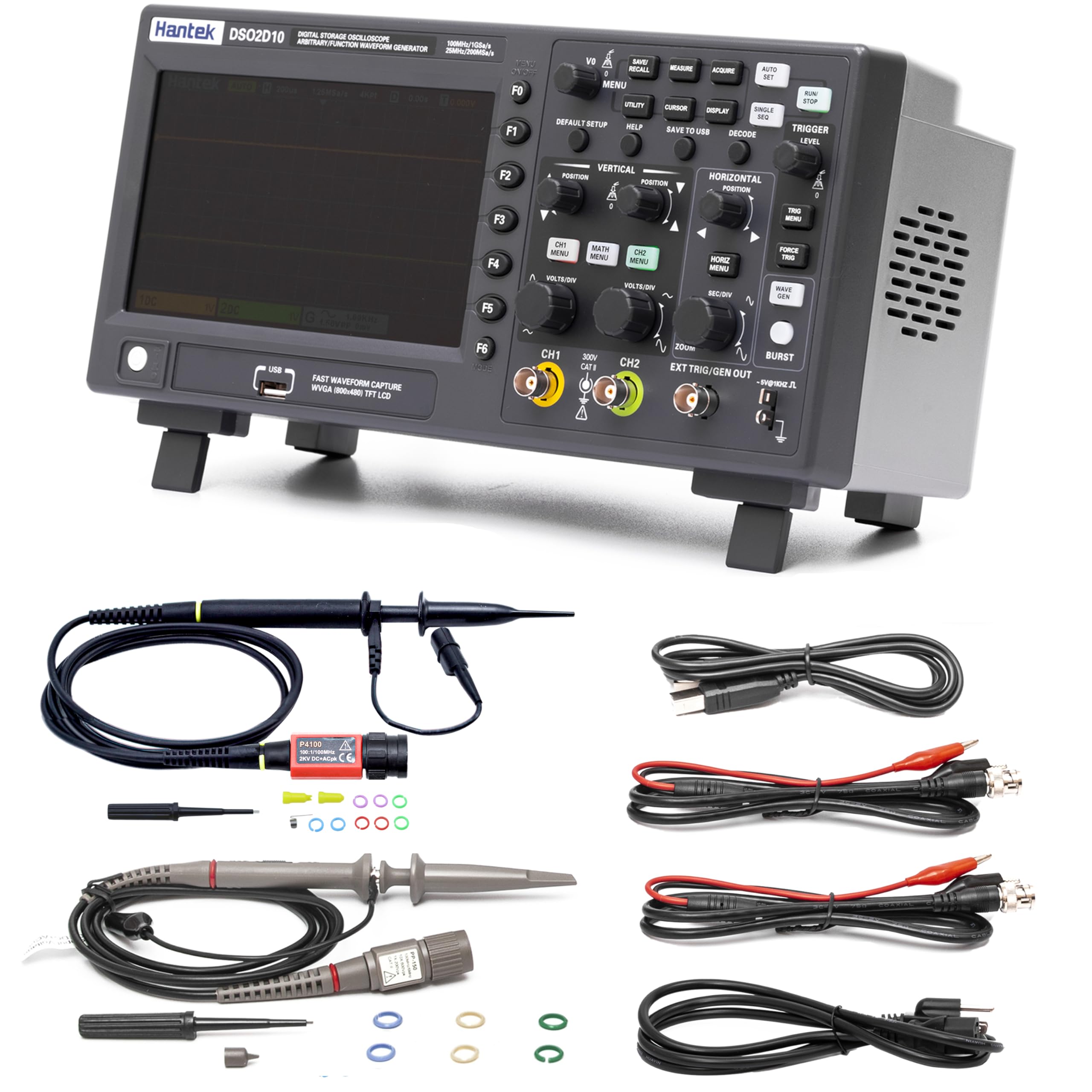

Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Features
-
Parameter: 2+1 channels which are respectively controlled by independent knobs; Bandwidth: 100 MHz; Sampling Rate: 1 GSa/s; Memory Depth: 8M; Vertical Range: 2mV/div～10V/div；Vertical resolution：8bit;Waveform Generator Bandwidth: 25MHz
-
Function: Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC; BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
-
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator; 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. 2 sets of digital voltmeters; Support threshold testing, free measurements within the screen
-
Arbitrary waveform generator: 1CH; Sample rate: 200MSa/s; Vertical resolution: 12 bits; Maximum frequency: 25MHz; Standard waveforms: sine, square, ramp, Exp, noise,DC
-
Desktop digital oscilloscope with waveform generator is simple and easy to use for home users, electronics enthusiasts, amateur DIY enthusiasts users to diagnose and repair home appliances, automobiles, stereos, the measurement accuracy is high enough; can be applied to laboratories, schools, circuit repair, light bulb testing, mechanical testing, mobile phone computer repair and other scenarios
About Hantek DSO2D10 Digital Storage Oscilloscope 100MHz
1) 2 channels which are respectively controlled by independent knobs 2) 100 MHZ analog channel bandwidth 3) Sampling rate up to 1 GSa/s 4) 8M memory depth 5) Vertical range 2mV/div ~ 10V/div 6) Built-in 1 CH 25MHz waveform generator 7) Vertical resolution: 8bit 8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC 9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN 10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator 12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. 13) 2 sets of digital voltmeters 14) Support threshold testing, free measurements within the screen 15) Abundant SCPI remote command control 16) USB Host/Device.
