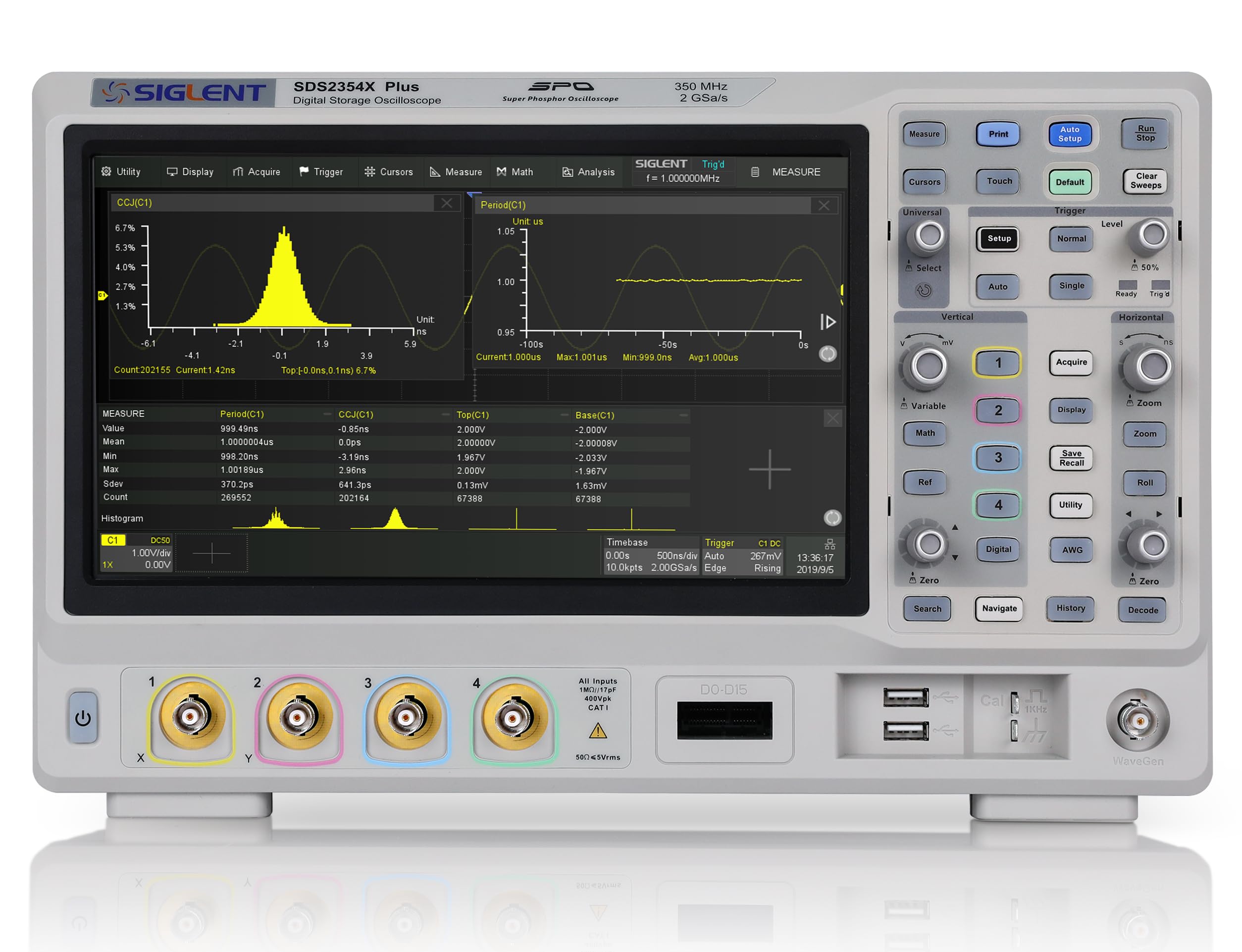

SIGLENT SDS2204X Plus 4 Channel Digital Super Phosphor Oscilloscope 200 MHz 2 GSa/s 200 Mpts 10.1"
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
SIGLENT SDS2204X Plus 4 Channel Digital Super Features
-
New generation of SPO (Super Phosphor Oscilloscope) technology
-
Supports 256-level intensity grading and color temperature display modes
-
Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, and Video (HDTV supported)
-
Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional), and Counter
-
Serial bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S protocols
About SIGLENT SDS2204X Plus 4 Channel Digital Super
SIGLENT SDS2204X Plus is a 4-channel Super Phosphor Oscilloscope with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB, and a 10.1" display. The device employs SIGLENT's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s, a 256-level intensity grading display function plus a color temperature display mode. It also employs a digital trigger system with high sensitivity and low jitter. Technical Specifications Bandwidth: 200 MHz Analog channels: 4 + EXT Sample rate: 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode) Memory depth: 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode) Waveform capture rate: 120 000 wfm/s (normal mode), 500 000 wfm/s (sequence mode) Trigger type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial Vertical Resolution: 8 bit, 10-bit mode (with typical 100 MHz bandwidth) Serial triggering and decoding: standard: I2C, SPI, UART, CAN, LIN; optional: CAN FD, FlexRay, I2C, MIL-STD-1553B Math: 2 traces; 2 Mpts FFT, +, -, ×, ÷, d/dt, ∫dt, √, average, ERES, and formula editor Interfaces: USB 2.0 Host × 2, USB 2.0 Device, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL) Display: 10.1" TFT-LCD with capacitive touch screen 1024 × 600 Dimensions: 352 × 224 × 111 mm Weight: net weight: 3.9 kg; gross weight: 5.4 kg Package Contents Digital Oscilloscope SIGLENT SDS2204X Plus — 1 pc. USB Cable — 1 pc. Passive Probe — 4 pcs. Power Cord — 1 pc. User Manual — 1 pc. Package content and appearance may differ from those presented on the website. Please ask the sales specialist before purchase.
