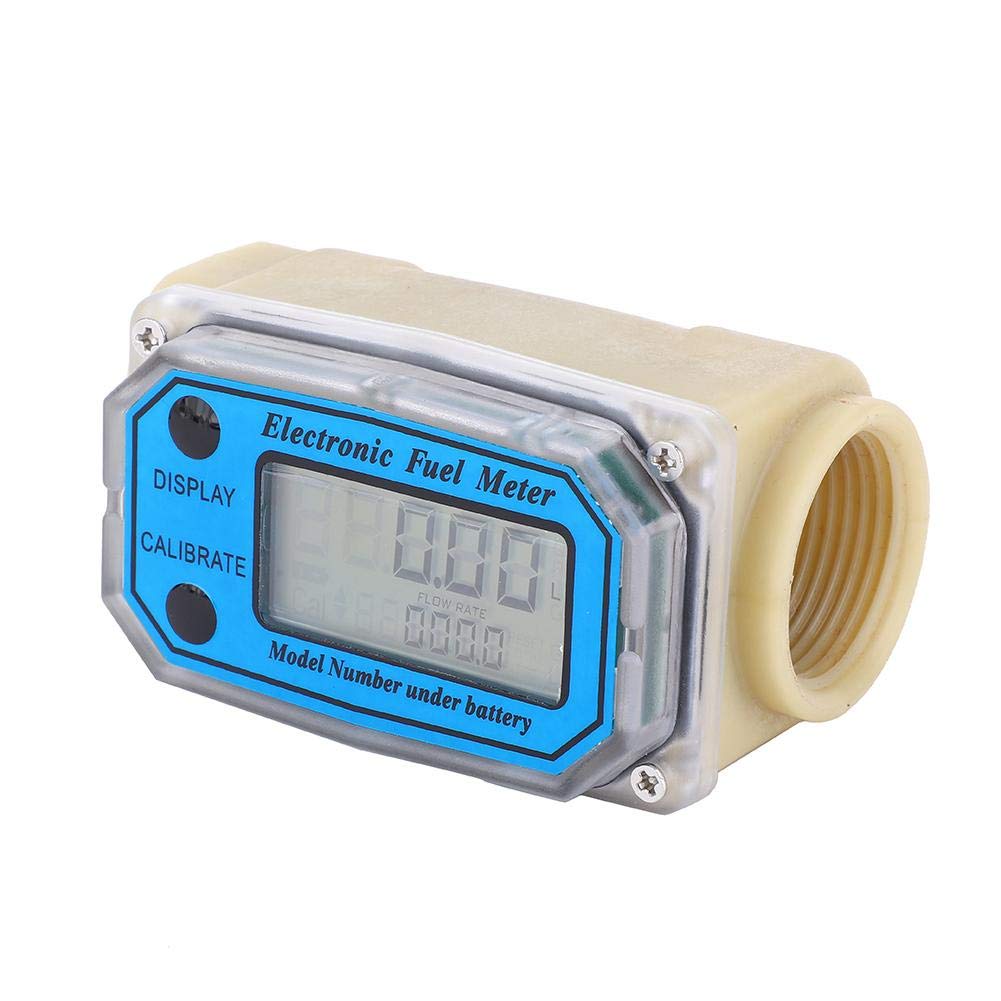

LLW-25PP Meter Inline Digital Display Turbine Meters Blue Plastic Chemical Liquid Mete with 1 Inch Internal Thread for Chemicals Water Fuel Transfer
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
LLW-25PP Meter Inline Digital Display Turbine Features
-
【Modular Design】The liquid meter control panel adopts a modular design making it suitable for output modules, sensors and remote transmitters
-
【High Precision Measurement】The meter with digital display can read clearly and intuitively, with high reliability and measurement accuracy of ±1%
-
【Lightweight And Compact Size】The lightweight meter is easy to carry, compact and easy to install,Weight approx: 270g / 9.5oz
-
【Applications】Our meter can be widely used in petroleum, chemical, pharmaceutical, transportation, food to be industrial and commercial like measure diesel, , kerosene, gasoline, etc
-
【High-definition Displays】LCD display makes the reading more clear, and can display both cumulative and instantaneous readings
About LLW-25PP Meter Inline Digital Display Turbine
Features: Modular design makes it suitable for use with output modules, sensors and remote transmitters. Light weight, compact structure, easy to install. Intuitive clear reading, high reliability, measuring accuracy is ±1%. High-definition displays show both instantaneous and cumulative flow. Can be widely used to measure diesel, urea, kerosene, gasoline, etc. Specification: Thread size: 1inch NPT female Material: Plastic Color: Blue Repetition: ±0.5% Measure accuracy: ±1% Maximum working pressure: 20BAR Flow range: 15-120L / Min Single count: 0.00-9999.9 Total cumulative count: 0-99999 Error coefficient: 0.1000-9.9999 Unit: L / GAL / PTS / QTS Working temperature: -10°C ~ +60°C(14°F~140°F) Operating voltage: 2.3-3.3V Application: Diesel, urea, kerosene, gasoline Battery type: 2 x AAA LRO3 batteries Weight: 270g / 9.5oz (approx.) Package list: 1 * Turbine Flow meter Malfunction and solution: The flow meter is not accurate.1. The method of field calibration is not correct. Calibrate again.2. The flow rate on the meter is below the lowest. Increase the flow rate.3. The flow meter is blocked by the dry liquid.Take out the impeller and clean it carefully and make sure the impeller turns freely.4. The impeller is wrapped by the sealing material. Remove the meter and make sure the impeller turns freely.5. Too close to the impeller. Install properly.6. Too close to the motor or electronic noise environment Install properly. The reading numbers faded or blanked out.1.Battery is exhausted or not connectedCheck the batteries or even replace them. Press the button of DISPLAY, the meter starts.
