Ultrasonic Flow Meter Tuf-2000b Tm-1 & Ts-2, Liquid Flowmeter Dn20-700mm Sensor Ip67 for Water, sea Water, Sewage, Oil, Alcohol, etc.
Share Tweet
Ultrasonic Flow Meter Tuf-2000b Tm-1 & Ts-2, Liquid Features
-

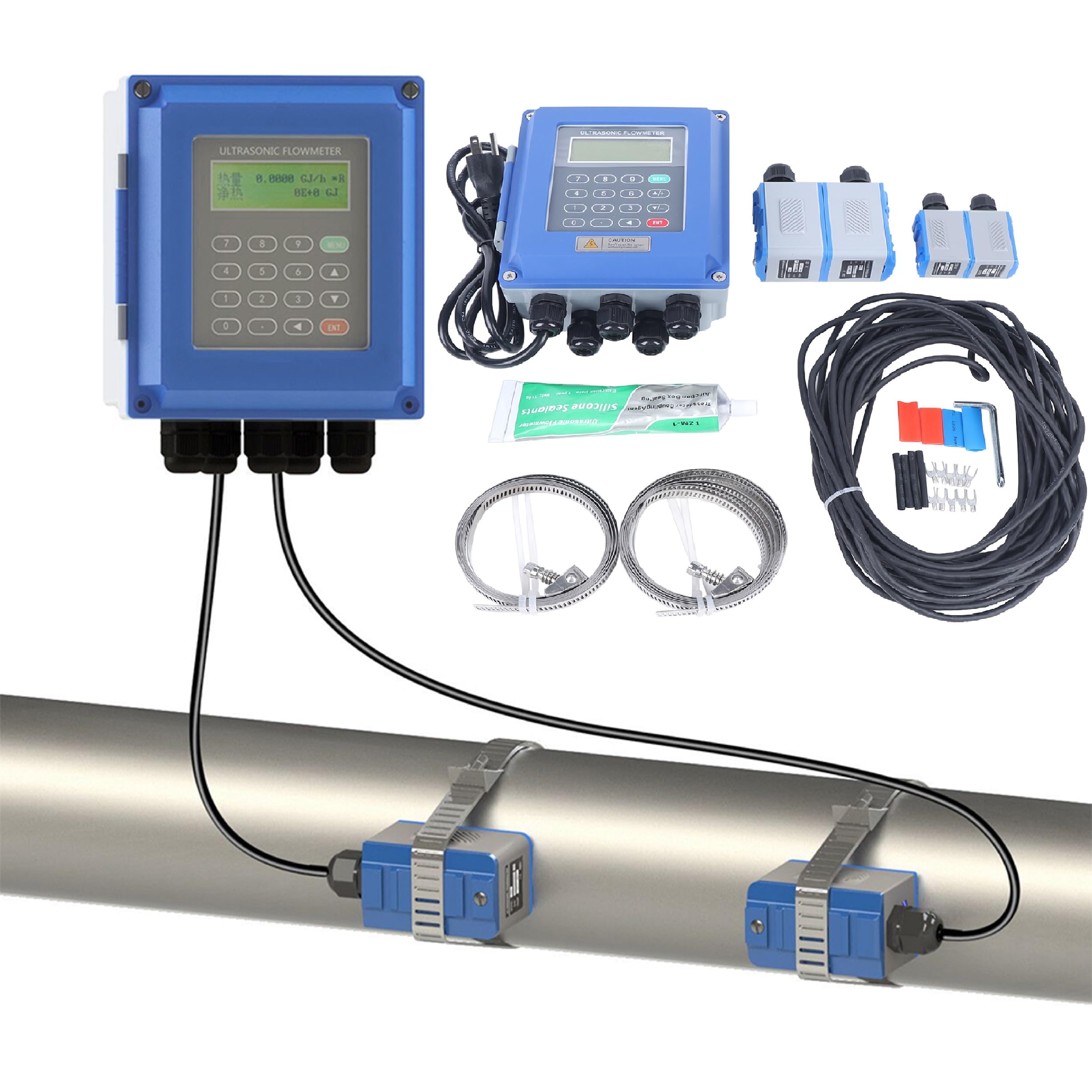

★PACKAGE INCLUDING★ 1x Tuf-2000B Host, 2x Steel Belts, 1x TS-2 Ultrasonic Transducers(20-100mm), 1x TM-1 Ultrasonic Transducers(50-700mm), 1x 10 Meters Flow Signal Cable, 1 Set Of Connection Terminal And Screwdriver, 1x Silicone Sealants, 1x User Manual.
-
★SIGNAL OUTPUT★ 1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay Output.
-
★SIGNAL INPUT★ 3 Way 4-20ma Input, Achieve To Heat.
-
★TYPE OF LIQUID★ Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc.
-
★PIPE MATERIAL★ Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed.
About Ultrasonic Flow Meter Tuf-2000b Tm-1 & Ts-2, Liquid
Basic Parameters: Main Unit Protection Level: IP67 Transducer Protection Level: Ip68 Main Unit Working Environment: -20~60℃ Transducer Working Environment: -30~90℃ Humidity: ≤85%Rh Accuracy: ≤1% Velocity Range: 0~±10m/s, Bi-Directional Measurement Suitable Pipe Diameter: TS-2 Ultrasonic Transducers:20-100mm TM-1 Ultrasonic Transducers:50-700mm Temperature: -30~90℃ Type Of Liquid: Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc. Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed. Signal Output: 1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay Output Signal Input: 3 Way 4-20ma Input, Achieve To Heat Measurement By Connecting Pt100 Platinum Resistor. Interface: Rs485, Support Modbus Data Storage: SD Card Regularly Store The Pre-Set Results(Without SG Card ) Power Supply: DC8~36V Or AC85~264V Multiple Installation Methods: Installation Methods: Wall Mounting And Two Ways Of Din-Rail Mounting Host Size: 15.6x15x9.4cm/6.14x5.9x3.7inch Weight: About 2kg Standard Packing: 1x Tuf-2000B Host 2x Steel Belts 1x TS-2 Ultrasonic Transducers(20-100mm) 1x TM-1 Ultrasonic Transducers(50-700mm) 1x 10 Meters Flow Signal Cable 1 Set Of Connection Terminal And Screwdriver 1x Silicone Sealants 1x User Manual
