Analog Discovery Systems Kit: USB Oscilloscope Features

• Two-channel USB digital oscilloscope, spectrum analyzer, and network analyzer (±25V, differential, 14-bit, 100MS/s, 30MHz+ bandwidth)

• Two-channel arbitrary function generator (±5V, 14-bit, 100MS/s, 12MHz+ bandwidth)

• 16-channel digital logic analyzer, pattern generator, and protocol analyzer (3.3V CMOS and 1.8V or 5V tolerant, 100MS/s)

• Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)

• Additional instruments including a data logger, impedance analyzer, and power supplies

About Analog Discovery Systems Kit: USB Oscilloscope

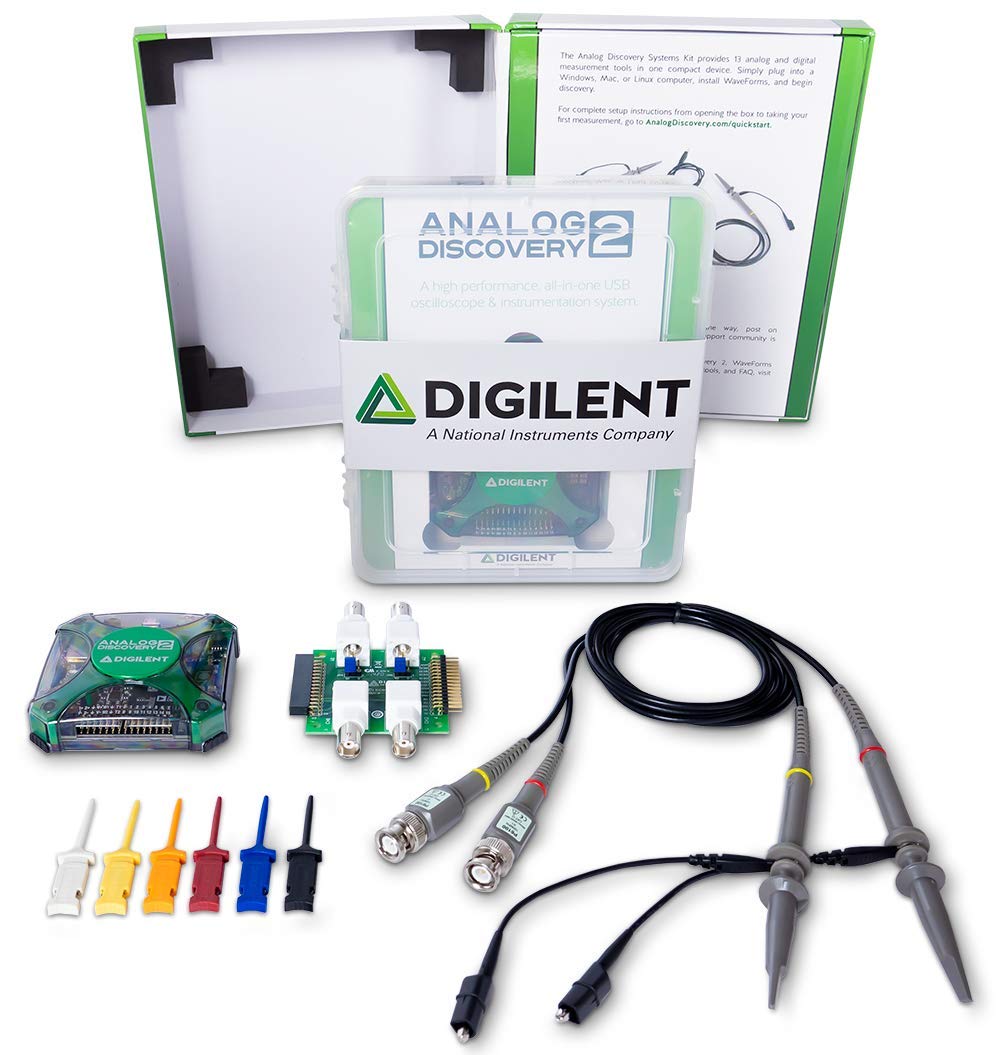

The Analog Discovery Systems Kit includes everything you'll need to verify and test a wide range of projects! Digilent's Analog Discovery 2 is a USB oscilloscope and multi-function instrument that allows users to measure, visualize, generate, record, and control mixed-signal circuits of all kinds. Analog Discovery 2 is small enough to fit in a briefcase, but powerful enough to replace a stack of lab equipment, providing engineering professionals and electronics enthusiasts the freedom to work with analog and digital circuits in virtually any environment, in or out of the lab. Analog Discovery 2 comes with the free software, WaveForms. WaveForms is Mac, Windows, and Linux compatible and comes with an optional Software Development kit for creating custom applications in C++ and Python. Kit includes: Analog Discovery 2 and the following: One regular sized project box One USB A to micro B programming cable One 2x15 flywire signal cable assembly One 5-pack of 6-pin male headers One ferrite cable snap-on BNC Adapter Board for the Analog Discovery BNC Oscilloscope x1/x10 Probes (pair) Mini Grabber Test Clips (6-pack)
