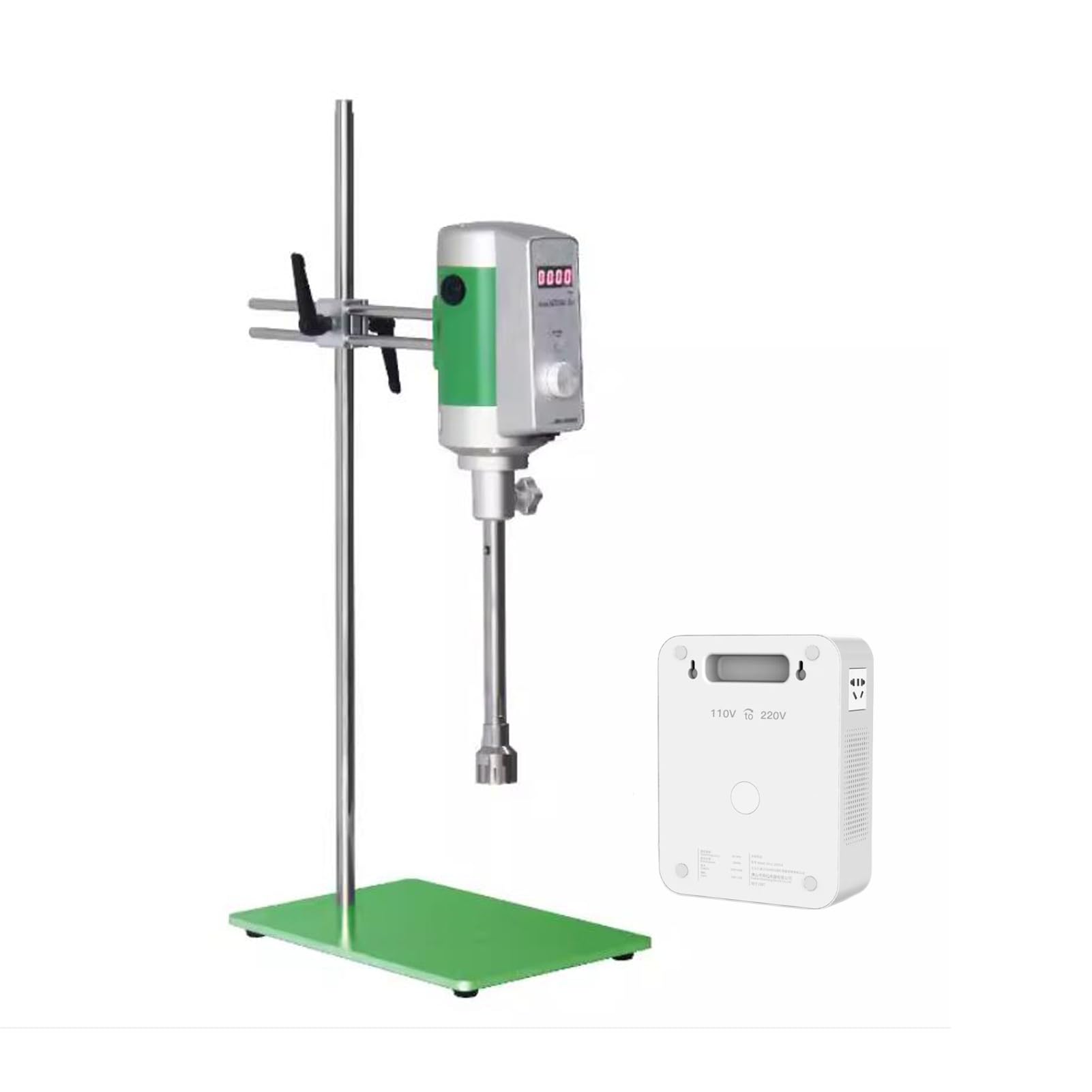

Lab High Speed Homogenizer, SHengwin 2000-24000rpm High Shear Mixer Emulsifying Machine Laboratory Disperser Emulsifier with 10G and 25G Working Heads
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Lab High Speed Homogenizer, SHengwin 2000-24000rpm Features
-
The 220V high speed homogenizer is equipped with two stainless steel working heads(10G and 25G), and a 110V to 220V Step Up Transformer allowing the homogenizer to be used in 110V.
-
Our emulsifying machine has the overload protection function, easy to operate, its maximum speed can reach 24000rpm.
-
Digital display makes running speed on screen intuitive, which can be set arbitrarily as required by the experiment; timing control function ensures that the time of the experiment is effectively controllable.
-
The high shear disperser emulsifier has stable running state, wide experimental application area, microprocessor controls the running speed ensuring reliable constant speed.
-
This homogeneous dispersing machine is widely applied in teaching, research and production in fields such as laboratory, biology, physics, new materials, new energy, cosmetics and food industry, etc.
About Lab High Speed Homogenizer, SHengwin 2000-24000rpm
Note: Please kindly know that the high speed homogenizer is 220V, but there is a 110V to 220V Step-up Transformer in the package. Specifications: Model: AD300L-SH Rated Voltage: AC 220V Rated Frequency: 50/60Hz Input Power: 680W Output Power: 400W Rated Torque: 15.9 N.cm Working Mode: S1 (continuous) Speed Range: 2000-24000rpm Speed Control: stepless Timing Control Range 1-999min Speed Dynamic Detection Function: yes Speed Memory Function: yes Overload Protection Function: yes Speed Display: LED digital display Working Head Material: SS 304 stainless steel Standard Configuration Working Heads: 10G/25G 10G Working Head Length: 182mm Mixing Capacity(H2O): 25-100ml Stator Diameter: 10mm Rotor Diameter: 7.2mm Maximum Speed Range: 24000rpm Maximum Circumferential Speed: 9m/s Depth of immersion in a liquid: 25-120mm Maximum operating temperature: 120℃ Permitted Environmental Temperature: 5-40℃ 25G Working Head Length: 225mm Mixing Capacity(H2O): 80-5000ml Stator Diameter: 25mm Rotor Diameter: 19mm Maximum Speed Range: 18000rpm Maximum Circumferential Speed: 17.9m/s Depth of immersion in a liquid: 50-165mm Maximum operating temperature: 120℃ Permitted Environmental Temperature: 5-40℃ Package Included: 1 * 220V High Speed Homogenizer 1 * 110V to 220V Step Up Transformer 1 * 10G Working Head 1 * 25G Working Head 1 * English Manual
