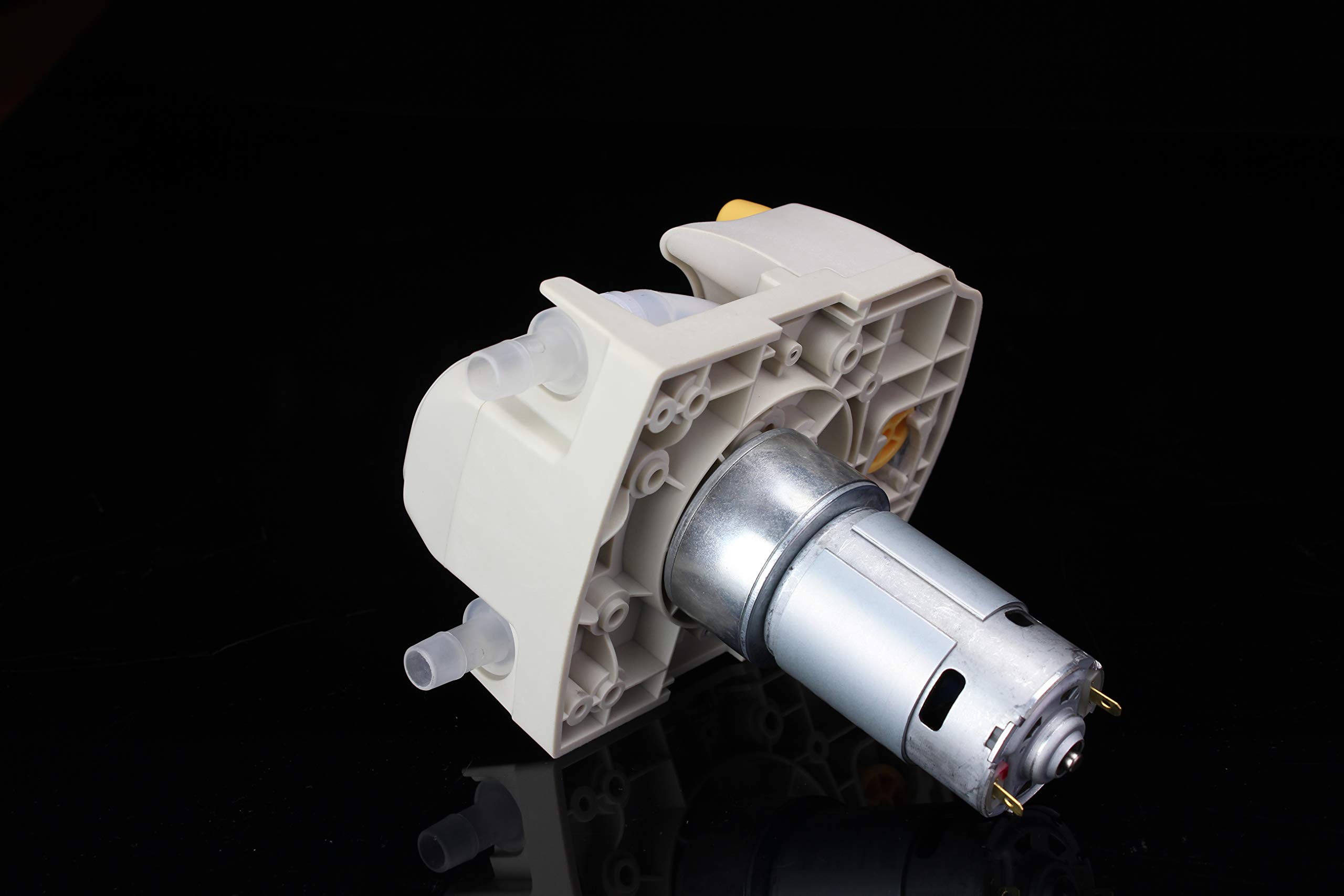

Easy Installation 12v /24v DC High Flow Peristaltic Dosing Pump Low Cost for Syrup Juice Beverage Vending Machine (12v, 166rpm)

Pay with

Easy Installation 12v /24v DC High Flow Peristaltic Features

• High Flow rate: 1260~4000ml/min. Accept tube WT3.3mm, 73#、82#

• Motor :12v/24v DC options brushed motor

• Speed: Fixed 166r and 326rpm for options

• 3 rollers , U shape or L shape in the main ficture

• Application: Food equipment: coffee machine, beverage machine, juice machine, syrup machine etc

About Easy Installation 12v /24v DC High Flow Peristaltic

Feature: ■ Tubing to be mounted reliably and disassembled easily. ■ A new type of sliding compression structure, to exchange tubing more conveniently. ■ A variety of tubing lines: straight line, U shape or L shape. ■ 3 roller structure, CNC finishing technology, high accuracy, more stable. Flow Rate(ml/min, medium:water, “U” shape tubing inside pump head, suction height 0.3m) Tube 166rpm 326rpm 73#(ID9.6WT3.3mm) 1260 2570 82# (ID12.7WT3.3mm) 2110 4000 Remark: 1.Above date is measured in JIHPUMP laboratory at room temperature , for reference only; 2.Tubing material, size, Viscosity, suction and lifting length will have some impact on flow rate. Specifications: Speed: Fixed 166r and 326rpm for options Flow rate: 1260~4000ml/min Power: ≤48W Motor :12v/24v DC optionale gear motor Installation: Self-mounting holes on the front and back of the pump body Net weight: 920g Dimension: see in the main pictures Application Food equipment: coffee machine, beverage machine, juice machine, syrup machine Instrument and equipment: filling machine, environmental instrument, chemical equipment, medical apparatus
