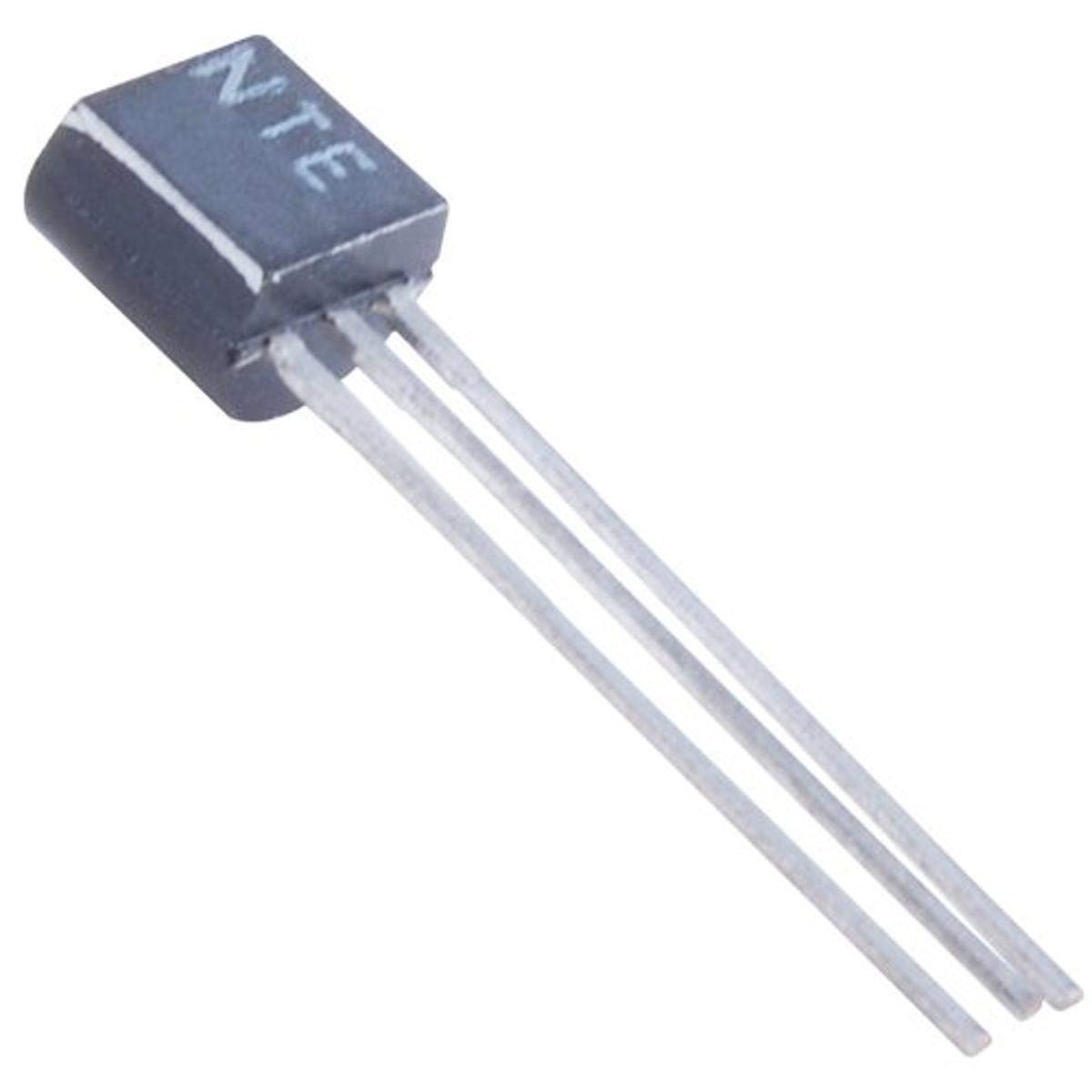

NTE Electronics NTE977 Integrated Circuit Positive
NTE Electronics NTE977 Integrated Circuit Positive

NTE Electronics NTE977 Integrated Circuit Positive 3-Terminal Voltage Regulator, TO-92 Package, 100mA Output Current, 5V Output Voltage

Product ID : 44075582


Galleon Product ID 44075582
UPC / ISBN 768249374312
Shipping Weight 0.02 lbs
I think this is wrong?
Model NTE977
Manufacturer NTE Electronics
Shipping Dimension 6.42 x 3.5 x 0.39 inches
I think this is wrong?
-
543

*Price and Stocks may change without prior notice
  • 3 Day Return Policy
  • All products are genuine and original
  • Cash On Delivery/Cash Upon Pickup Available

Pay with

NTE Electronics NTE977 Integrated Circuit Positive Features

  • Output voltage tolerances of ±5% over the temperature range

  • Output current of 100mA

  • Internal thermal overload protection

  • Output transistor safe area protection

  • Internal short circuit current limit


About NTE Electronics NTE977 Integrated Circuit Positive

These are positive 3–terminal voltage regulators in available in a TO92 type package. With adequate heat sinking these regulators can deliver 100mA output current. Current limiting is included to limit peak output current to safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. If internal power dissipation becomes too high for the heat sinking provided, the thermal shutdown circuit takes over preventing the IC from overheating. When used as a Zener diode/resistor combination replacement, these devices usually result in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. Typical applications include use in logic systems, instrumentation, HiFi, and other solid state electronic equipment. Although designed primarily as fixed voltage regulators these devices can be used with external components to obtain adjustment voltages and currents.
