NOYITO 1kg 5kg 10kg 20kg Load Cell and HX711 Combo Pack Kit - Load Cell Amplifier ADC Weight Sensor (20kg+HX711)

Product ID : 32146801

Product Rating

3.9 out of 5 stars

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 32146801

UPC / ISBN 667797748111

Shipping Weight 0.08 lbs
I think this is wrong?

Model NOLCHX711-20

Manufacturer NOYITO

Shipping Dimension 6.02 x 3.43 x 0.55 inches
I think this is wrong?

See more product information!

-

Before ₱ 893

₱ 850

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2024-05-14 to 2024-05-21. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

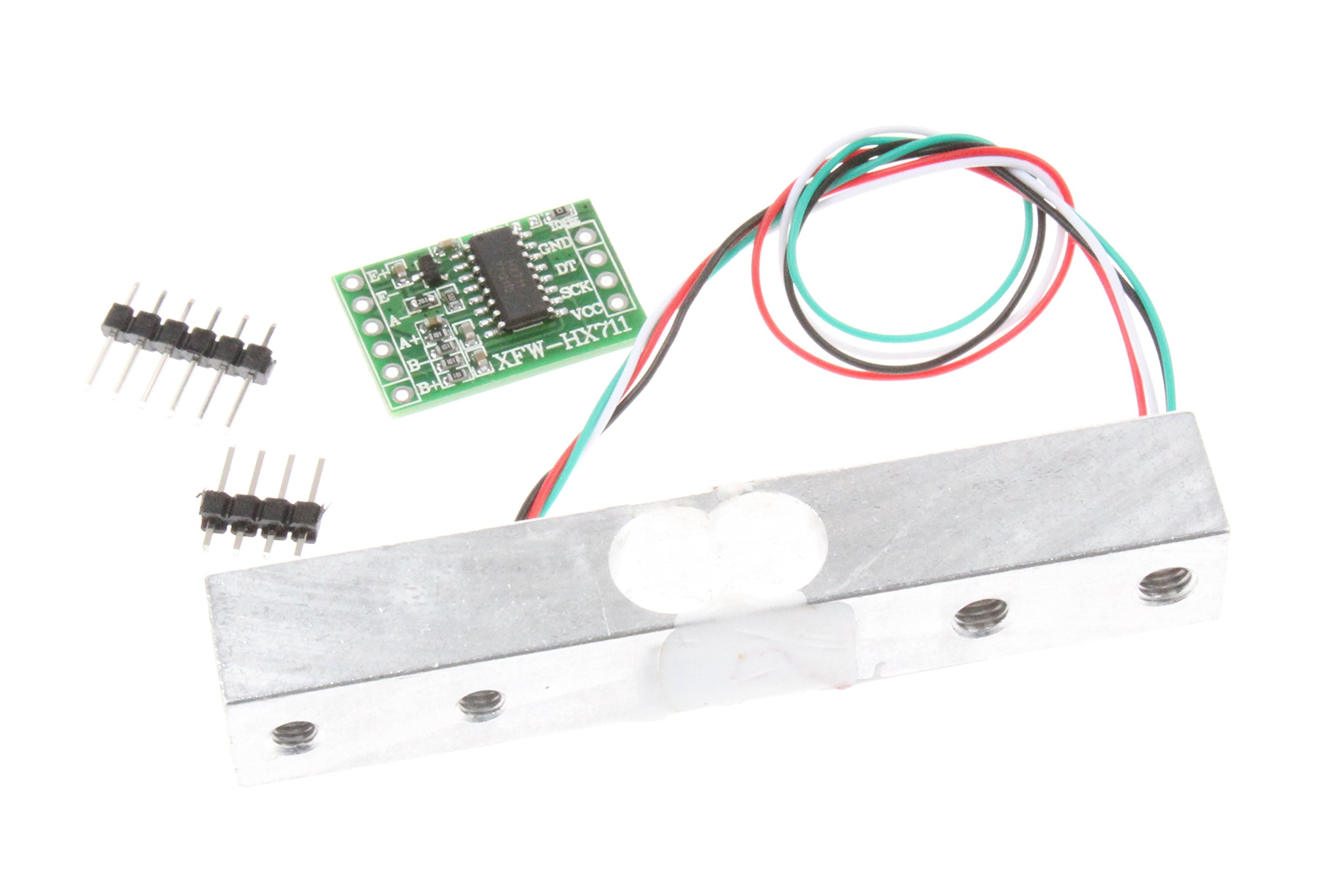

NOYITO 1kg 5kg 10kg 20kg Load Cell and HX711 Combo Features

• Load cell：Sturdy aluminum alloy construction with strain gauges pre-attached with strain relieved wires. Accurate measures forces from 0-5kg/ 5kg /10kg /20kg.

• HX711 :This top of the line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any micro controller (like an Arduino or Raspberry Pi).

• Load cell specs: 22 cm (8.5 in) wire leads pre-attached. Dimensions 12.7 mm high, 12.7 mm wide, 80 mm long (0.5 in x 0.5 in x 3.15 in). 4 mounting holes, 15 mm spacing on each side. One both holes tapped M4 thread, the other side both holes tapped M5 thread.

• HX711 specs: Operation Voltage: 2.7V-5V ; Operation Current: < 1.5mA ; Selectable 10SPS or 80SPS output data rate ; Includes breakaway headers for connection, soldering required.

• Please choose the correct specification before buying. (A total of four specifications).Please refer to the picture on the left of this page for the product wiring diagram.

About NOYITO 1kg 5kg 10kg 20kg Load Cell And HX711 Combo

Description Load cell - Sturdy aluminum alloy construction with strain gauges pre-attached with strain relieved wires. Accurately measures forces from 0-5kg/ 5kg /10kg /20kg. HX711 - This top of the line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any microcontroller (like an Arduino or Raspberry Pi). HX711 specs: Operation Voltage: 2.7V–5V Operation Current:
