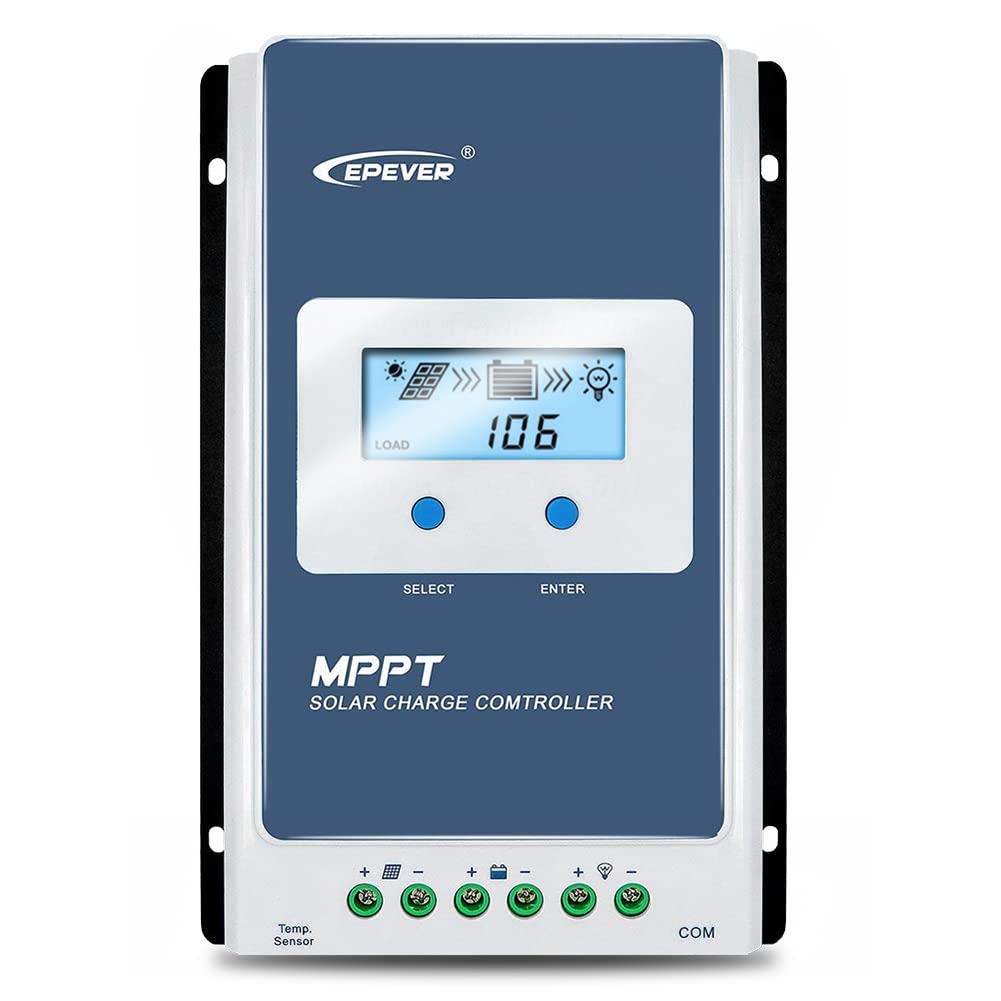

EPEVER 40A Solar Charge Controller MPPT Solar Panel Charge Controller 12V / 24V Auto Working Max PV 100V Solar Charge Battery Regulator with LCD Display for Gel Flooded Sealed Lithium Batteries
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
EPEVER 40A Solar Charge Controller MPPT Solar Panel Features
-
This controller uses the most advanced MPPT technology to ensure high efficiency (>98%) of your solar system. Significantly outperforms standard PWM controllers. Ultra-fast tracking speed and guaranteed tracking efficiency, advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time.
-
Built-in LCD screen displays key charging parameters. Multiple connectivity options for the controller (remote meter, mobile app, PC software etc) enable the user to personalise each charging stage, create a user-defined battery type with specific parameters and access exclusive settings.
-
Multiple protections eliminate safety hazards, low voltage input protection, over voltage input protection, over charge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.
-
With Modbus communication protocol interface, full-load operation without any drop in capacity within the range of working environment temperature, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.
-
Compatibility with multiple battery types for convenient use, support Sealed lead acid, gel, flooded, lithium and users. Suitable for solar panels up to 520W (12V battery or battery bank) or 1040W (24V system). Current limiting function (40A) allows possibility of adding more solar panels in the future.
About EPEVER 40A Solar Charge Controller MPPT Solar Panel
EPEVER 40A MPPT Solar Charger Controller Tracer 4210 AN Solar Charge with LCD Display ★ Multiple load control modes: manual control, lighting ON / OFF, light on + timer ★ Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency not less than 99.5% ★ Wide MPPT operating voltage range. ★ 12 / 24VDC automatically identify system voltage. ★ LCD display design, dynamic display of operating data of the operation and working condition. ★ Available for PC monitoring and external display realize real-time data verification and parameter setting. Product Specification Charge Rated Current:40A System Voltage: 12V/24V auto work MPPT Controller Max Input Power: 520W (12V battery system)/1040W(24V battery system) Voltage: 100V Consumption: ≤12mA Battery Voltage Range: 8V ~ 32V RS485 communication interface: 5VDC/100mA Grounding type: Negative ground Battery types: Gel battery, Sealed lead-acid battery, Flooded battery, lithium battery, User-defined. Load control mode:On, Off , PV voltage control, Dual-time control, PV + Time control. Communication:Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring. Protections:Input over / low voltage, output over / low voltage, reverse connection,over temperature, short circuit, battery shedding etc. What's in the box 1 x Tracer 4210 AN Solar Charge Controller 2 x User Guide
