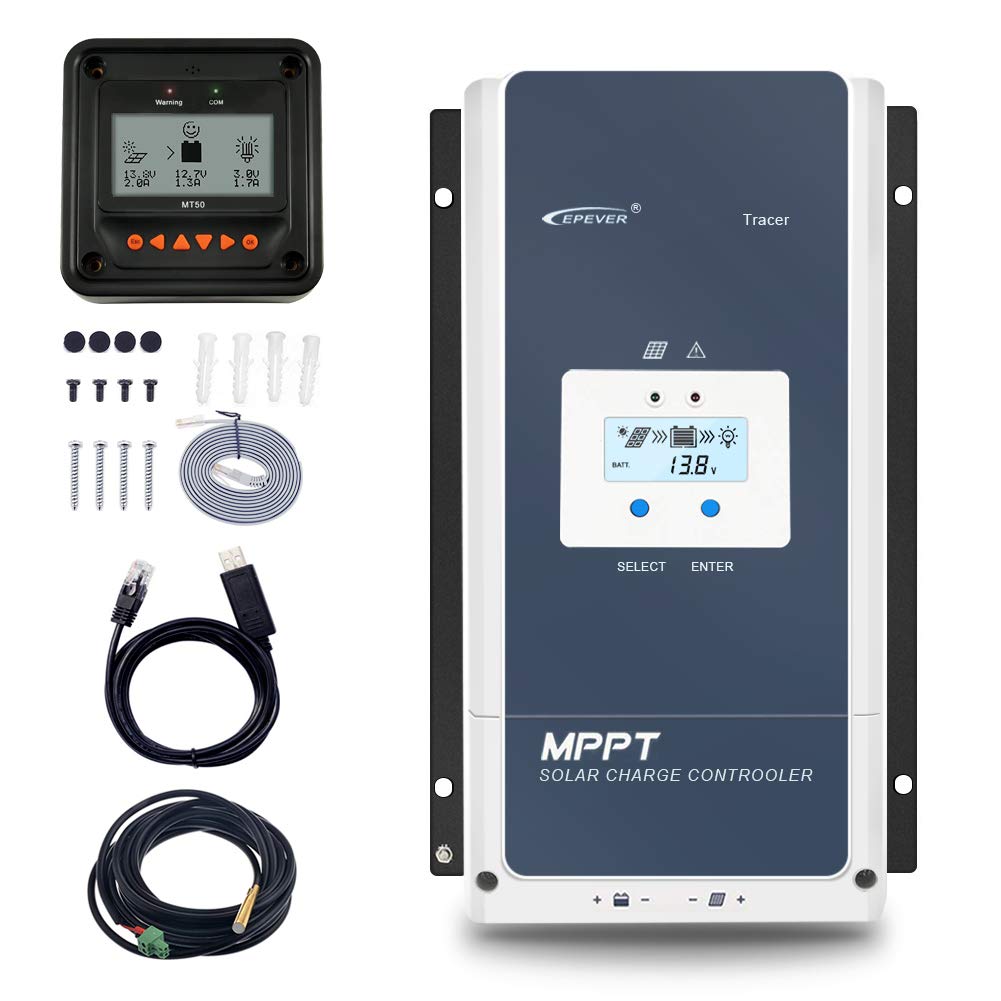

EPEVER 80A MPPT Solar Charge Controller 12V/24V/36V/48V Auto Max.PV 150V Input Negative Ground Solar Panel Charge Regulator with MT50 Remote Meter Temperature Sensor RTS & PC Communication Cable RS485
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
EPEVER 80A MPPT Solar Charge Controller Features
-
MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%. High quality & low failure rate components of ST and Infineon to ensure the product's life.
-
With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system.
-
48v/36v/24v/12v Auto identifying system voltage. Auto control system to limit the charging power & current go over the rated value. Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power & charging current double automatic limiting function. Support 4 charging options: Sealed, Gel, Flooded and User.
-
Standard Modbus communication protocol with RS485 interface, to monitor or set the parameters by using the phone Apps, MT50 Meter and PC software.
-
Dual RS485 Port (RJ45 Connector), it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.
About EPEVER 80A MPPT Solar Charge Controller
Features: ★High quality & low failure rate components of ST and Infineon to ensure the product's life ★ Auto control system to limit the charging power & current go over the rated value. ★ Battery temperature compensation function ★ Real-time energy recording and statistical function ★ Automatic over-temperature power reduction function ★ Hundred percent full load operation in working environment temperature range within charging & discharging ★ Support up to 8 units in parallel to expand system ★ Load relay control external load switch signal to realize diversified load work modes Specification: Rated charge current: 80A Nominal System Voltage: 12/24/36/48VDC or Auto Battery Input Voltage Range: 8V～68V Battery Type: Sealed(Default)/Gel/Flooded/User Rated charge Power: 1000W/12V, 2000W/24V, 3000W/36V, 4000W/48V Max. PV open circuit voltage: 150V(At minimum operating environment temperature) 138V(At 25℃ environment temperature) Temperature compensate coefficient: -3mV/℃/2V(Default) Grounding: Common negative grounding Accessories description 1. Remote Temperature Sensor (Model: RTS300R47K3.81A) Acquisition of battery temperature for undertaking temperature compensation of control parameters, the standard length of the cable is 3m. 2. Remote Meter (Model：MT50) Wide LED screen displays the real time operational data and the working status in digital, graphic and textual forms. It automatically identifies the type, model and relevant parameter data of solar controllers. 3. USB To RS-485 converter (Model: CC-USB-RS485-150U) USB To RS-485 converter is used to monitor each controller on the network using Solar Station PC software and update the firmware. The length of cable is 1.5m. Package List: 1 x TracerAN Solar Charge Controller 1 x MT-50 Remote Meter 1 x RTS 1 x RS485 1 x User Manual
