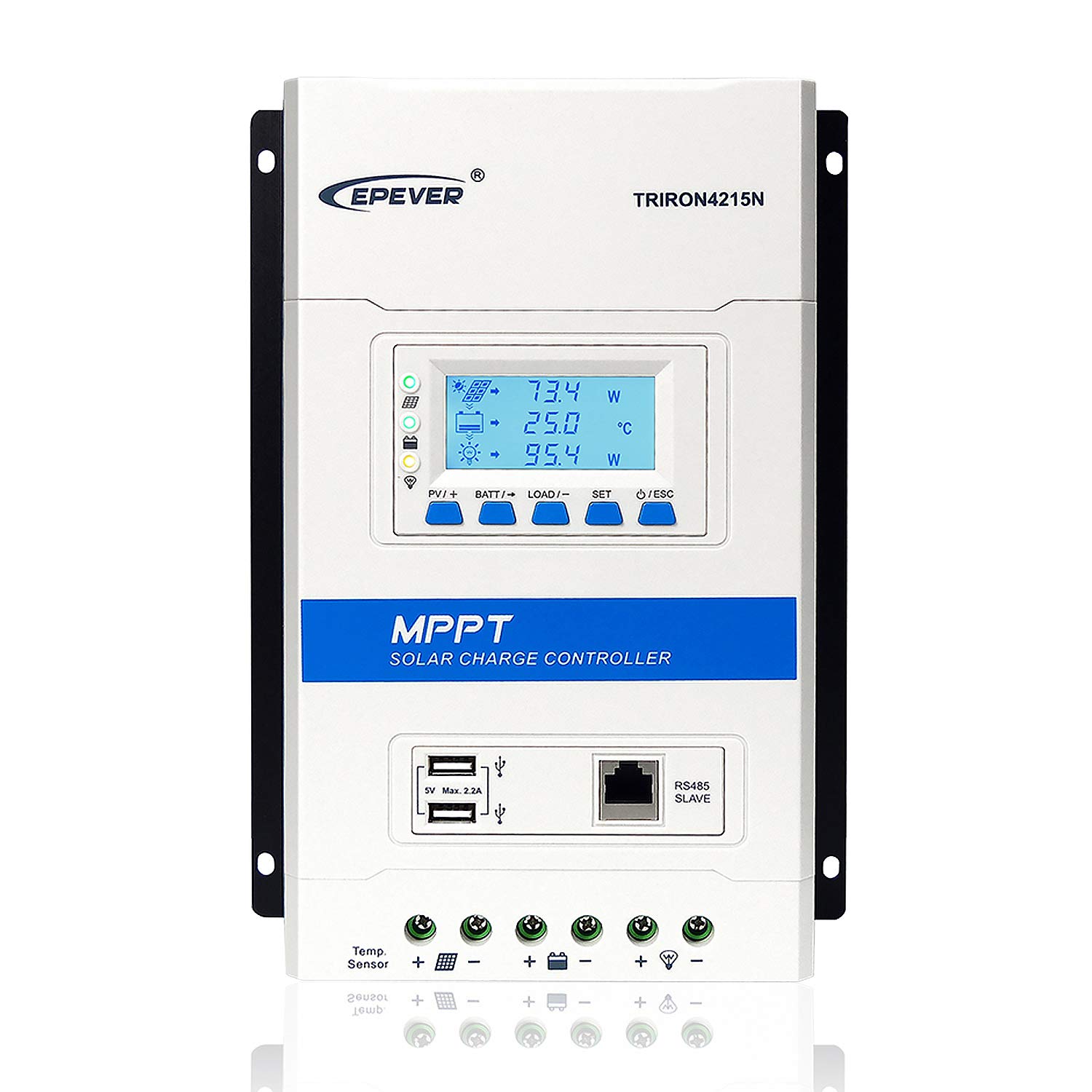

EPEVER MPPT Solar Charge Controller 40A 12V 24V Auto DS2+UCS Module Max PV 150V Solar Panel Regulator Charger Triron4215N for Sealed AGM Gel Flooded LiFePO4
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
EPEVER MPPT Solar Charge Controller 40A 12V 24V Features
-
EPEVER MPPT solar charge controller 40A 12V/24V auto, Max PV 150V solar panels Max input 520W charge for 12V battery or 1040W charge for 24V battery system, Common negative grouding. Upgraded version add Lithium battery types, can be integrated with different display and interface modules to meet a variety of functional requirements, better electronic protection features
-
Upgraded version compatible with multiple battery types: Sealed, Gel(AGM), Flooded; LiFePO4, Li(NiCoMn)O2 and User-defined. Five Buttons set battery type and browse system's parameters in more simpler way; View/Modify more details parameters need EPEVER accessories (Optional) MT50/MT52, WiFi/BLE adapter via APP, eLOG01, PC software via RS485 interface.
-
Ultra-fast MPPT tracking speed and high tracking efficiency ≥99.5%, Peak conversion efficiency of 98%. Four stages of charging(bulk, absorption, float, Equalization) and electronic protections prolong the lifecycle of batteries. Three color LED Indicators show your PV/Battery/Load working Status more Intuitive, Dual 5VDC USB output interface can charge your DC electronic devices directly.
-
Real-Time energy statistic function, Protection Built-in Against Reverse Polarity, Overcharging, Over-discharging, Overload, Short-circuiting, and Reverse current. It Protect the Battery from being Over-charged by the Solar Modules and Over-discharged by the Loads.
-
MPPT solar charge controller 40Amp Triron4215N(DS2+UCS)can be widely used for different applications such as communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc. Our US engineer team in Chicago could help you about off-grid solar system questions.
About EPEVER MPPT Solar Charge Controller 40A 12V 24V
EPEVER 40Amp MPPT Solar Charge Controller TRIRON4215N ,12V/24V Auto ,Max PV 150V ,Common Negative grounding Product Feature Self-identify and load the drivers of various modules Support the hot swapping function without any damage for each module Modular design for easy combination and replacement Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time High quality components, perfecting system performance, with maximum conversion efficiency of 98%. Ultra-fast tracking speed and great tracking efficiency. Automatic limitation of the charging power and current , Wide MPP operating voltage range. Multiple load work modes Compatible with lead-acid and lithium-ion batteries LCD and indicators to display operating data and status of the system Real-time energy statistics function, Overheating power reduction function. Dual USB 5V/DC output interface to charge electronic devices Parameter Model:Triron4215N System voltage: 12/24V DC auto work Rated charge current: 40A Battery input voltage range:8-32V Max. PV open circuit voltage:150V , Min operating environment temp; 92Vat 25 environment temp Lithium battery: LiFePO4（ 4 series ;8 series）/Li-NiCoMn（3 series ; 6 series ）/User. Lead-acid battery type: Sealed(AGM), Gel, Flooded, Lead-acid User. Max. PV Array Power:520W/12V;1040 W/24V Grounding: Common Negative Working environment temperature:-25℃～+55℃（with LCD）/-30℃～+55℃（without LCD） Storage temperature range: -30℃～+70℃ MPP voltage range: (Vbat+2V)72V Temp. compensation: -3mV/℃/2V Humidity range: ≤95%,(N.C) Terminals/Wire Size: 6AWG(4mm²) LCD backlight time: 60s(default) USB interface: 5VDC/2.2A(total) Package include： 40A MPPT charge controller *1 (DS2 module+UCS module) Temputer sensor *1 Manual (English) *1
