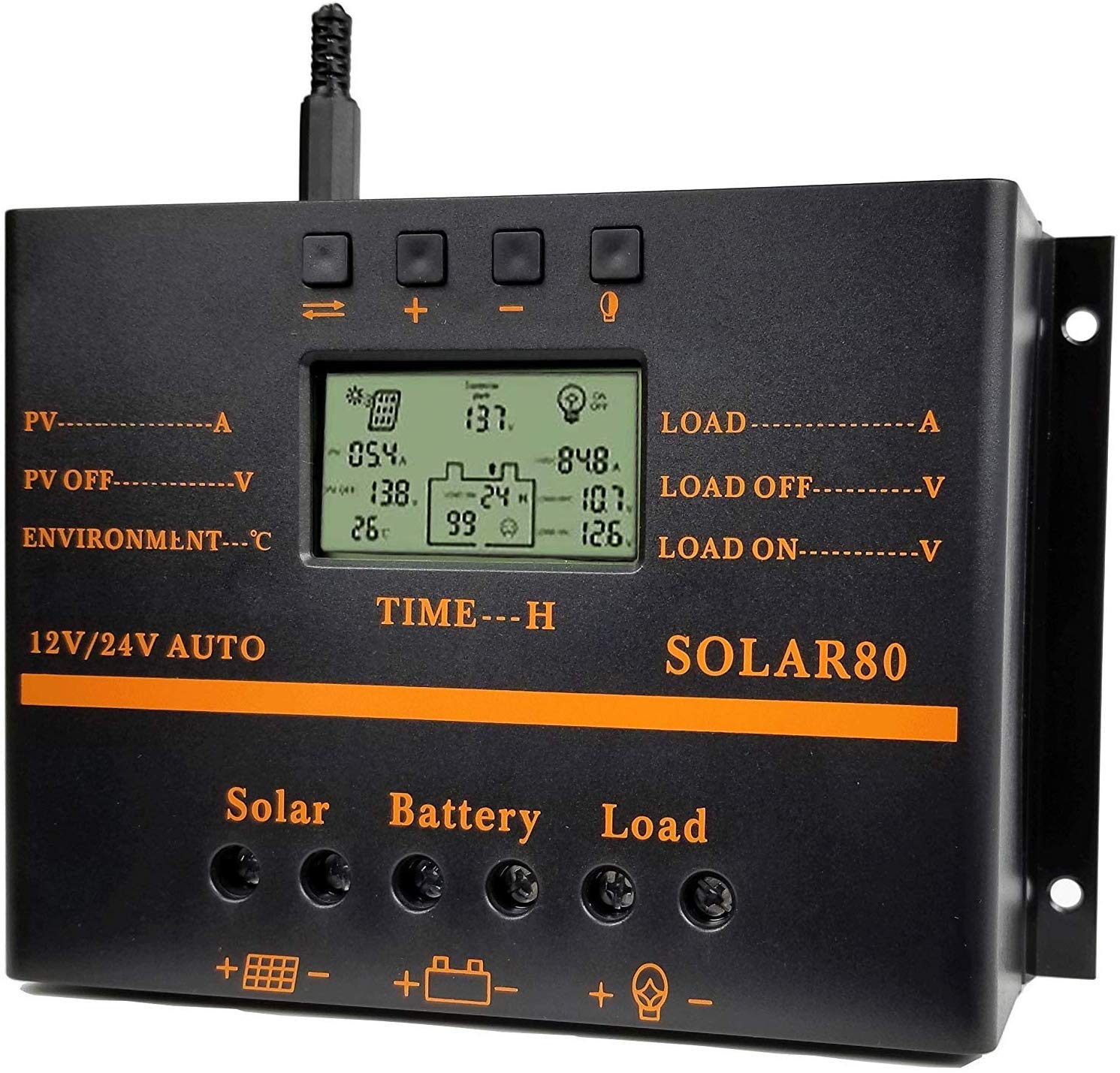

Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charger Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Discharge Regulator for Lighting System
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Solar Charge Controller 80A PWM 12V 24V 1920W Solar Features
-
High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package
-
Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
-
ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime
-
Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable
About Solar Charge Controller 80A PWM 12V 24V 1920W Solar
This controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging. User Manual is available for Download Product Specification: Charge Control Mode: PWM Rated Current : 80A Rated voltage: 12V/24V Automatic Identification Max input Power: 960W(12V), 1920W(24V) Installation Cable Area: 3# AWG (25mm2) Maximum Voltage of solar panel: 48V Float Voltage: 13.8V/27.6V Low Voltage Disconnection: 10.7V/21.4V Low Voltage Re-connection: 12.5V/25V No load loss:
